Heavy reinforced bracket, L200, thickness 2,5 mm, ZL
Code: BBH7020ZL
Heavy reinforced bracket, L200, thickness 2,5 mm, ZL
Code: BBH7020ZL
| Colour | Light grey |
| Width, mm | 40 |
| Model | Profile console |
| Height, mm | 132 |
| Surface protection | Zinc lamellar coating |
| Length, mm | 233 |
| Material | Steel |
| Load bearing capacity, kN | 4.4 |
| Suitable for circuit integrity | Yes |
| Width, mm | 40 |
| Length, mm | 233 |
| Thickness of metal sheet, mm | 2,5 |
| Type | Brackets |
| Material | Zinc-lamellated steel |
Accessories

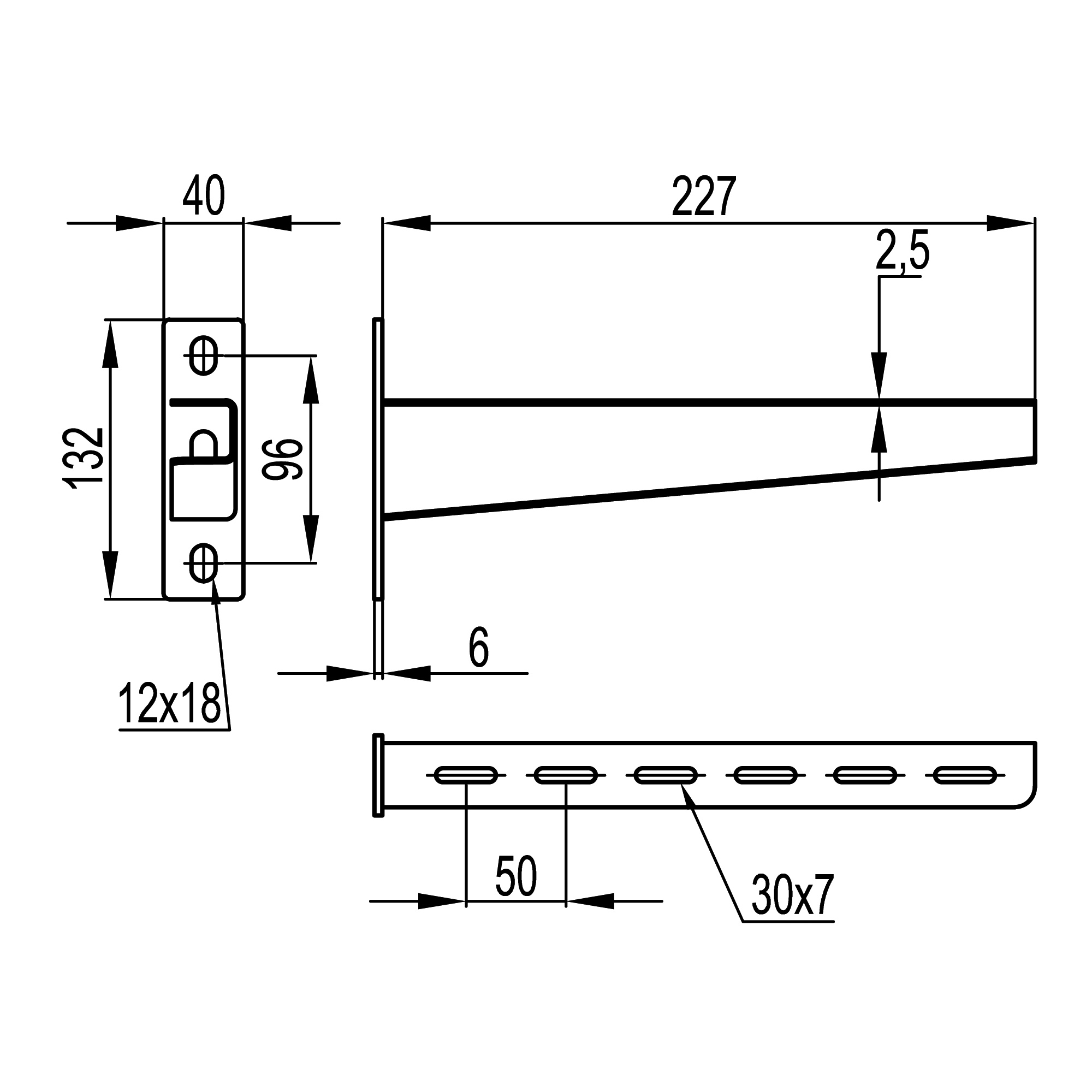

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
