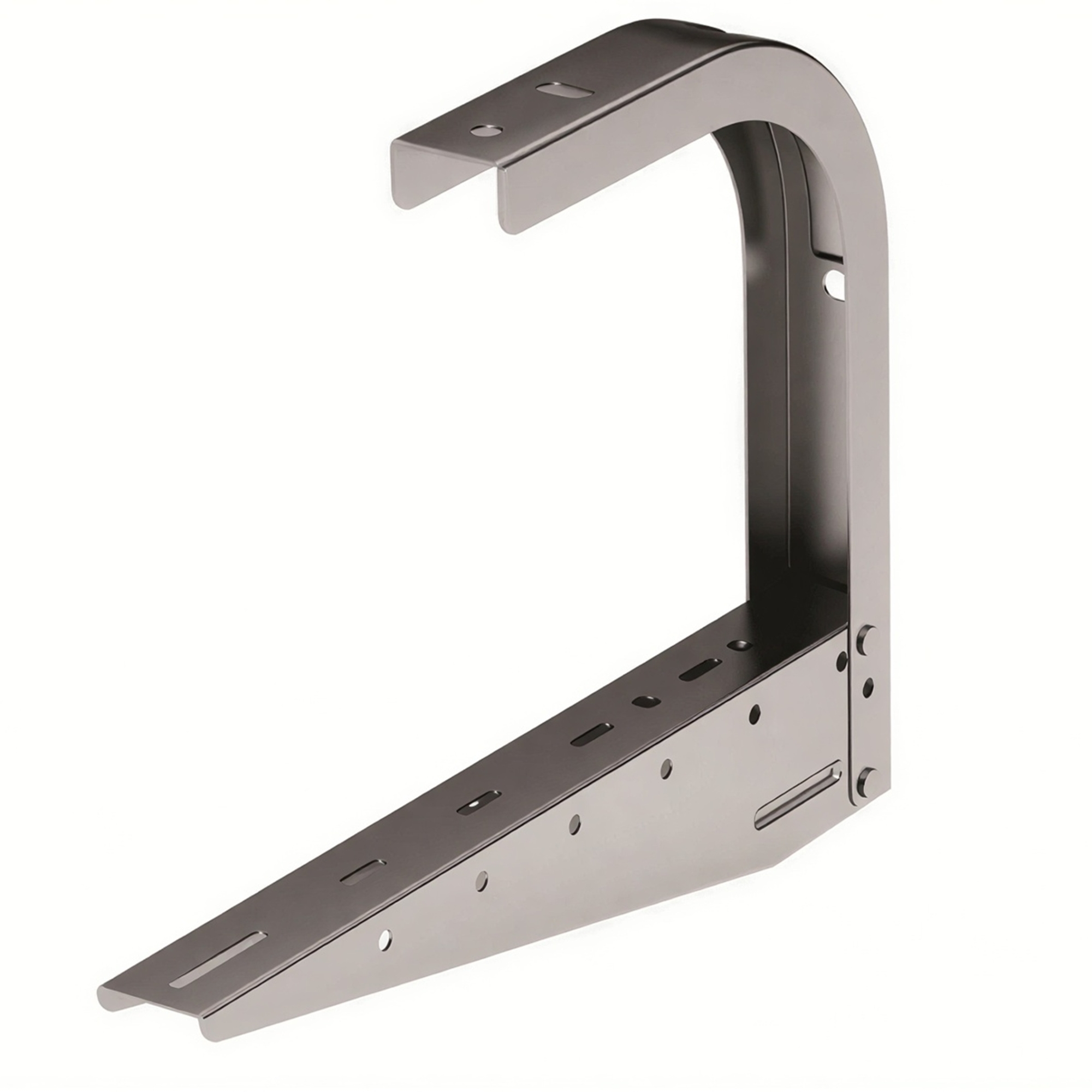

Overhead bracket CS, L200, thickness 1,5 mm, ZL
Code: BBA2020ZL
Overhead bracket CS, L200, thickness 1,5 mm, ZL
Code: BBA2020ZL
| Model | Face out bracket (C-bracket) |
| Material | Steel |
| Load bearing capacity, N | 1176 |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Tray mounting | Screwable |
| Suitable for circuit integrity | No |
| Width, mm | 49 |
| Length, mm | 235 |
| Thickness of metal sheet, mm | 1,5 |
| Type | Brackets |
| Material | Zinc-lamellated steel |

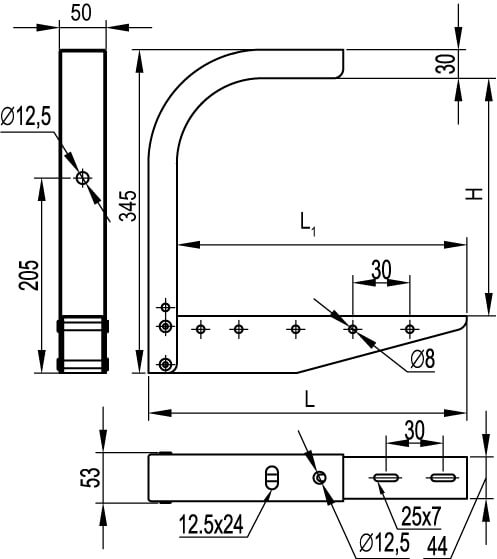

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
