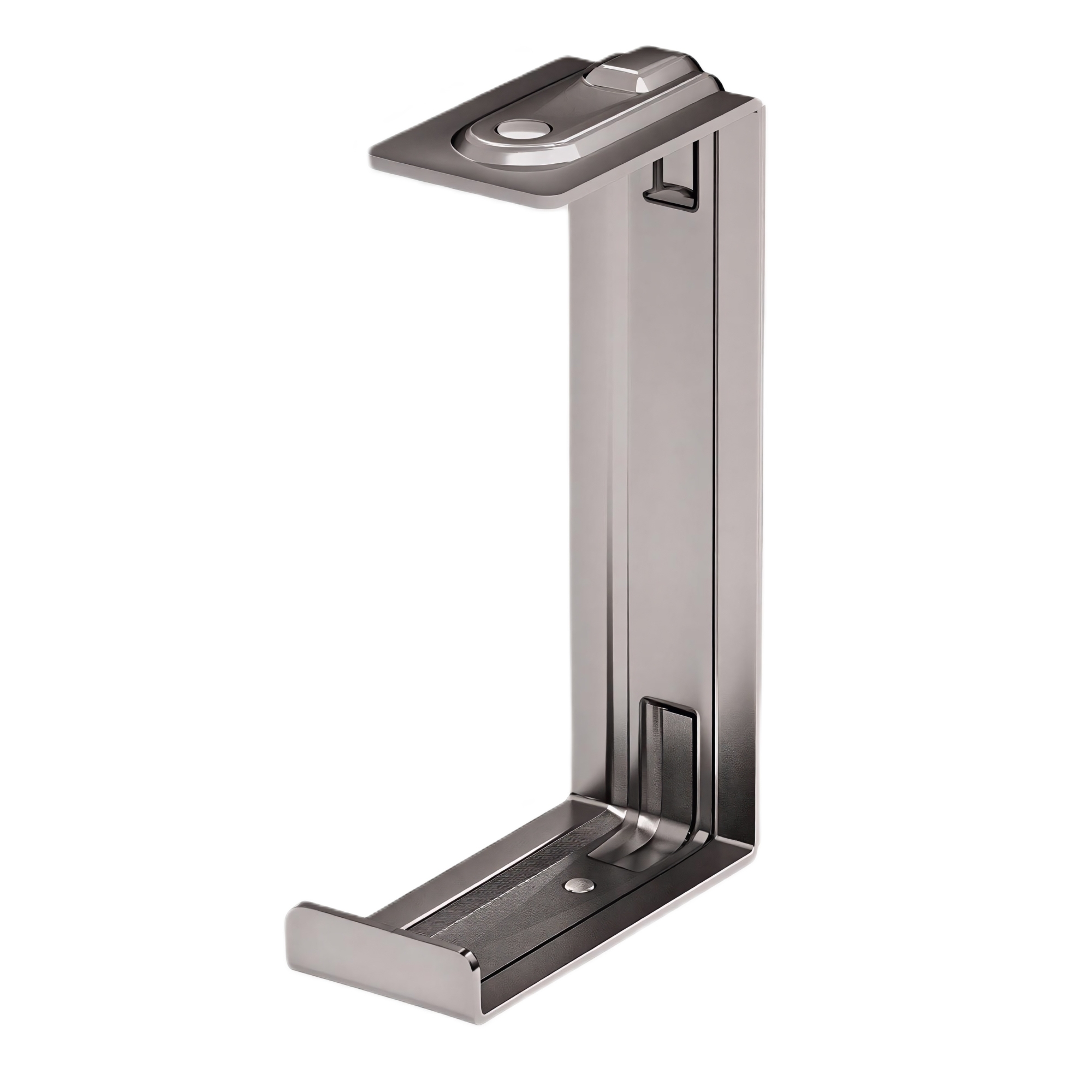

Overhead bracket CS, L150, thickness 3,0 mm, ZL

Code: BBA1015ZL

Overhead bracket CS, L150, thickness 3,0 mm, ZL

Code: BBA1015ZL
Model Face out bracket (C-bracket)
Material Steel
Load bearing capacity, N 539
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable tray Yes
Tray mounting Screwable
Suitable for circuit integrity No
Width, mm 50
Length, mm 167
Thickness of metal sheet, mm 3
Type Brackets
Material Zinc lamellar coating

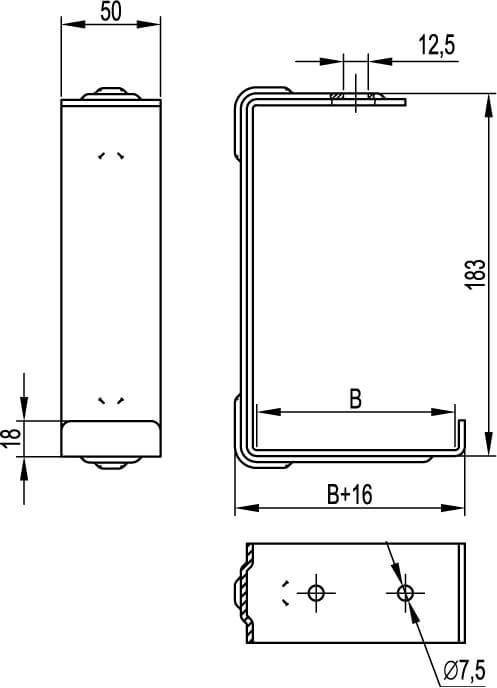

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
