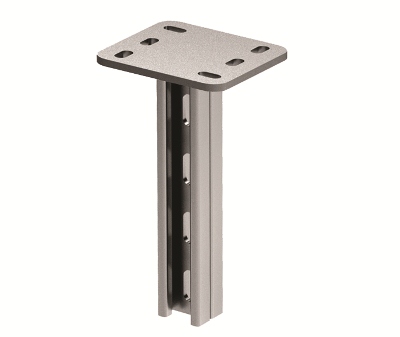

Double vertical bracket support 41х21, L500, thickness 2,5 mm, ZL

Code: BSD2105ZL

Double vertical bracket support 41х21, L500, thickness 2,5 mm, ZL

Code: BSD2105ZL
Colour Light grey
Width, mm 120
Model Pendant bar
Height, mm 120
Surface protection Continuously galvanized zinc-aluminium
Diameter, mm 10.5
Adjustable No
Hinging No
Material quality Other
Length, mm 500
Material Steel
Thread size (metric) 10
Suitable for circuit integrity No
Height, mm 120
Width, mm 120
Length, mm 500
Thickness of metal sheet, mm 2,5
Type Vertical supports and traverses
Material Zinc lamellar coating

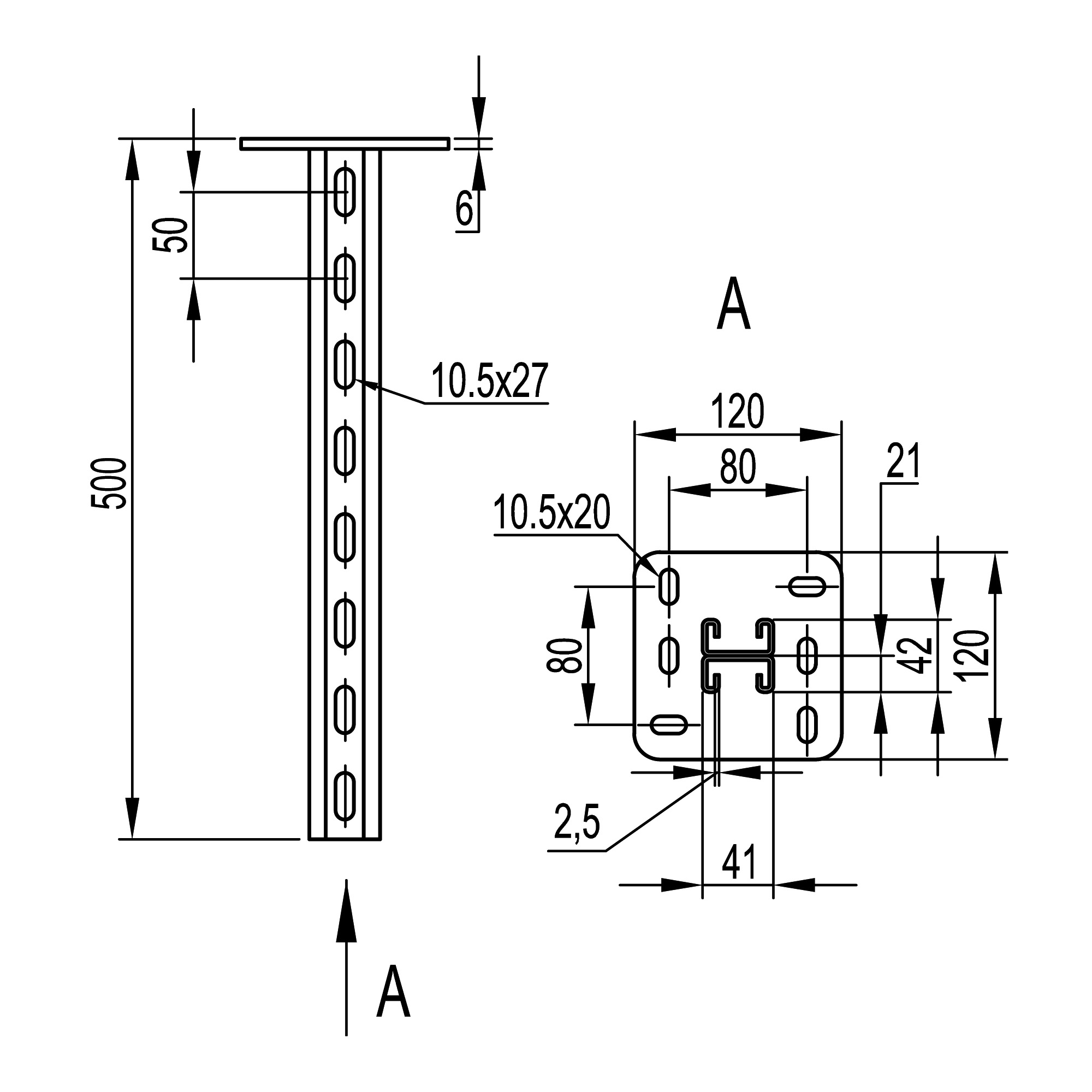

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
