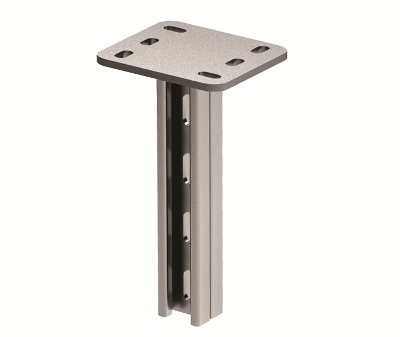

Double vertical bracket support 41х21, L400, thickness 2,5 mm, ZL

Code: BSD2104ZL
Colour Light grey
Width, mm 120
Model Pendant bar
Height, mm 120
Surface protection Continuously galvanized zinc-aluminium
Diameter, mm 10.5
Adjustable No
Hinging No
Material quality Other
Length, mm 400
Material Steel
Thread size metric (M..) 10
Suitable for circuit integrity No
Height, mm 120
Width, mm 120
Length, mm 400
Thickness of metal sheet, mm 2,5
Type Vertical supports and traverses

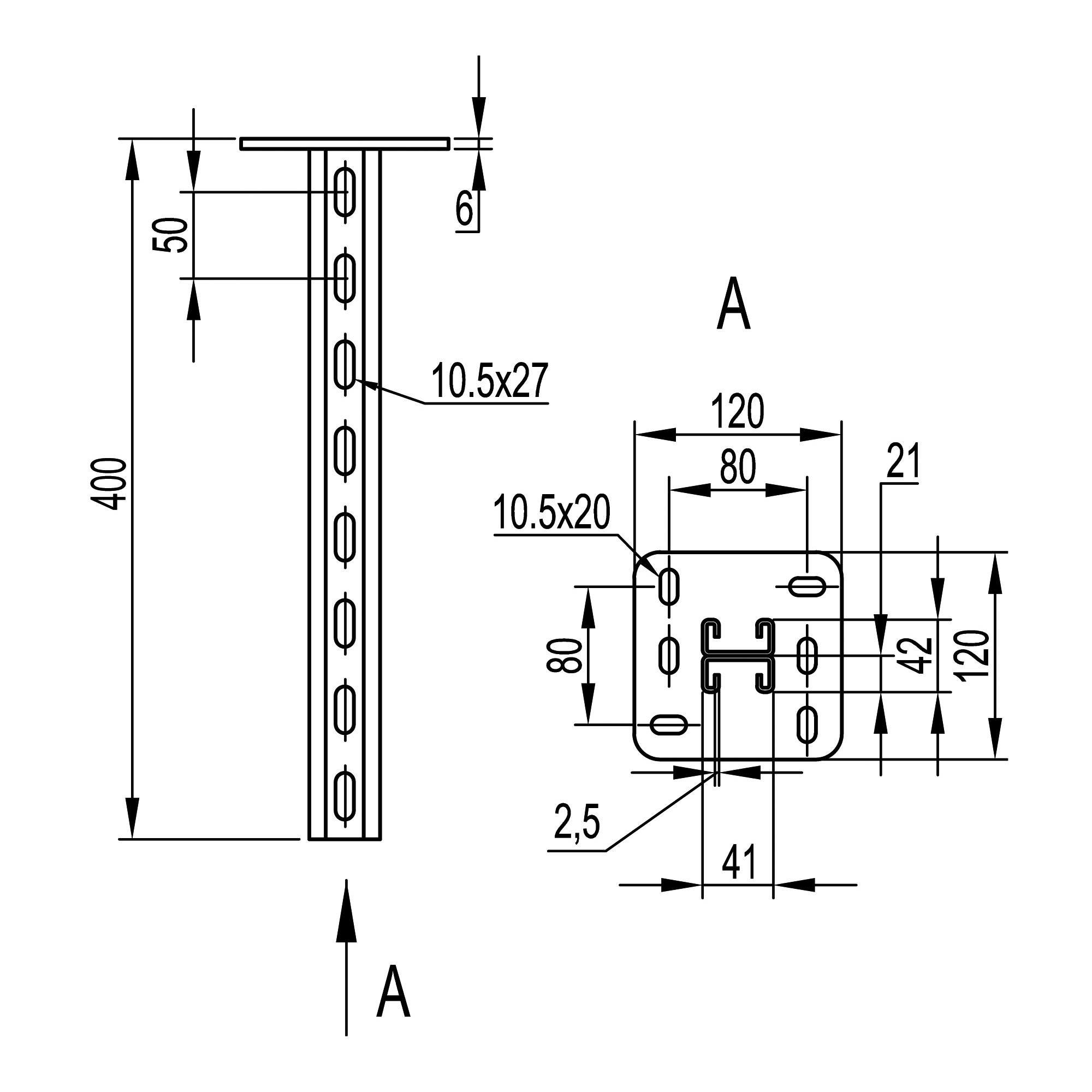

Drawings
