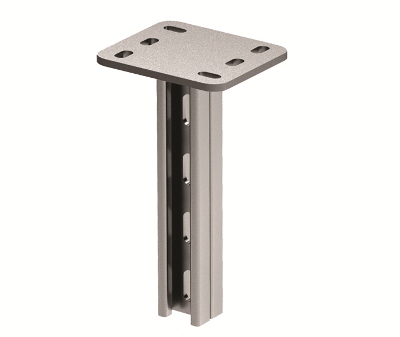

Double vertical bracket support 41х21, L200, thickness 2,5 mm, ZL

Code: BSD2102ZL
Colour Light grey
Width, mm 120
Model Pendant bar
Height, mm 120
Surface protection Continuously galvanized zinc-aluminium
Diameter, mm 10.5
Adjustable No
Hinging No
Material quality Other
Length, mm 200
Material Steel
Thread size metric (M..) 10
Suitable for circuit integrity No
Height, mm 120
Width, mm 120
Length, mm 200
Thickness of metal sheet, mm 2,5
Type Vertical supports and traverses

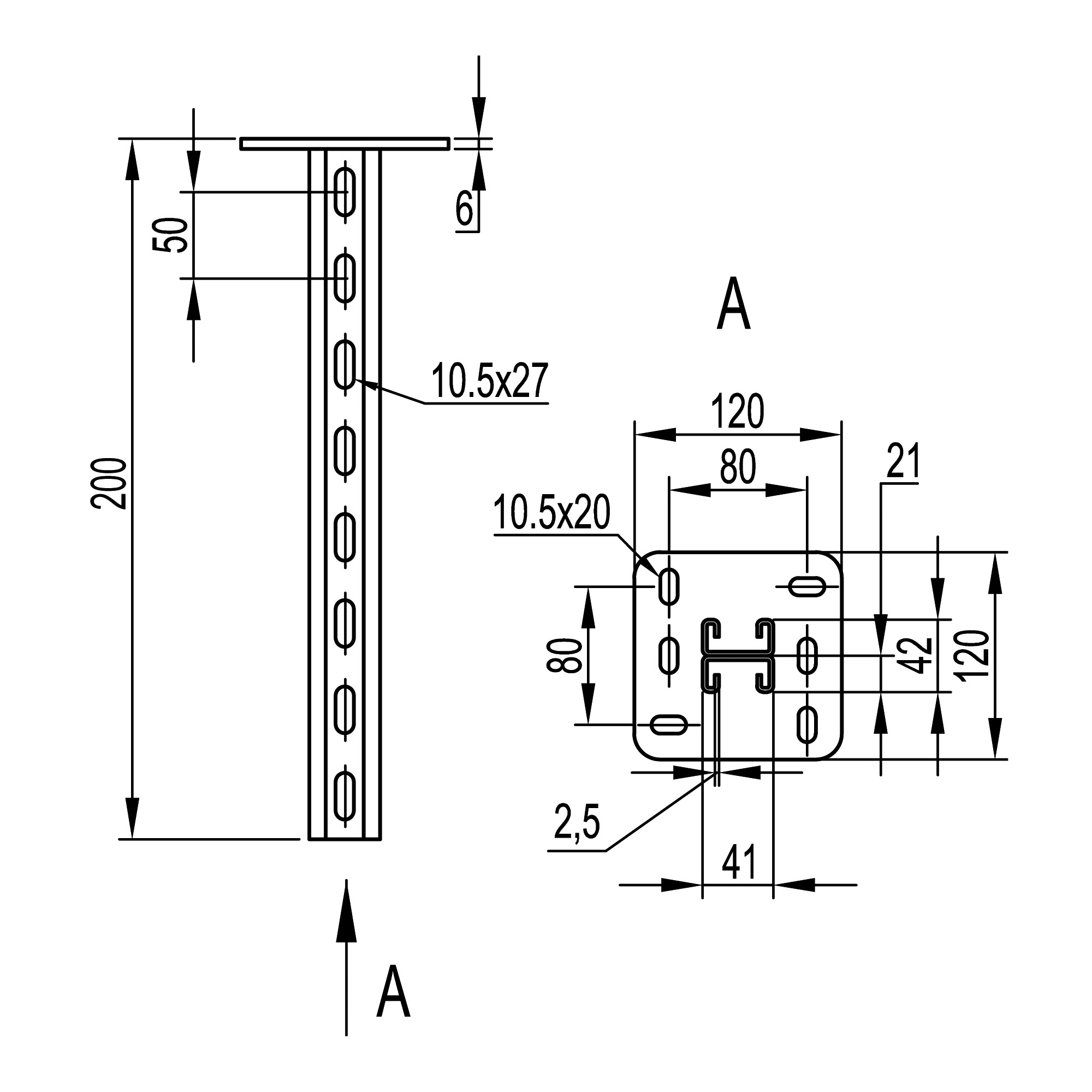

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
