C-profile 41x21, L400 thickness 2,0 mm, ZL

Code: BPV2104ZL

C-profile 41x21, L400 thickness 2,0 mm, ZL

Code: BPV2104ZL
Model Singular profile
Height, mm 21
Surface protection Continuously galvanized zinc-aluminium
Material thickness, mm 2
Length, mm 400
Material Steel
Type of perforation Back perforated
Profile shape C-profile
Slit width, mm 10.5
Hole width, mm 10.5
Suitable for circuit integrity Yes
Colour Light grey
Material Zinc lamellar coating

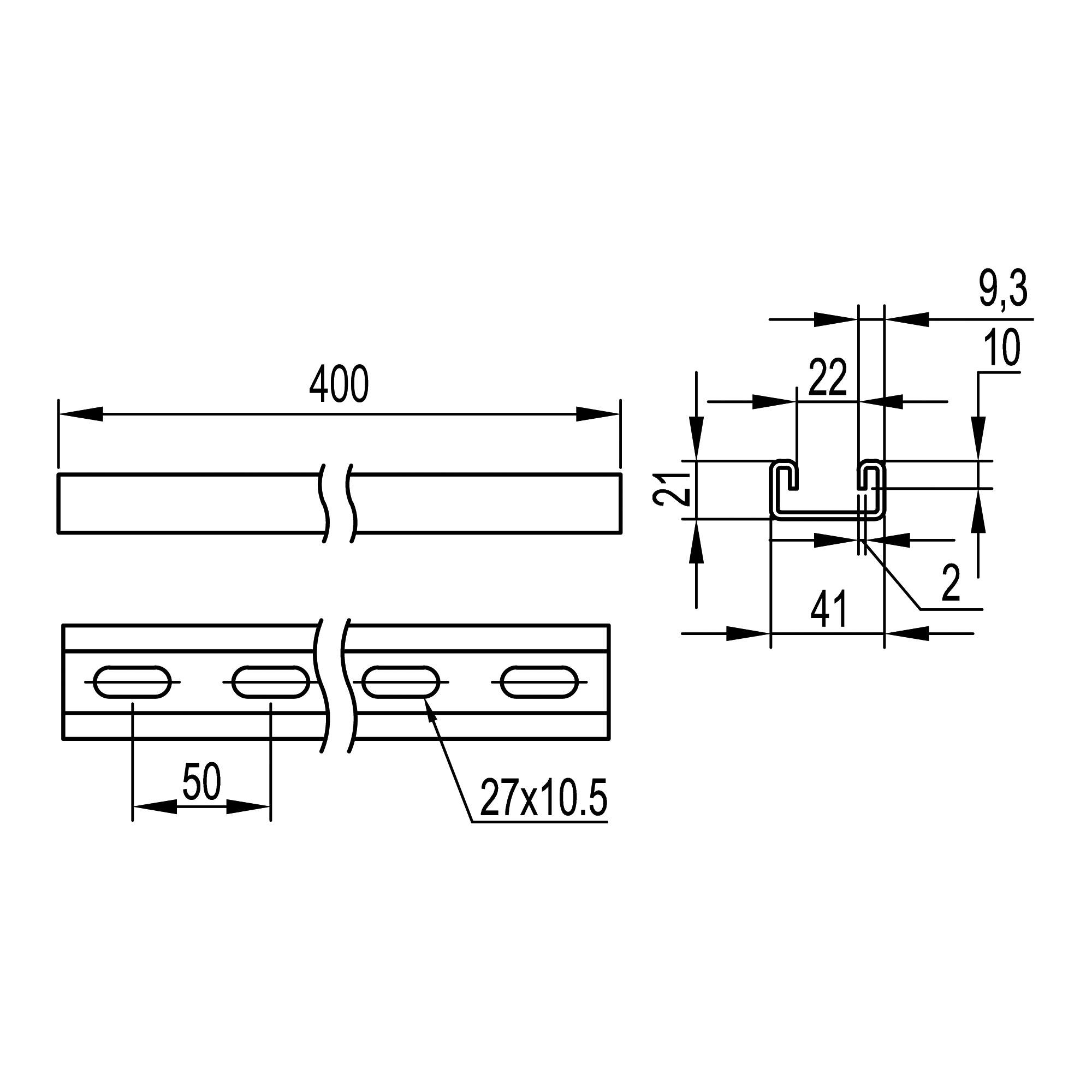

Drawings
