Heater in plastic case 150 W, 110…250 V
Code:
R5STHT150
Heater in plastic case 150 W, 110…250 V
Code:
R5STHT150
| Width, mm | 70 |
| Height, mm | 220 |
| Depth, mm | 63 |
| With room temperature controller | No |
| With fan | No |
| Degree of protection (IP) | IP20 |
| Rated power, W | 150 |
| Operating voltage at AC 50 Hz, V | 110...250 |
| Operating voltage at AC 60 Hz, V | 110...250 |
| Operating voltage at DC, V | 110...250 |
| Voltage type | AC/DC |
| Mounting method | DIN-rail (DRA) |
| With digital indication | No |
| With hygrostat | No |
| Heating capacity, W | 150 |
| Rated operating voltage V, ~, Hz | 110…250 V, 1 p, 50/60 Hz; 110…250 V, DC |
| With blower | No |
| With plastic protective case | Yes |
| External dimensions of heater (W x H x D), mm | 70 x 220 x 63 |
| Operating temperature range, ˚C | –45...+70 |
| Storage temperature range, ˚C | –45...+80 |
| Heating element type | PTC |
| Degree of protection | IP20 |
| Weight, kg | 0.66 |
| Product type | Heater |
Accessories
The accompanying goods

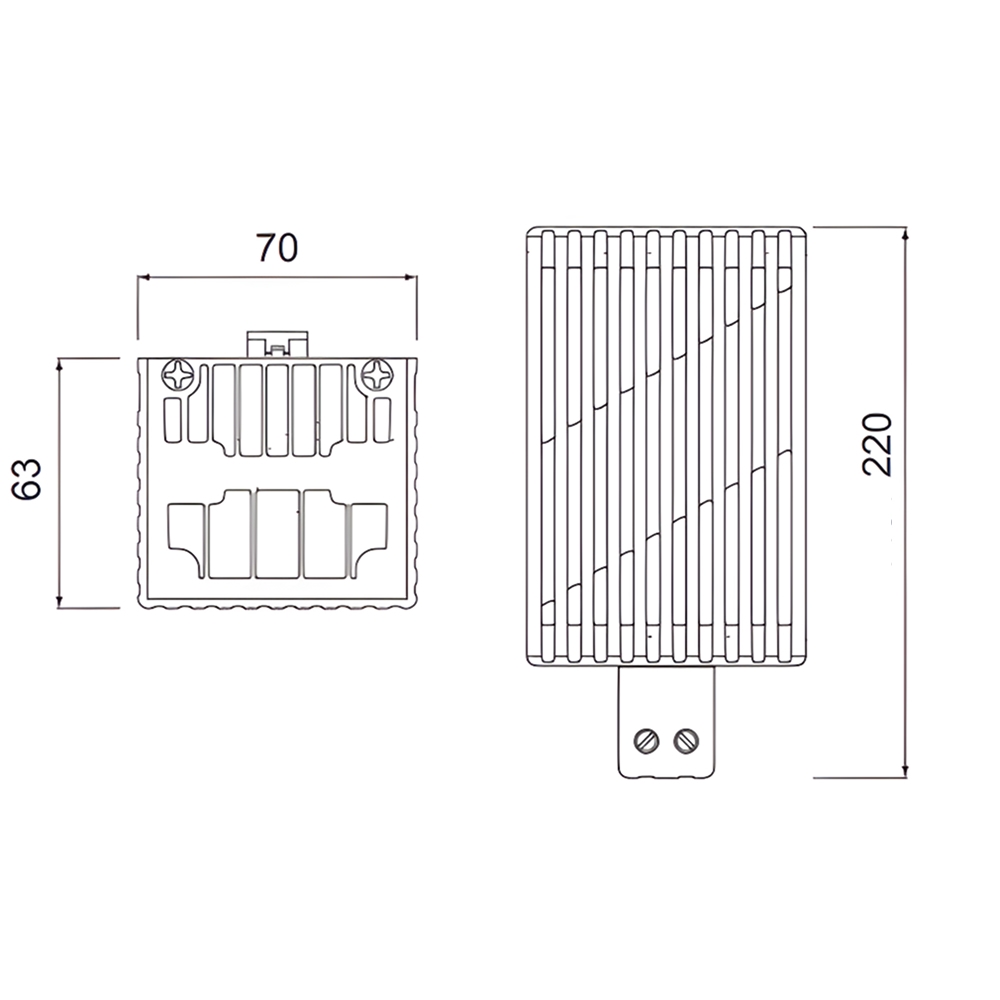

Drawings
| Seria | Name | DWG (dynamic.) | Eplan |
|---|---|---|---|
|
