Heater in aluminum case 100 W, 110…250 V
Code:
R5SHT100
Heater in aluminum case 100 W, 110…250 V
Code:
R5SHT100
| Width, mm | 80 |
| Height, mm | 110 |
| Depth, mm | 90 |
| With room temperature controller | No |
| With fan | No |
| Degree of protection (IP) | IP20 |
| Rated power, W | 100 |
| Operating voltage at AC 50 Hz, V | 110...250 |
| Operating voltage at AC 60 Hz, V | 110...250 |
| Operating voltage at DC, V | 110...250 |
| Voltage type | AC/DC |
| Mounting method | DIN-rail (DRA) |
| With digital indication | No |
| With hygrostat | No |
| Product type | Heater |
| Heating capacity | 100 W |
| Rated voltage | 110…250 V |
| Voltage type | AC/DC |
| With blower | No |
| With plastic protective case | No |

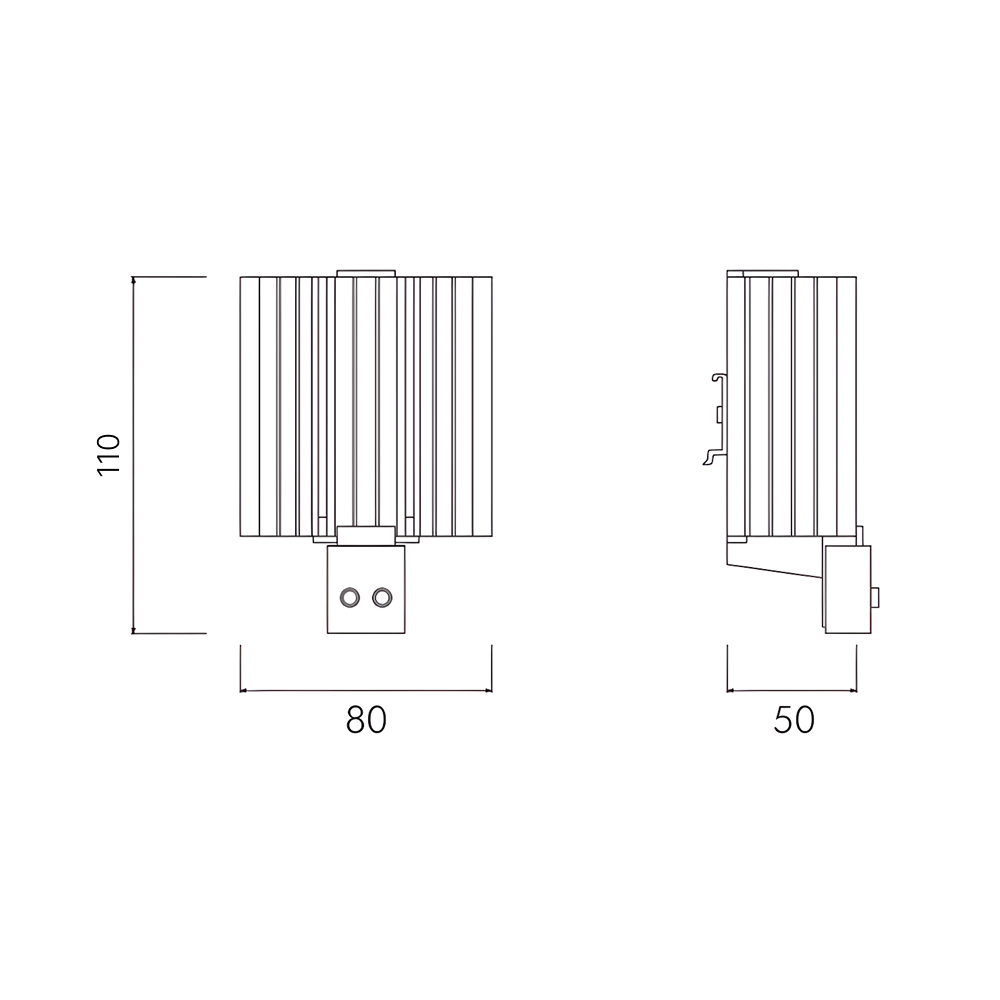

| External dimensions of heater | 80 x 110 x 90 mm |
| Operating temperature range | –45...+70 ˚C |
| Storage temperature range | –45...+80 ˚C |
| Heating element type | Resistor |
| Degree of protection | IP20 |
| Weight | 0,5 kg |
