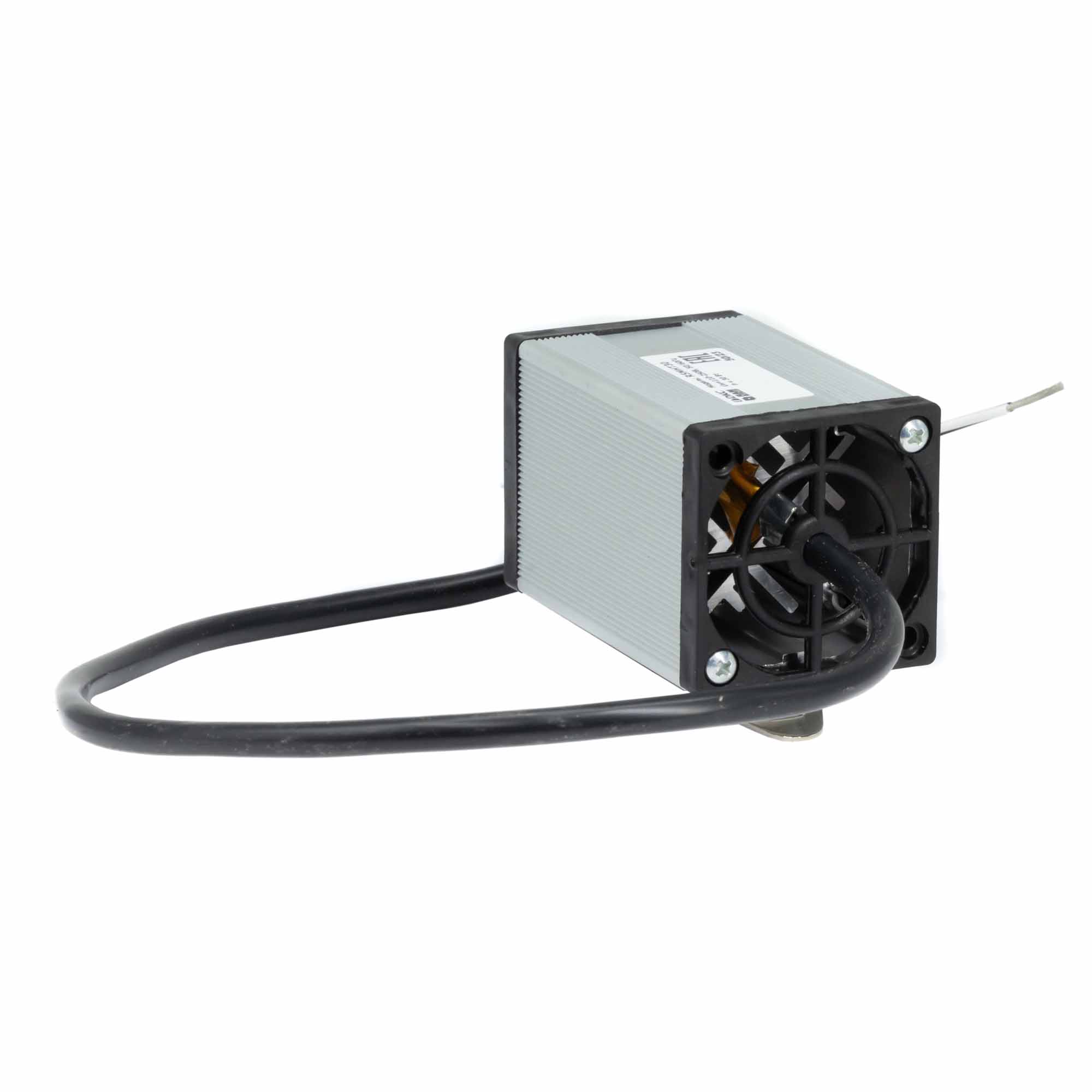

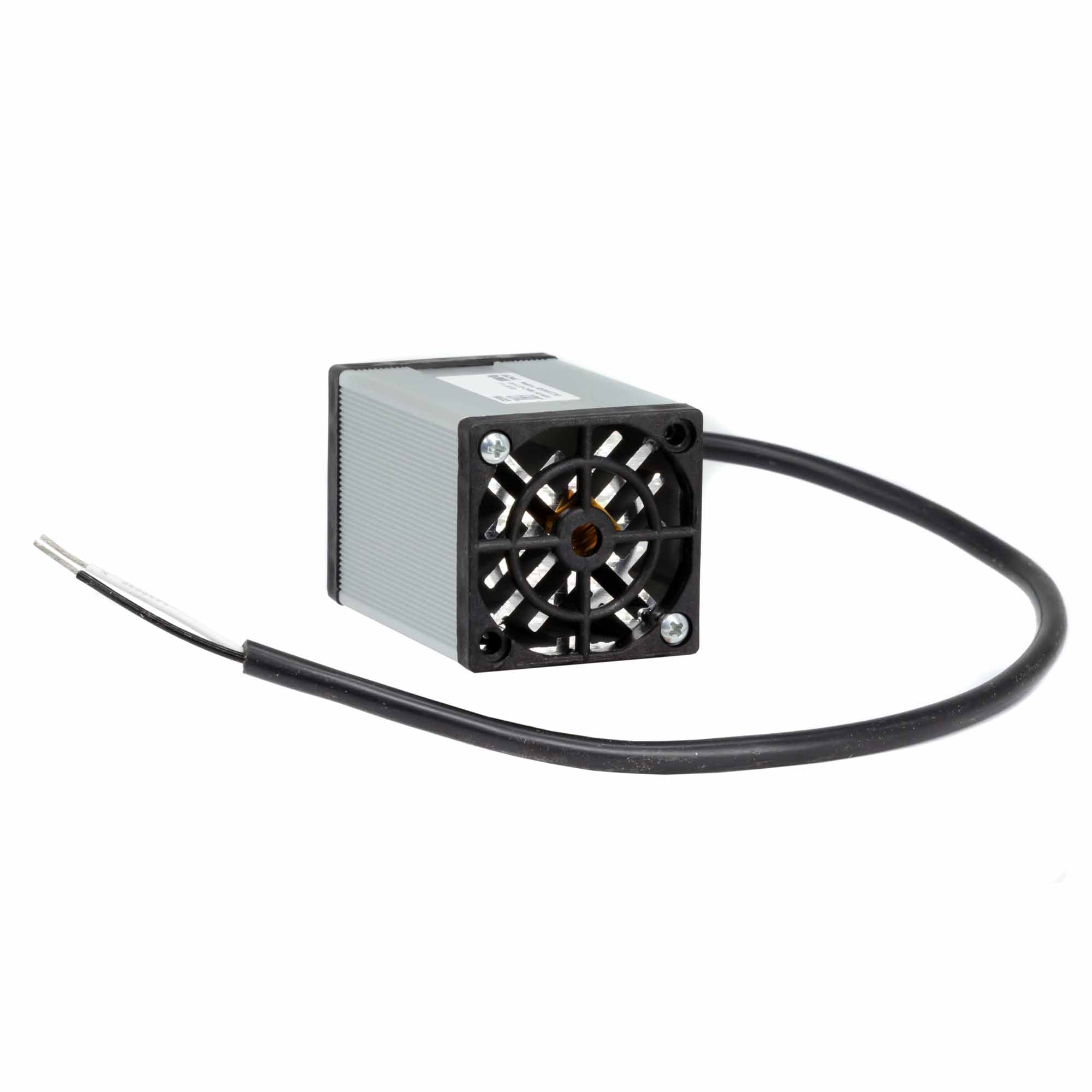

Compact heater 30 W, connecting cable, 110…250 V
Code:
R5MHT30
Compact heater 30 W, connecting cable, 110…250 V
Code:
R5MHT30
| Width, mm | 40 |
| Height, mm | 65 |
| Depth, mm | 40 |
| With room temperature controller | No |
| With fan | No |
| Degree of protection (IP) | IP20 |
| Rated power, W | 30 |
| Operating voltage at AC 50 Hz, V | 110...250 |
| Operating voltage at AC 60 Hz, V | 110...250 |
| Operating voltage at DC, V | 110...250 |
| Voltage type | AC/DC |
| Mounting method | DIN-rail (DRA) |
| With digital indication | No |
| With hygrostat | No |
| Product type | Heater |
| Heating capacity | 30 W |
| Rated voltage | 110…250 V |
| Voltage type | AC/DC |
| With blower | No |
| With plastic protective case | No |

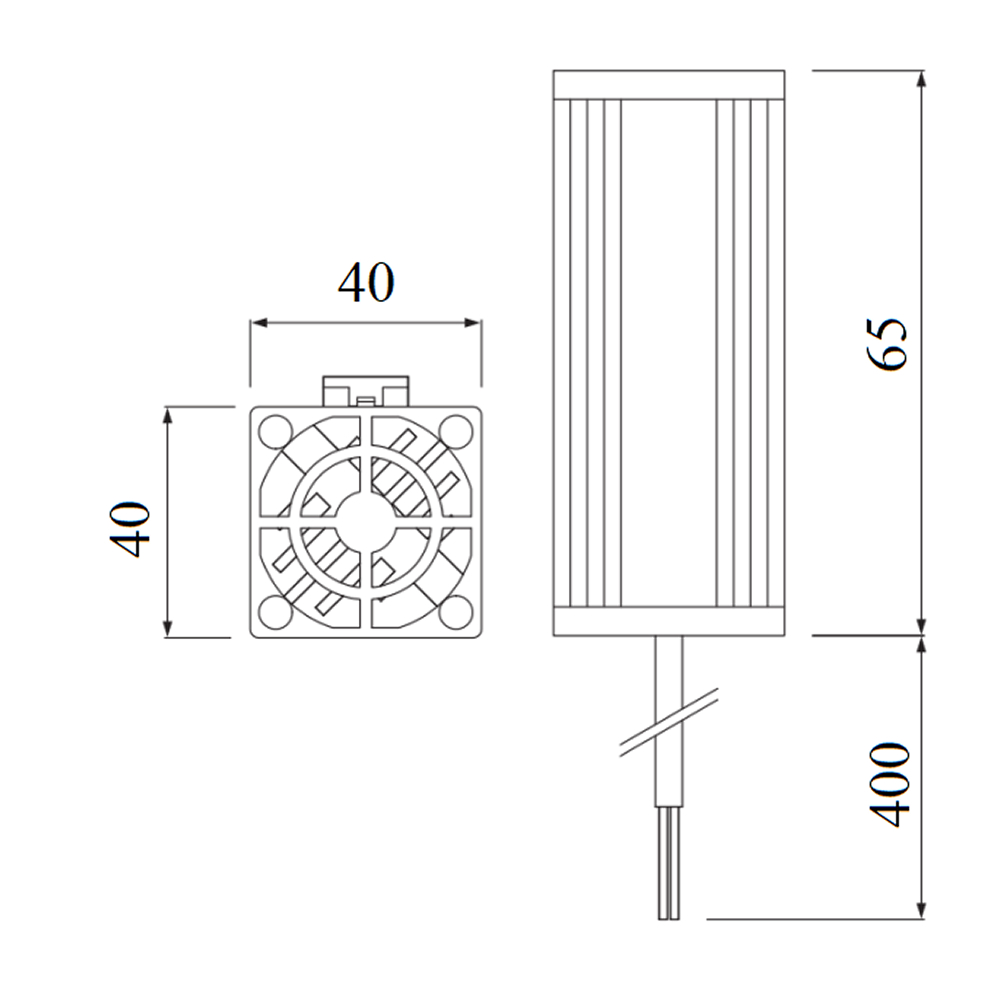

| External dimensions of heater | 40 x 65 x 40 mm |
| Operating temperature range | –45...+70 ˚C |
| Storage temperature range | –45...+80 ˚C |
| Heating element type | PTC |
| Degree of protection | IP20 |
| Weight | 0,13 kg |
