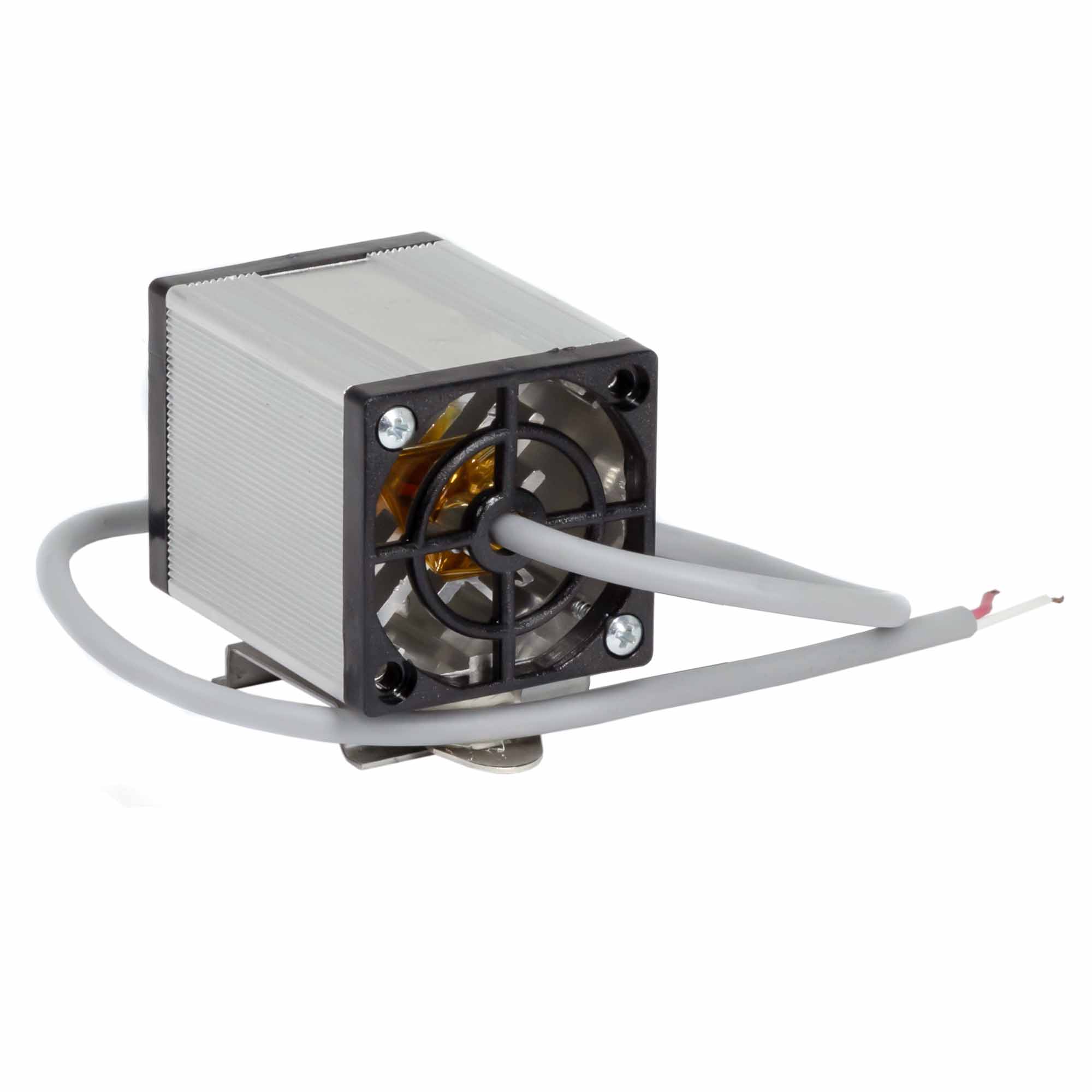

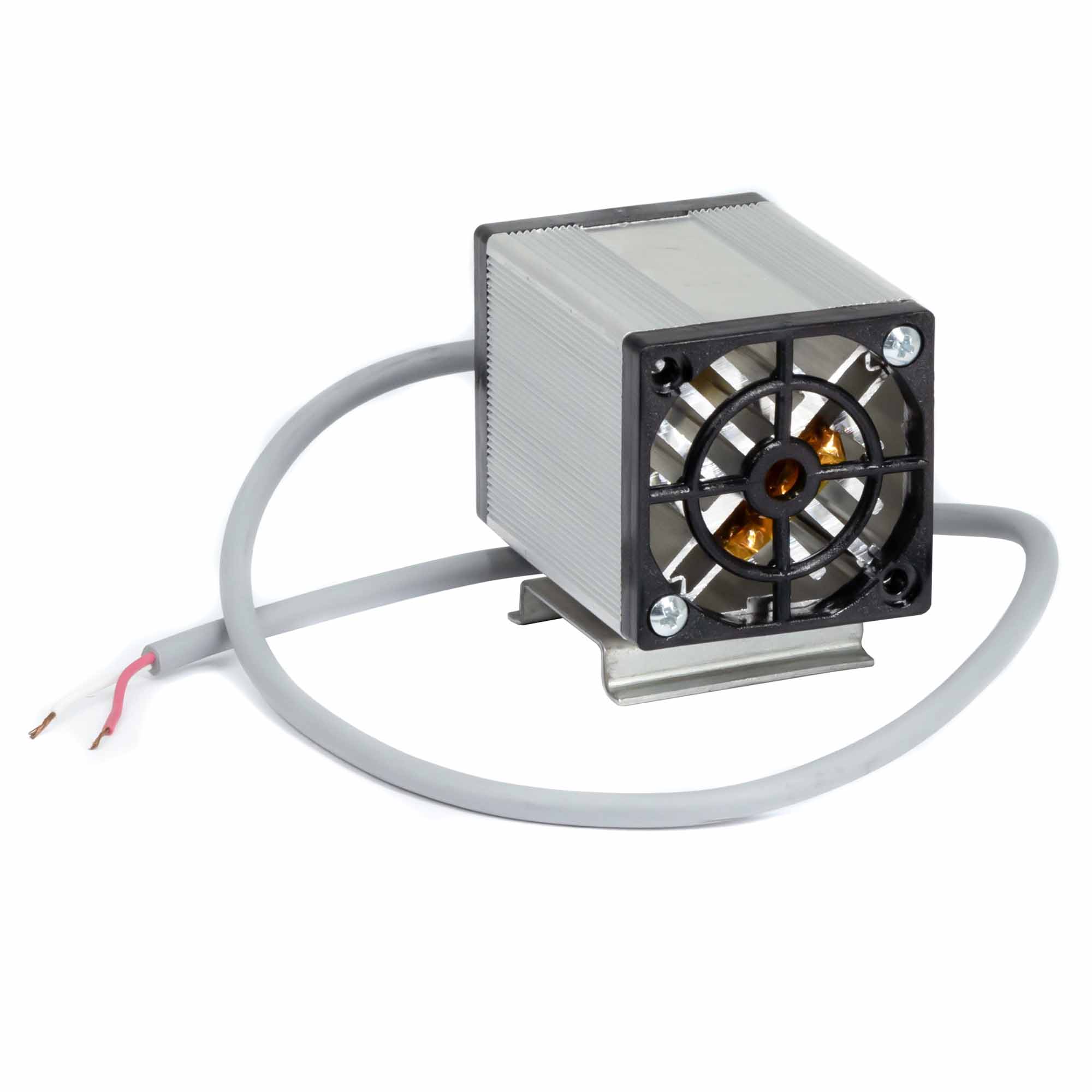

Compact heater 15 W, connecting cable, 110…250 V
Code:
R5MHT15
Compact heater 15 W, connecting cable, 110…250 V
Code:
R5MHT15
Width, mm | 40 |
Height, mm | 55 |
Depth, mm | 40 |
With room temperature controller | No |
With fan | No |
Degree of protection (IP) | IP20 |
Rated power, W | 15 |
Operating voltage at AC 50 Hz, V | 110...250 |
Operating voltage at AC 60 Hz, V | 110...250 |
Operating voltage at DC, V | 110...250 |
Voltage type | AC/DC |
Mounting method | DIN-rail (DRA) |
With digital indication | No |
With hygrostat | No |
Heating capacity, W | 15 |
Rated operating voltage V, ~, Hz | 110…250 V, 1 p, 50/60 Hz; 110…250 V, DC |
With blower | No |
With plastic protective case | No |

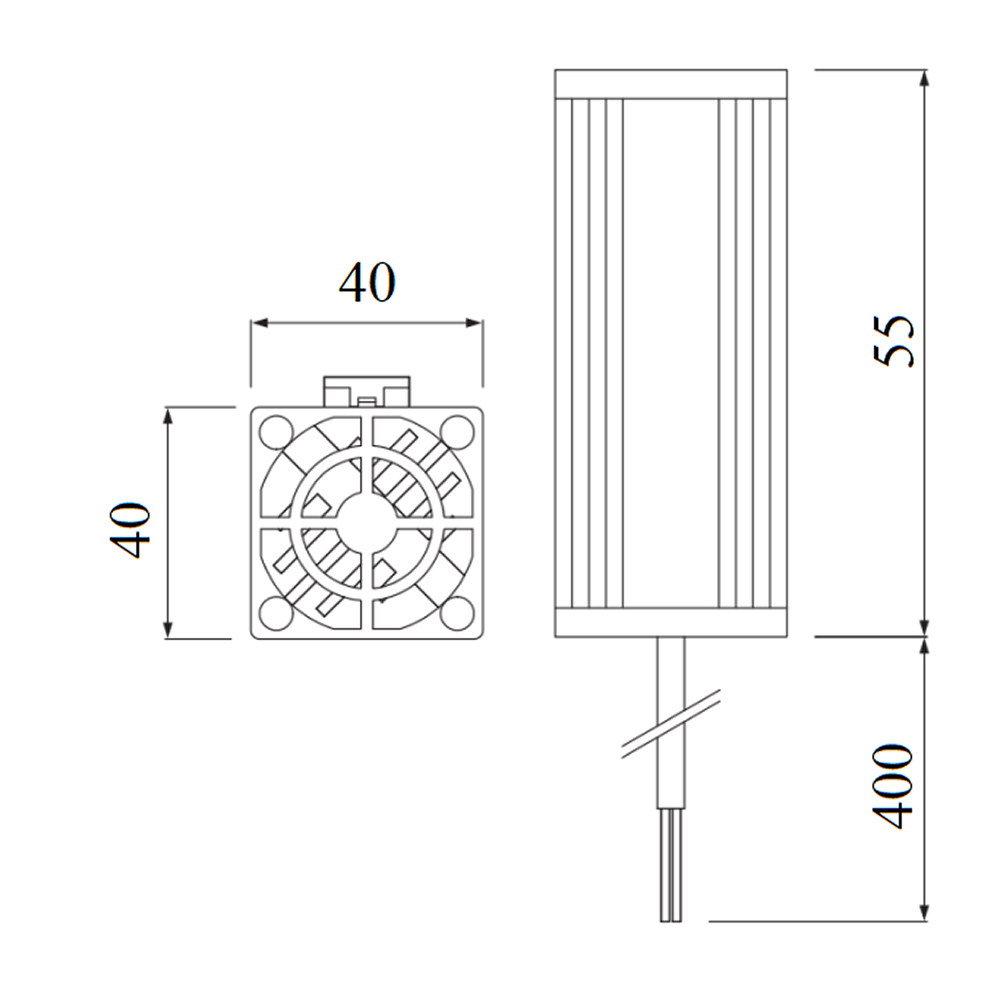

External dimensions of heater (W x H x D), mm | 40 x 55 x 40 |
Operating temperature range, ˚C | –45...+70 |
Storage temperature range, ˚C | –45...+80 |
Heating element type | PTC |
Degree of protection | IP20 |
Weight, kg | 0.11 |
Comment | Compact size, connection cable |
Product type | Heater |
