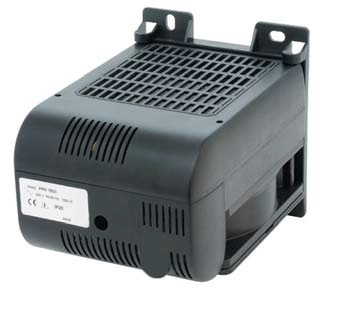

Heater in plastic case with blower 1500 W, 230 V
Code:
R5FPH1500
Heater in plastic case with blower 1500 W, 230 V
Code:
R5FPH1500
Width, mm | 120 |
Height, mm | 95 |
Depth, mm | 160 |
With room temperature controller | No |
With fan | Yes |
Degree of protection (IP) | IP20 |
Rated power, W | 1500 |
Operating voltage at AC 50 Hz, V | 230...230 |
Operating voltage at AC 60 Hz, V | 230...230 |
Voltage type | AC |
With digital indication | No |
With hygrostat | No |
Heating capacity, W | 1500 |
Rated operating voltage V, ~, Hz | 230 V, 1 p, 50/60 Hz |
With blower | Yes |
With plastic protective case | Yes |
External dimensions of heater (W x H x D), mm | 120 x 95 x 160 |
Operating temperature range, ˚C | –40...+70 |
Storage temperature range, ˚C | –45...+80 |
Heating element type | PTC |
Degree of protection | IP20 |
Weight, kg | 1.2 |
Product type | Heater |
Accessories
The accompanying goods

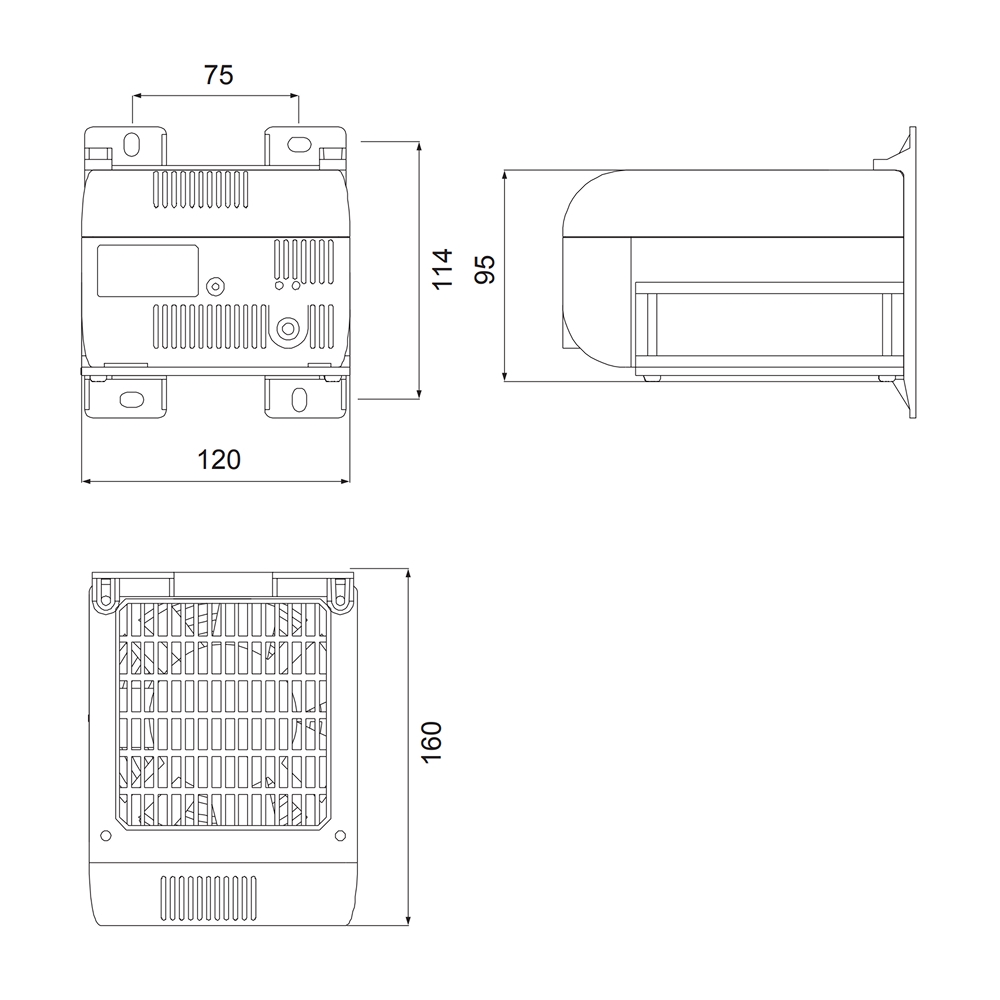

Drawings
Seria | Name | DWG (dynamic.) | Eplan | DWG | STEP |
---|---|---|---|---|---|
