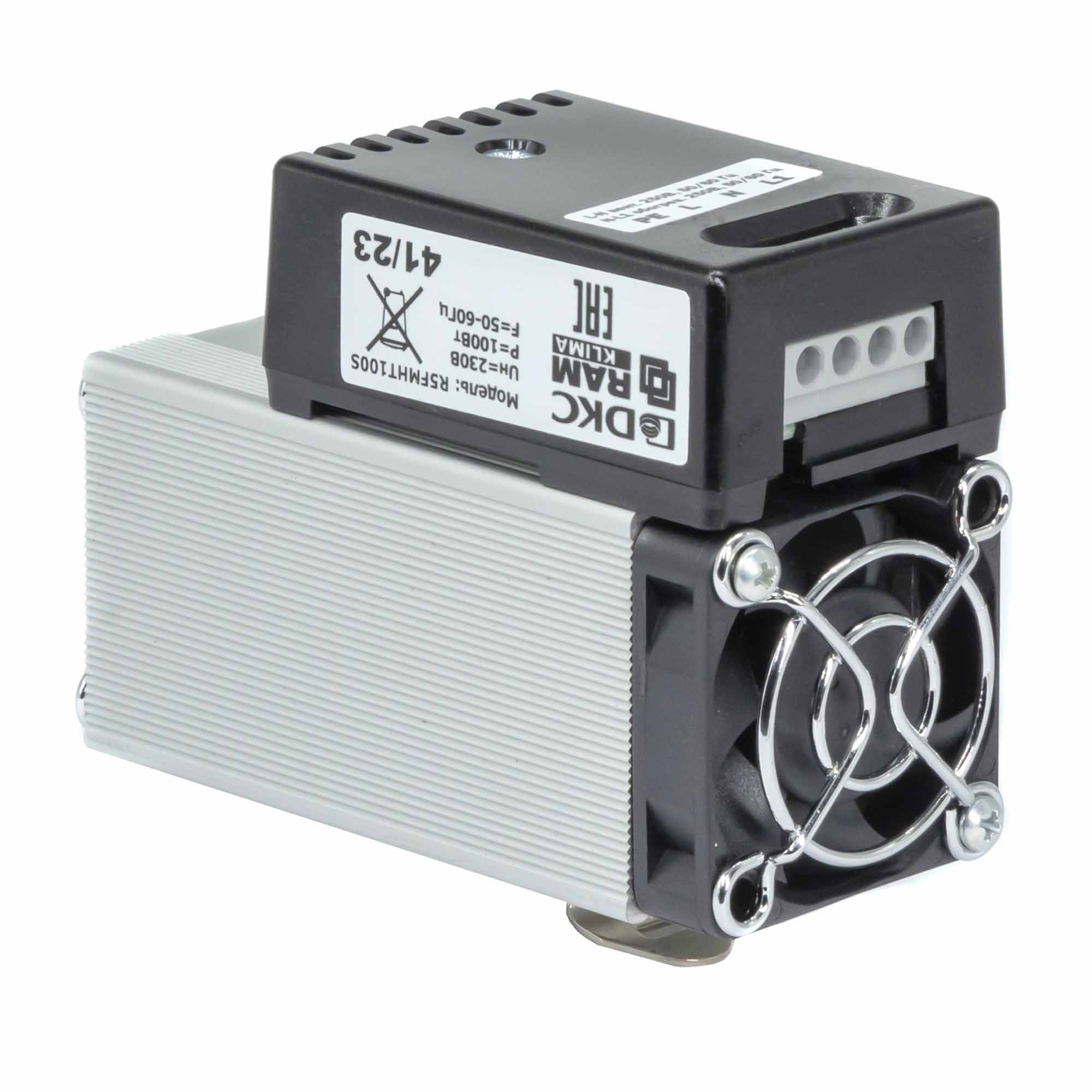

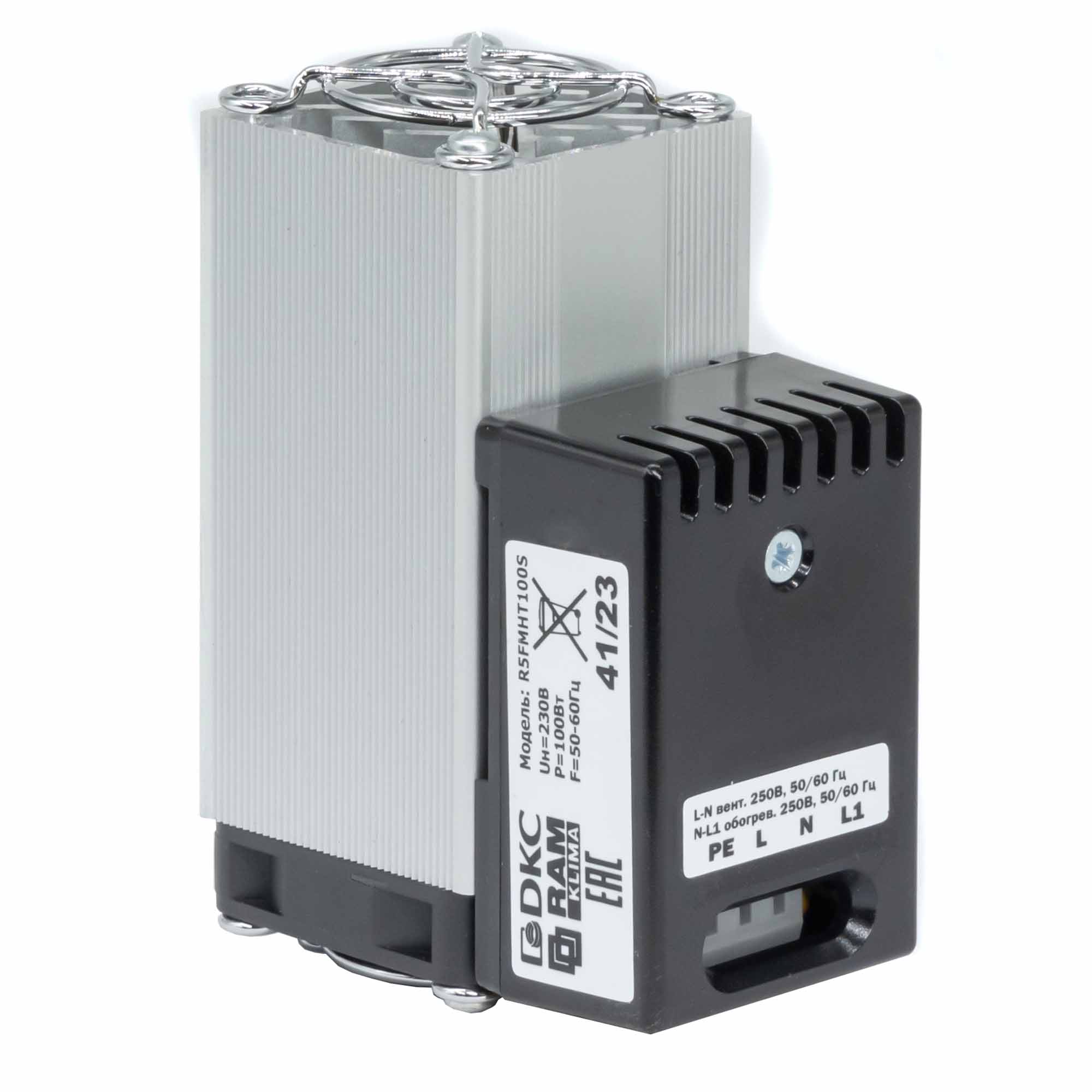

Compact heater with blower 100 W, 230 V

Code: R5FMHT100S

Compact heater with blower 100 W, 230 V

Code: R5FMHT100S
Width, mm 41
Height, mm 97
Depth, mm 66
With room temperature controller Нет
With fan Да
Degree of protection (IP) IP20
Rated power, W 100
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
With digital indication Нет
With hygrostat Нет
Heating capacity, W 100
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
With blower Yes
With plastic protective case No
External dimensions of heater (W x H x D), mm 41 x 97 x 66
Operating temperature range, ˚C –20...+70
Storage temperature range, ˚C –45...+80
Heating element type Resistor
Degree of protection IP20
Weight, kg 0.2
Comment Compact size
Product type Heater
Accessories

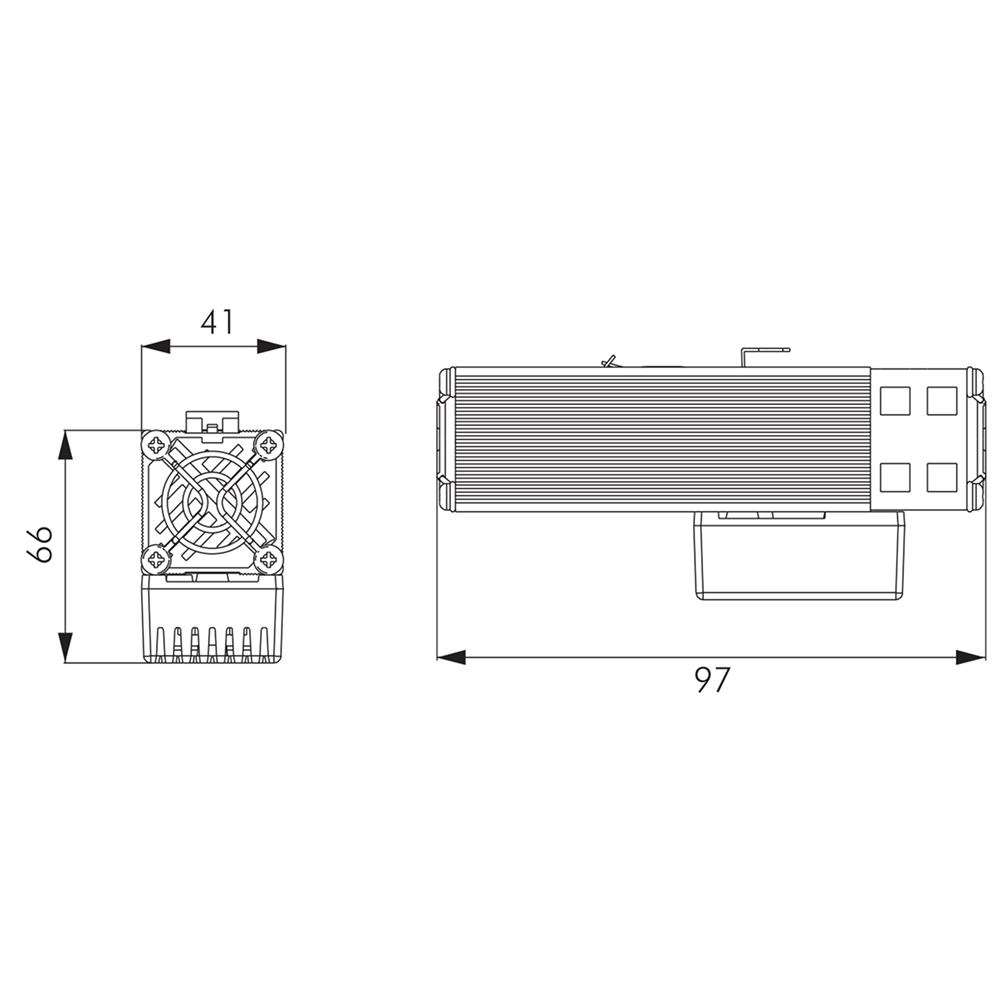

Drawings
Seria Name DWG (dynamic.) Eplan
