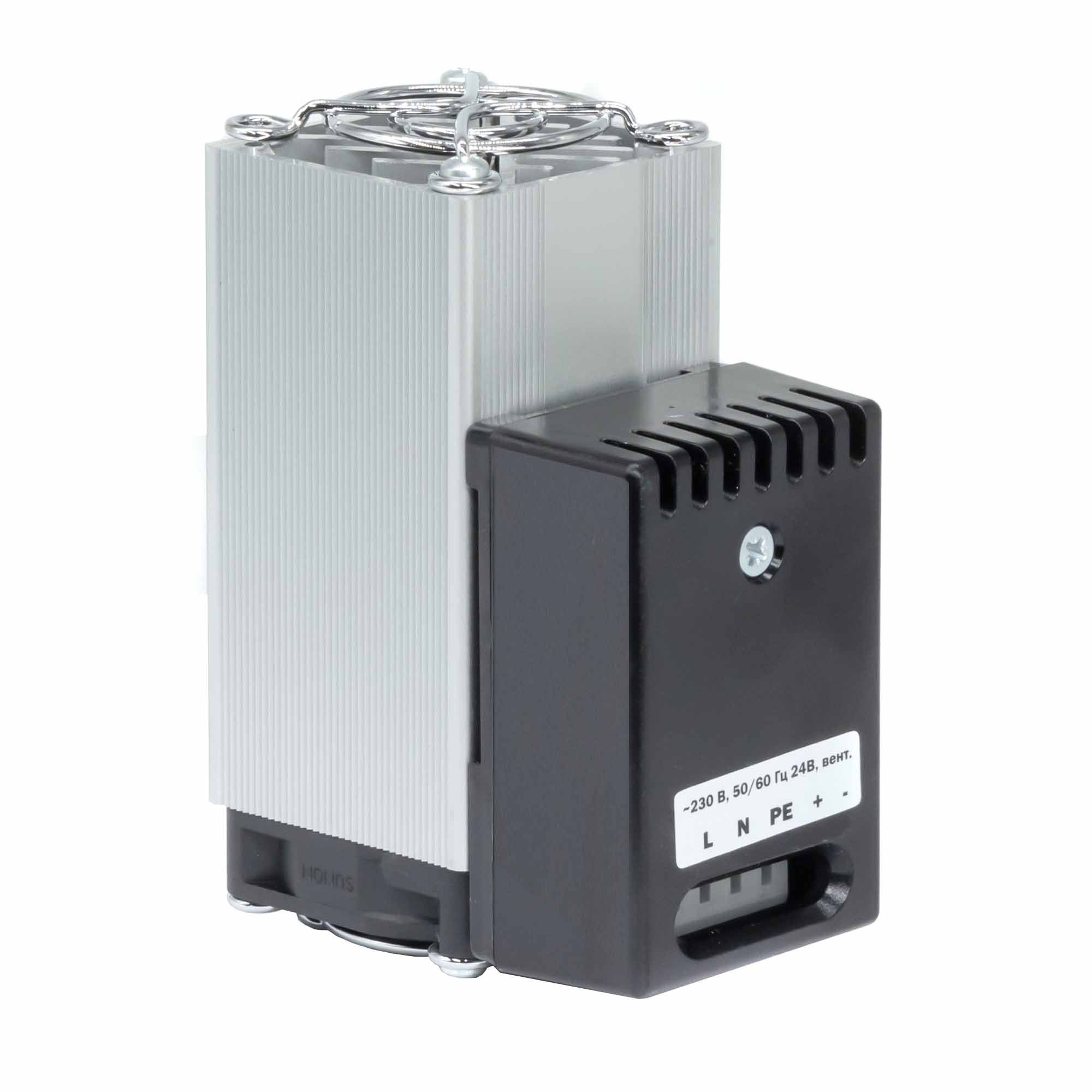

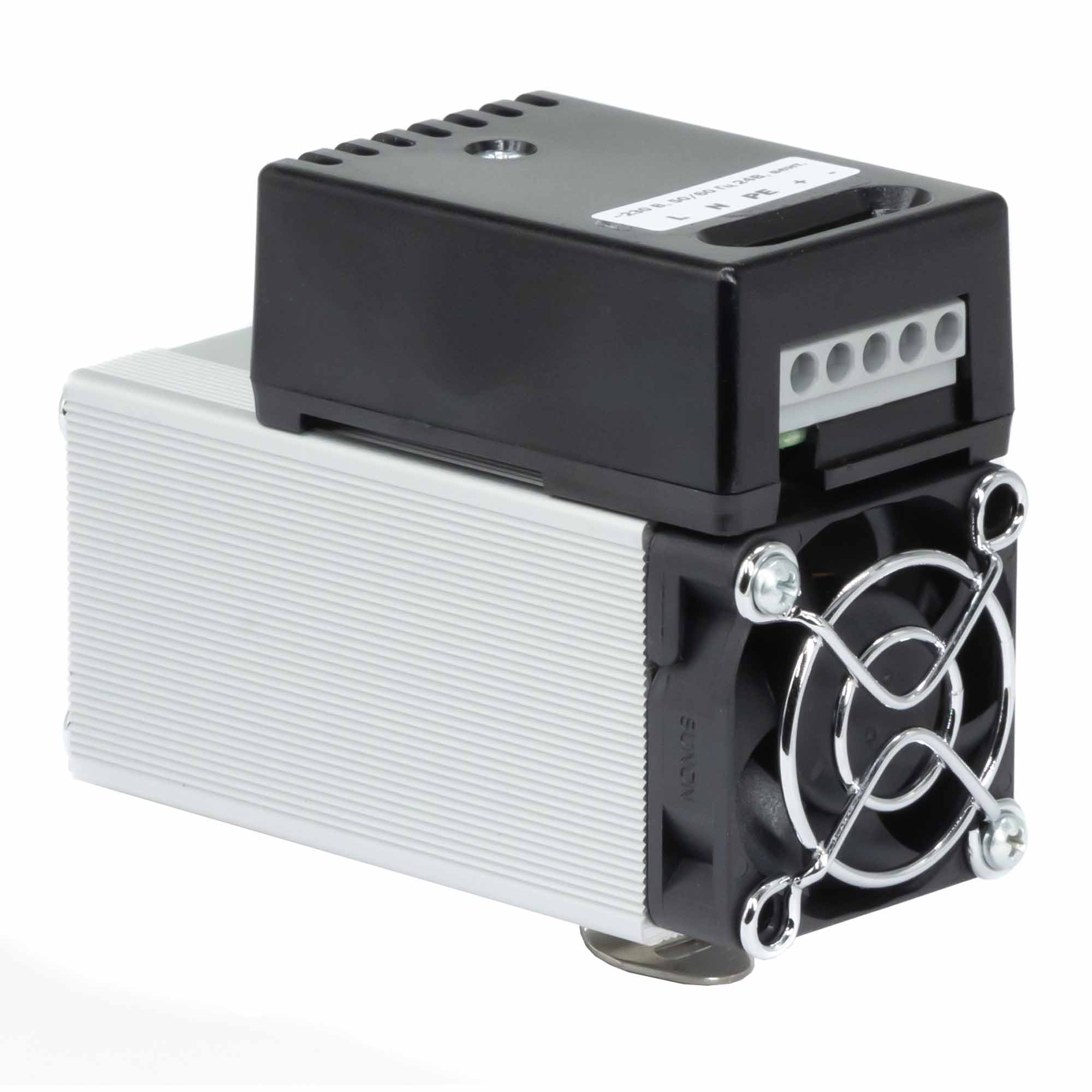

Compact heater with blower 100 W, 230 V + 24 V DC
Code:
R5FMHT100
Compact heater with blower 100 W, 230 V + 24 V DC
Code:
R5FMHT100
| Width, mm | 41 |
| Height, mm | 97 |
| Depth, mm | 66 |
| With room temperature controller | No |
| With fan | Yes |
| Degree of protection (IP) | IP20 |
| Rated power, W | 100 |
| Operating voltage at AC 50 Hz, V | 230...230 |
| Operating voltage at AC 60 Hz, V | 230...230 |
| Operating voltage at DC, V | 24...24 |
| Voltage type | AC/DC |
| Mounting method | DIN-rail (DRA) |
| With digital indication | No |
| With hygrostat | No |
| Product type | Heater |
| Heating capacity | 100 W |
| Rated voltage | 230 V AC + 24 V DC |
| Voltage type | AC+DC |
| With blower | Yes |
| With plastic protective case | No |

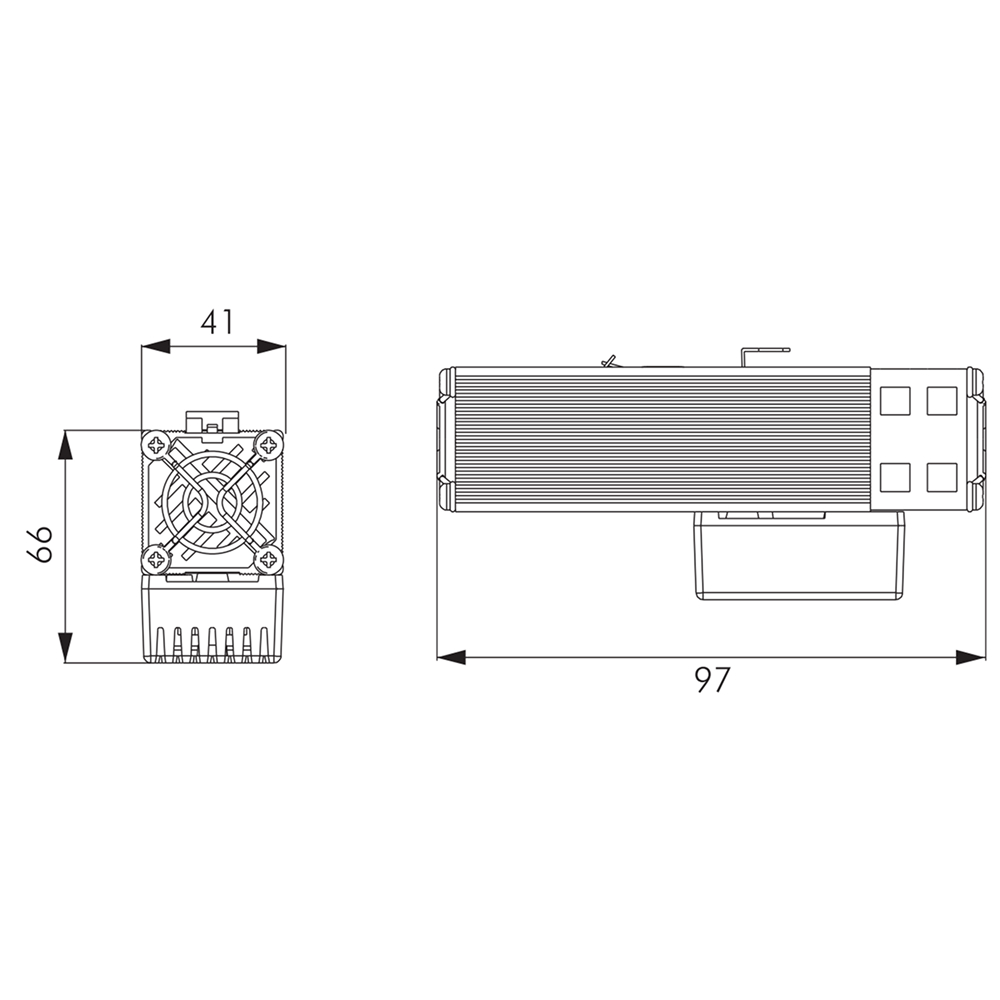

| External dimensions of heater | 41 x 97 x 66 mm |
| Operating temperature range | –25...+55 ˚C |
| Storage temperature range | –45...+80 ˚C |
| Heating element type | Resistor |
| Degree of protection | IP20 |
| Weight | 0,2 kg |
