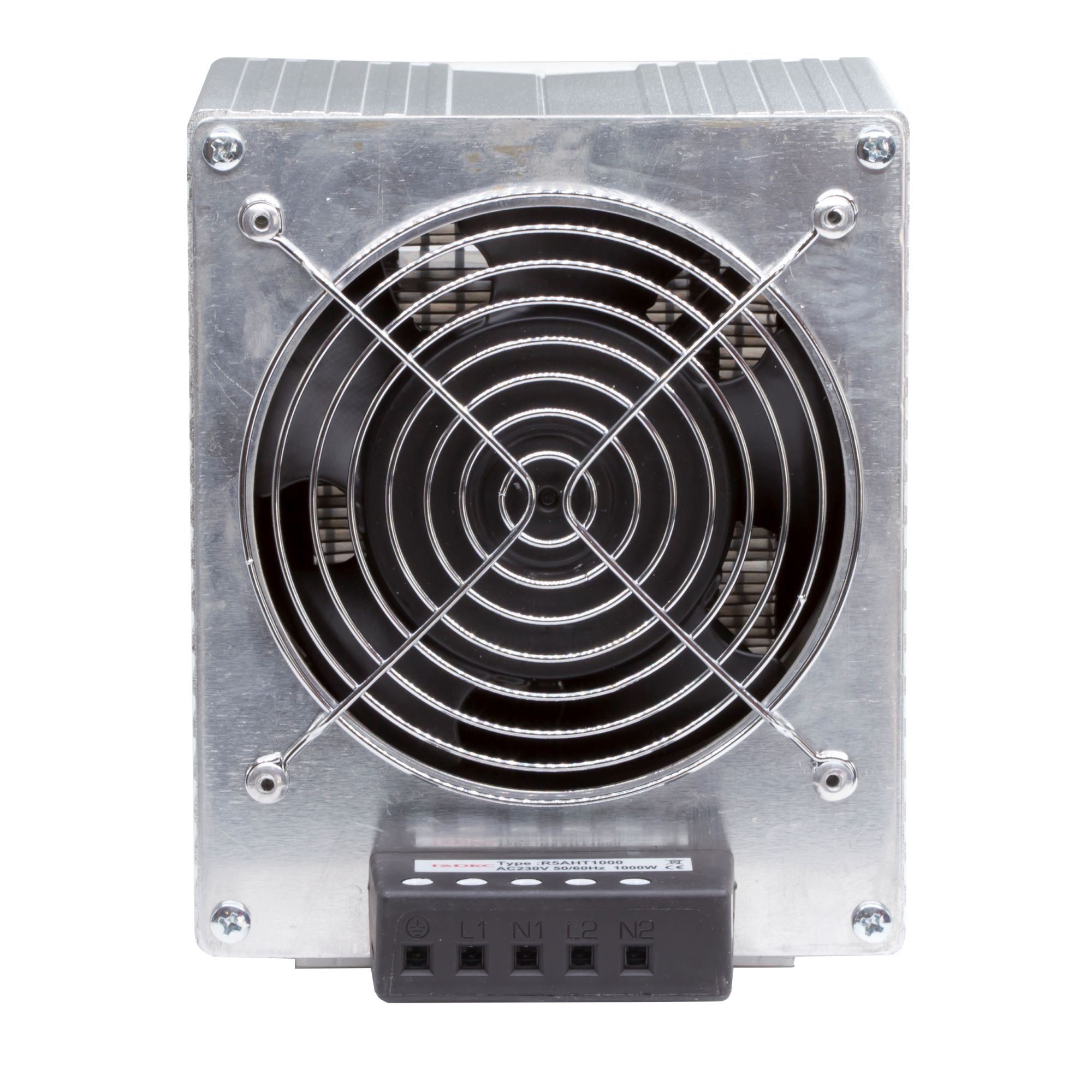

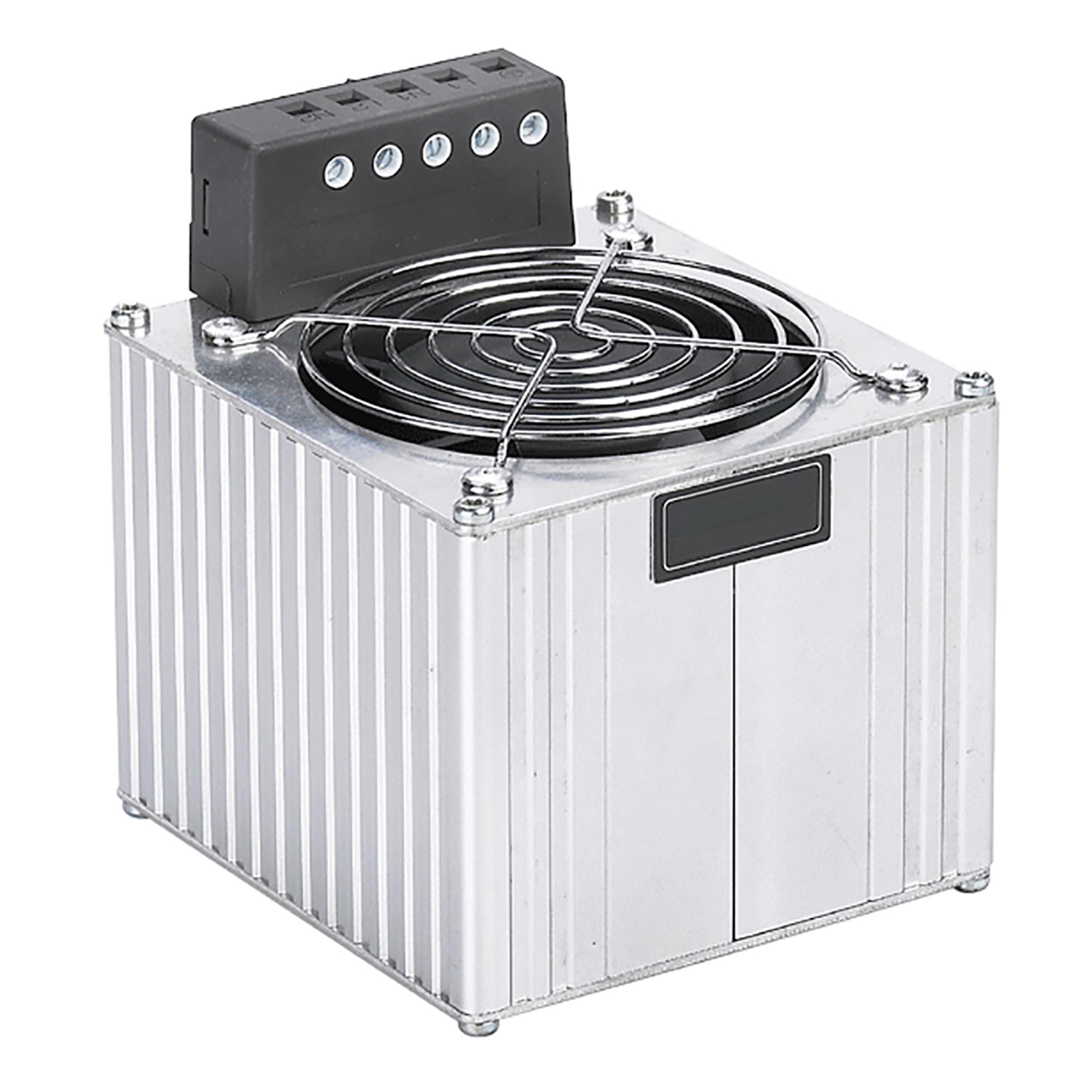

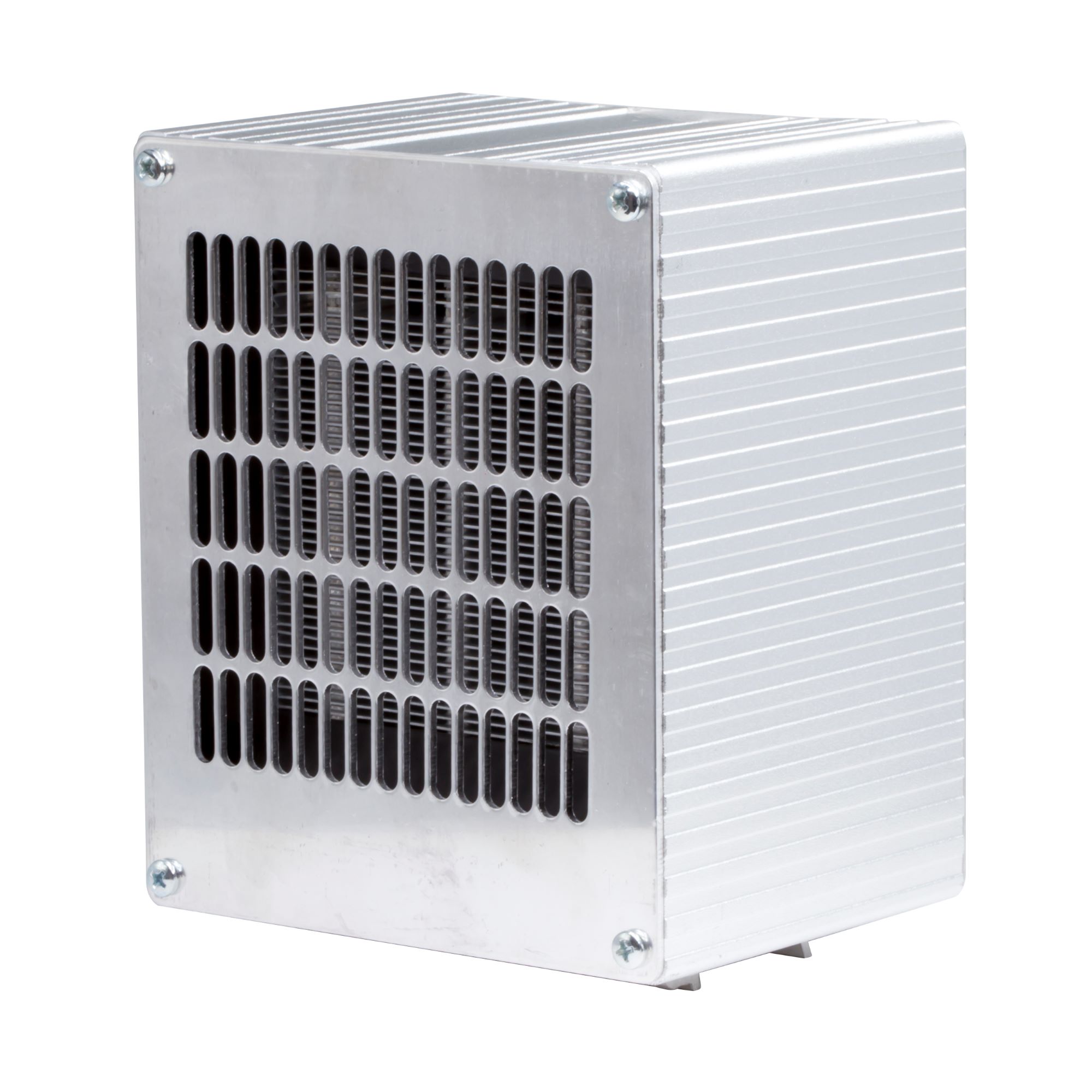

Heater in aluminum case with blower 750 W, 115 V AC
Code:
R5AHT7501
Heater in aluminum case with blower 750 W, 115 V AC
Code:
R5AHT7501
Width, mm | 108 |
Height, mm | 90 |
Depth, mm | 124 |
Voltage type | AC |
With fan | Yes |
Degree of protection (IP) | IP20 |
Rated power, W | 750 |
Operating voltage at AC 50 Hz, V | 110...120 |
Operating voltage at AC 60 Hz, V | 110...120 |
Mounting method | DIN-rail (DRA) |
With digital indication | No |
With room temperature controller | No |
Operating temperature, °C | -45...+70 |
With hygrostat | No |
Continuous heating power at 20, W | 750 |
Heating capacity | 750 W |
Rated voltage | 115 VAC |
With blower | Yes |
With plastic protective case | No |
External dimensions of heater | 108 x 90 x 124 mm |
Operating temperature range | –45...+70 ˚C |
Storage temperature range | –45...+70 ˚C |
Heating element type | Resistor |
Degree of protection | IP20 |
Weight | 1,47 kg |
Product type | Heater |
Accessories
The accompanying goods

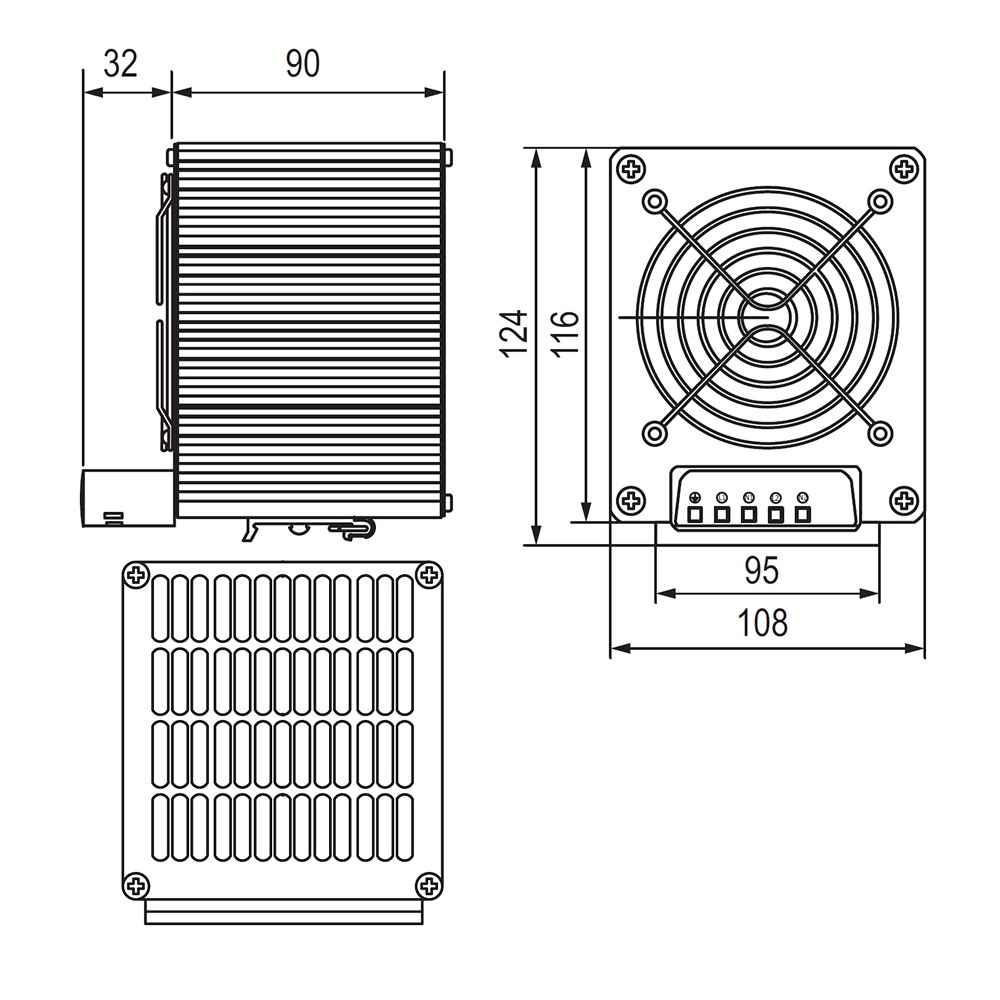

Drawings
Seria | Name | DWG (dynamic.) | Eplan |
---|---|---|---|
Heaters
|
|
||
Heaters
|
|
||
Heaters
|
|
Certificates
Name | Document |
---|---|
