Heater in aluminum case 50 W, 110…250 V AC/DC, 12/24/48 V DC

Code: R5AHT050

Heater in aluminum case 50 W, 110…250 V AC/DC, 12/24/48 V DC

Code: R5AHT050
Width, mm 61
Height, mm 80
Depth, mm 56
Voltage type AC/DC
Degree of protection (IP) IP20
Rated power, W 50
Operating voltage at AC 50 Hz, V 110...240
Operating voltage at AC 60 Hz, V 110...240

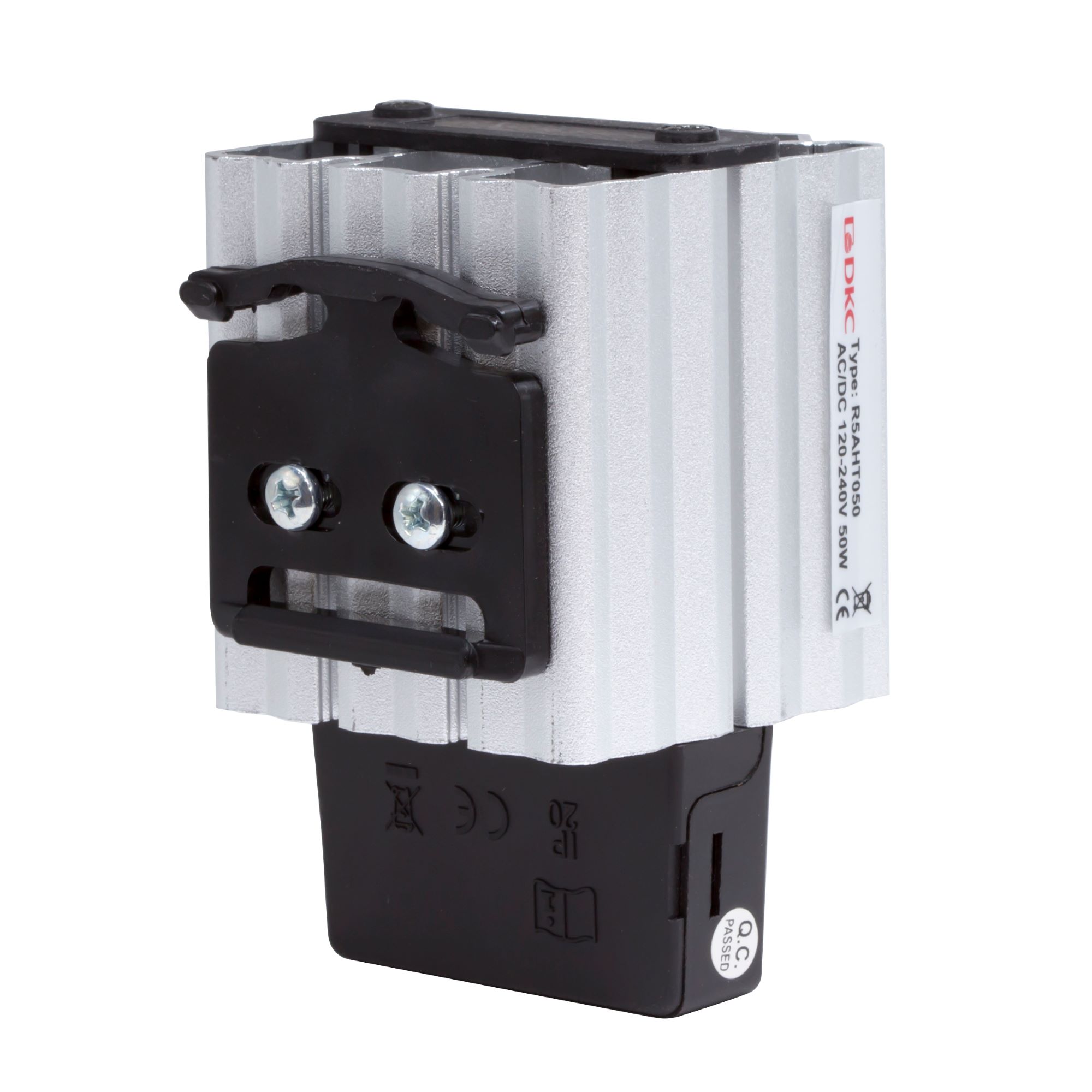

Mounting method DIN-rail (DRA)
With digital indication No
With room temperature controller No
With fan No
Operating temperature, °C -45...+70
With hygrostat No
Operating voltage at DC, V 110...240
Continuous heating power at 20, W 50
Heating capacity 50 W
Rated voltage 110...240 V AC/DC
With blower No
With plastic protective case No
External dimensions of heater 61 x 80 x 56 mm
Operating temperature range –45...+70 ˚C
Storage temperature range –45...+70 ˚C
Heating element type Resistor
Degree of protection IP20
Weight 0,35 kg
Product type Heater
