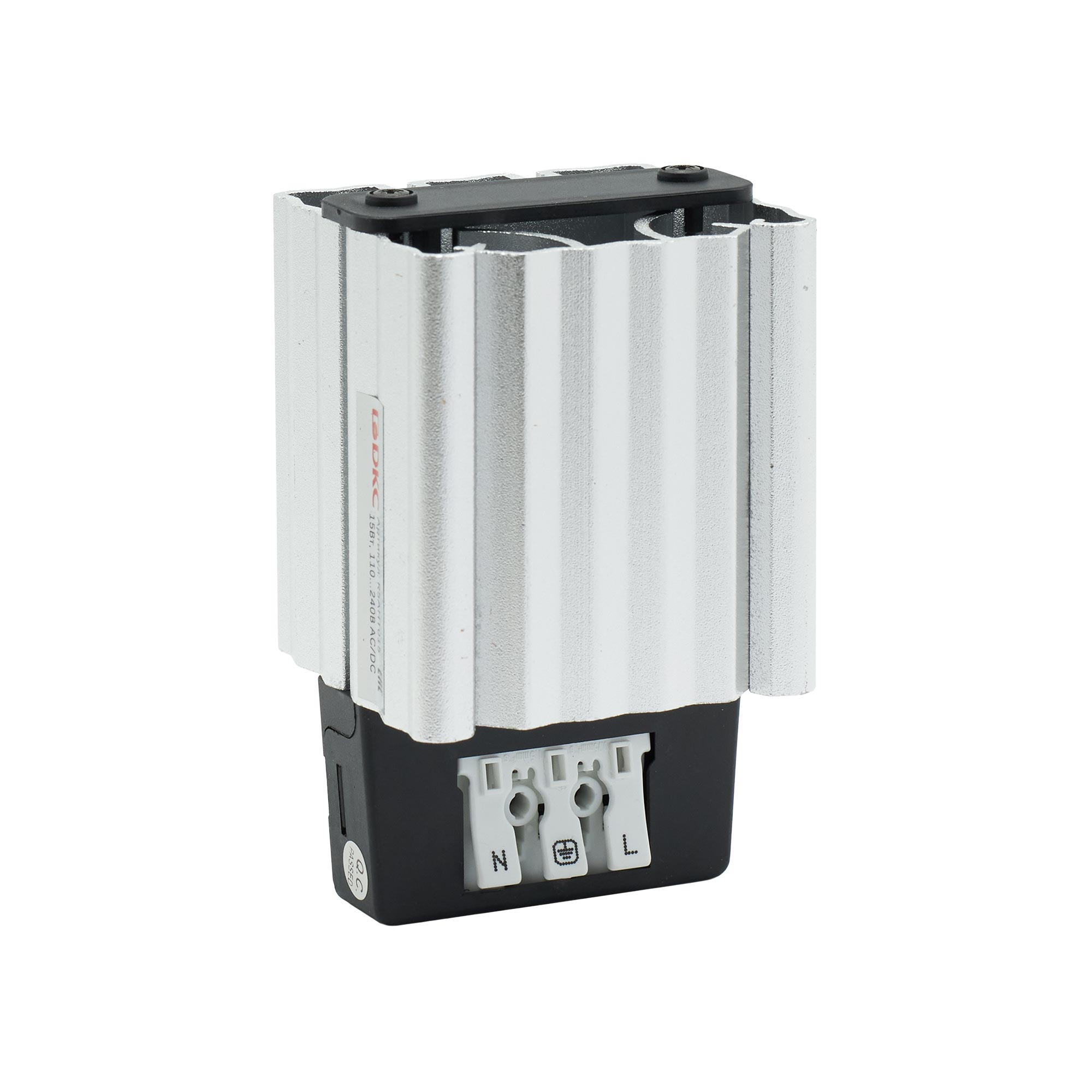

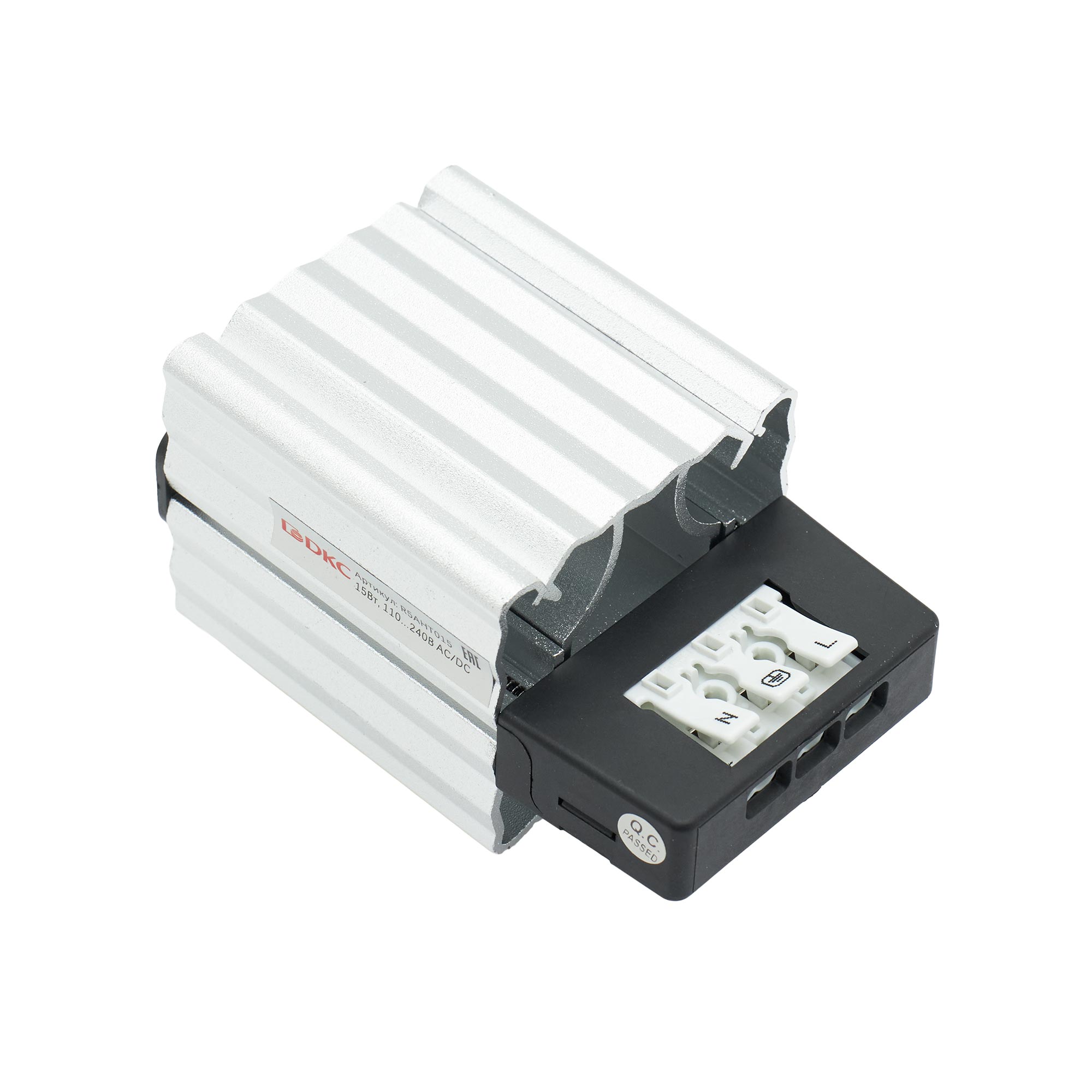

Heater in aluminum case 25 W, 110…250 V AC/DC, 12/24/48 V DC
Code:
R5AHT025
Heater in aluminum case 25 W, 110…250 V AC/DC, 12/24/48 V DC
Code:
R5AHT025
Width, mm | 61 |
Height, mm | 65 |
Depth, mm | 56 |
Voltage type | AC/DC |
Degree of protection (IP) | IP20 |
Rated power, W | 25 |
Operating voltage at AC 50 Hz, V | 110...240 |
Operating voltage at AC 60 Hz, V | 110...240 |

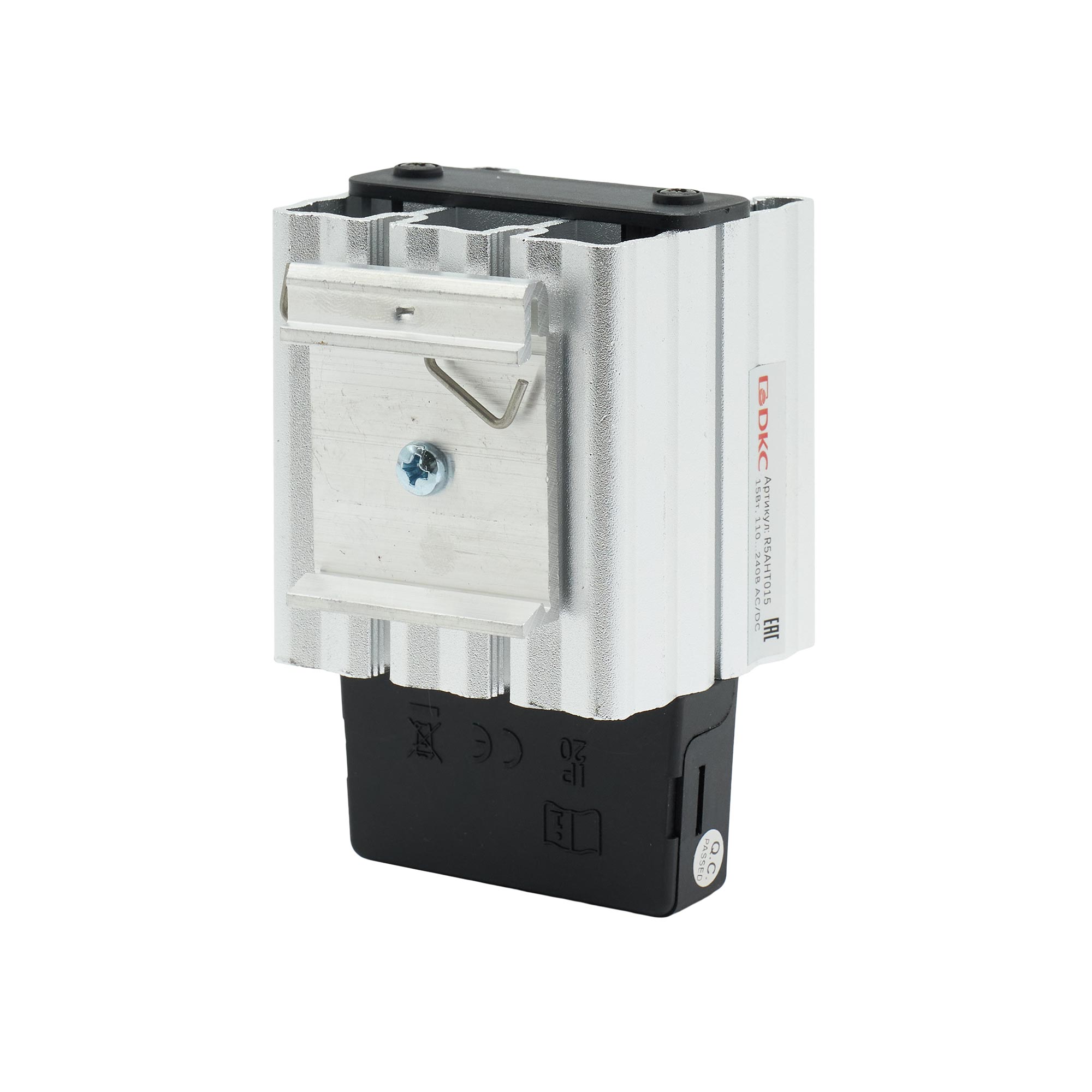

Mounting method | DIN-rail (DRA) |
With digital indication | No |
With room temperature controller | No |
With fan | No |
Operating temperature, °C | -45...+70 |
With hygrostat | No |
Operating voltage at DC, V | 110...240 |
Continuous heating power at 20, W | 25 |
Heating capacity | 25 W |
Rated voltage | 110...240 V AC/DC |
With blower | No |
With plastic protective case | No |
External dimensions of heater | 61 x 65 x 56 mm |
Operating temperature range | –45...+70 ˚C |
Storage temperature range | –45...+70 ˚C |
Heating element type | Resistor |
Degree of protection | IP20 |
Weight | 0,25 kg |
Product type | Heater |
