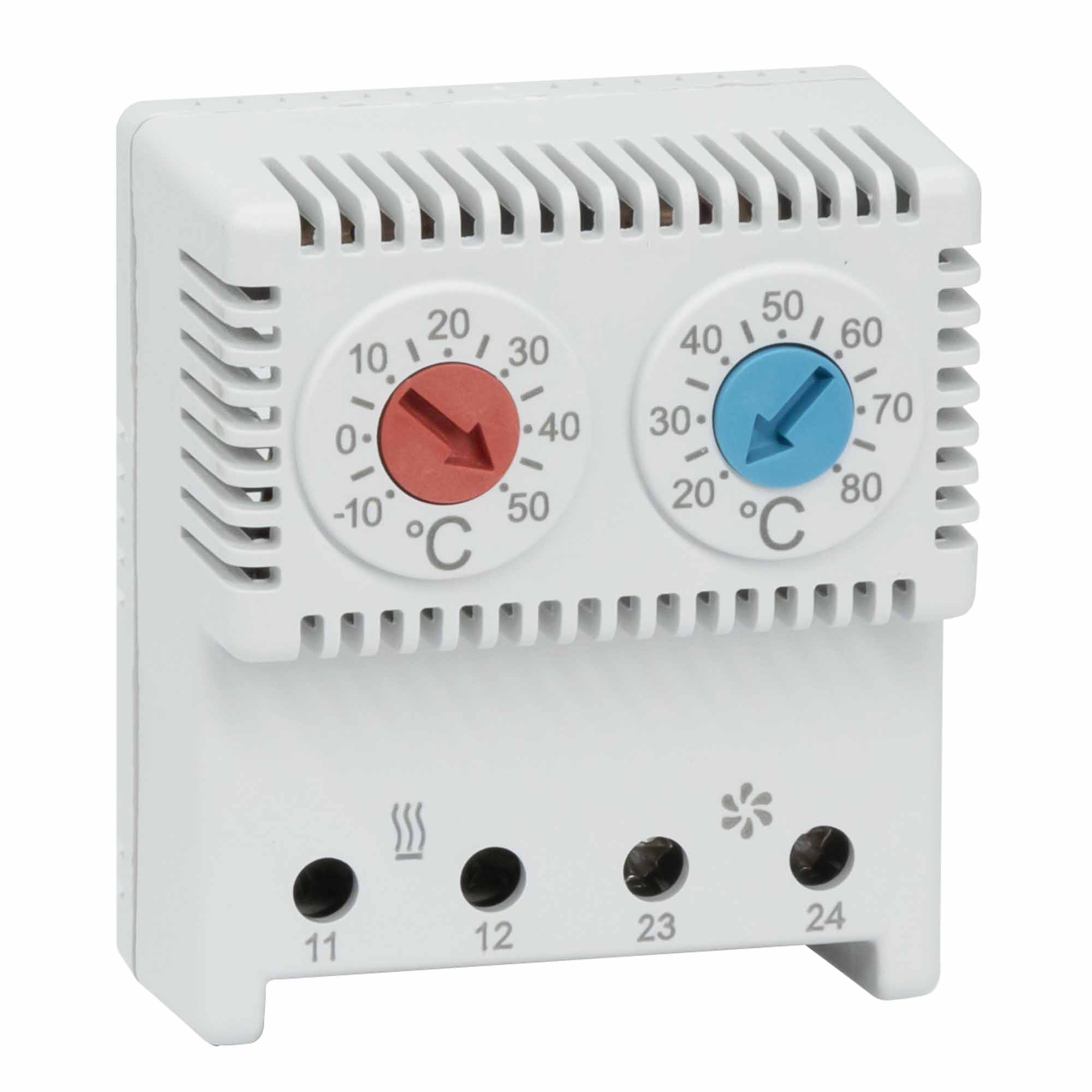

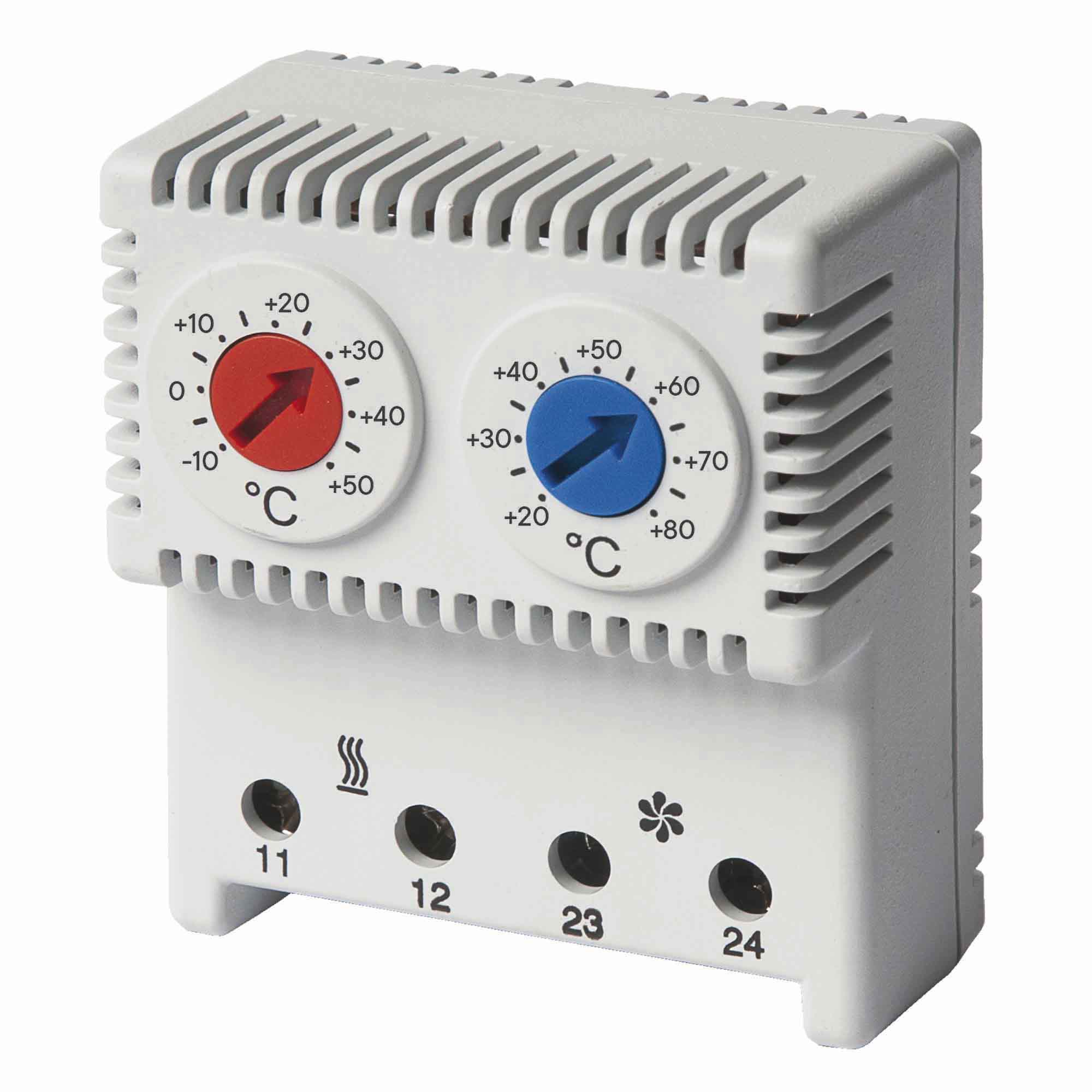

Double thermostat, setting temperature ranges -10…+50°C, NC-contact and +20…+80°C, NO-contact

Code: R5THRV13

Double thermostat, setting temperature ranges -10…+50°C, NC-contact and +20…+80°C, NO-contact

Code: R5THRV13
Mounting method DRA (DIN-rail adapter)
With digital indication Нет
Type of switch function Normally closed contact and normally open contact
With hygrostat Нет
Adjustment range temperature, °C -10…+80
Product type Control and Regulation

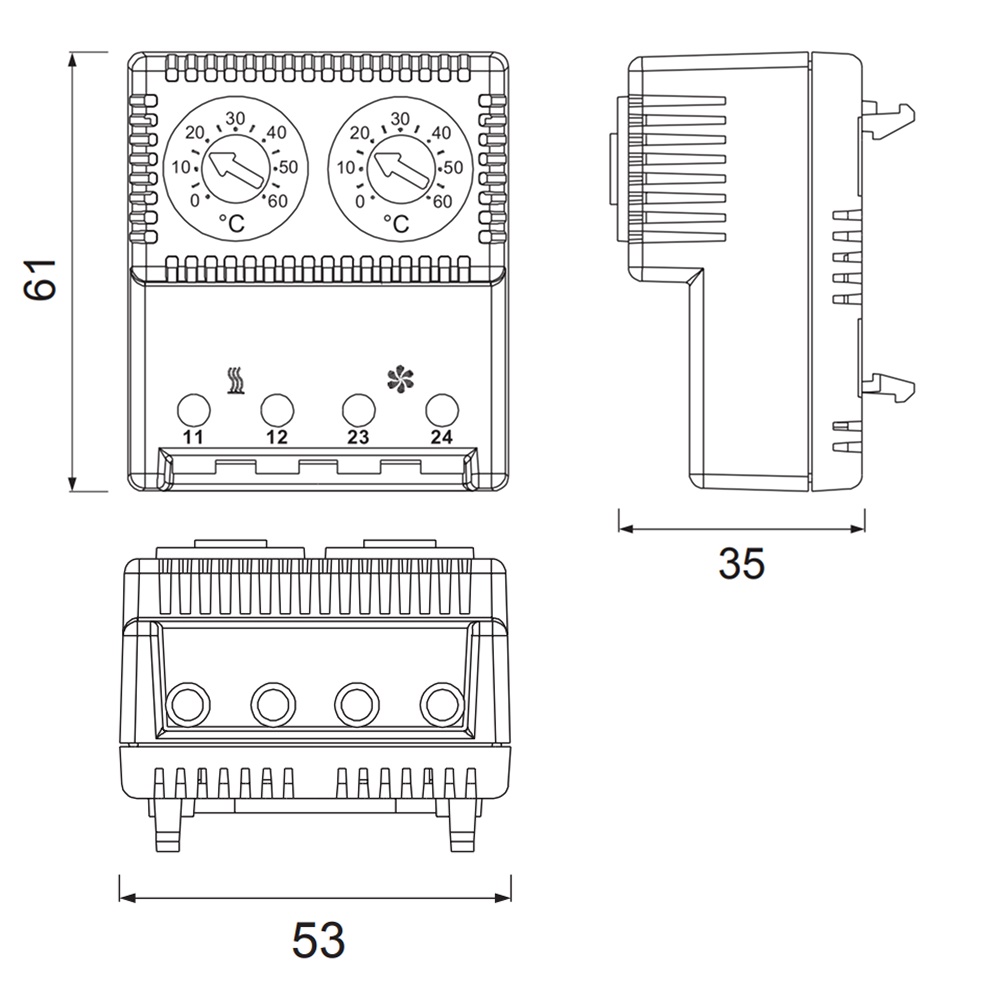

External dimensions (W x H x D), mm 53 x 35 x 61
Temperature setting range, °С from –10 to +50 and from +20 to +80
Contact type NC + NO
Precision, °С ±4
Hysteresis, °С 7
Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
