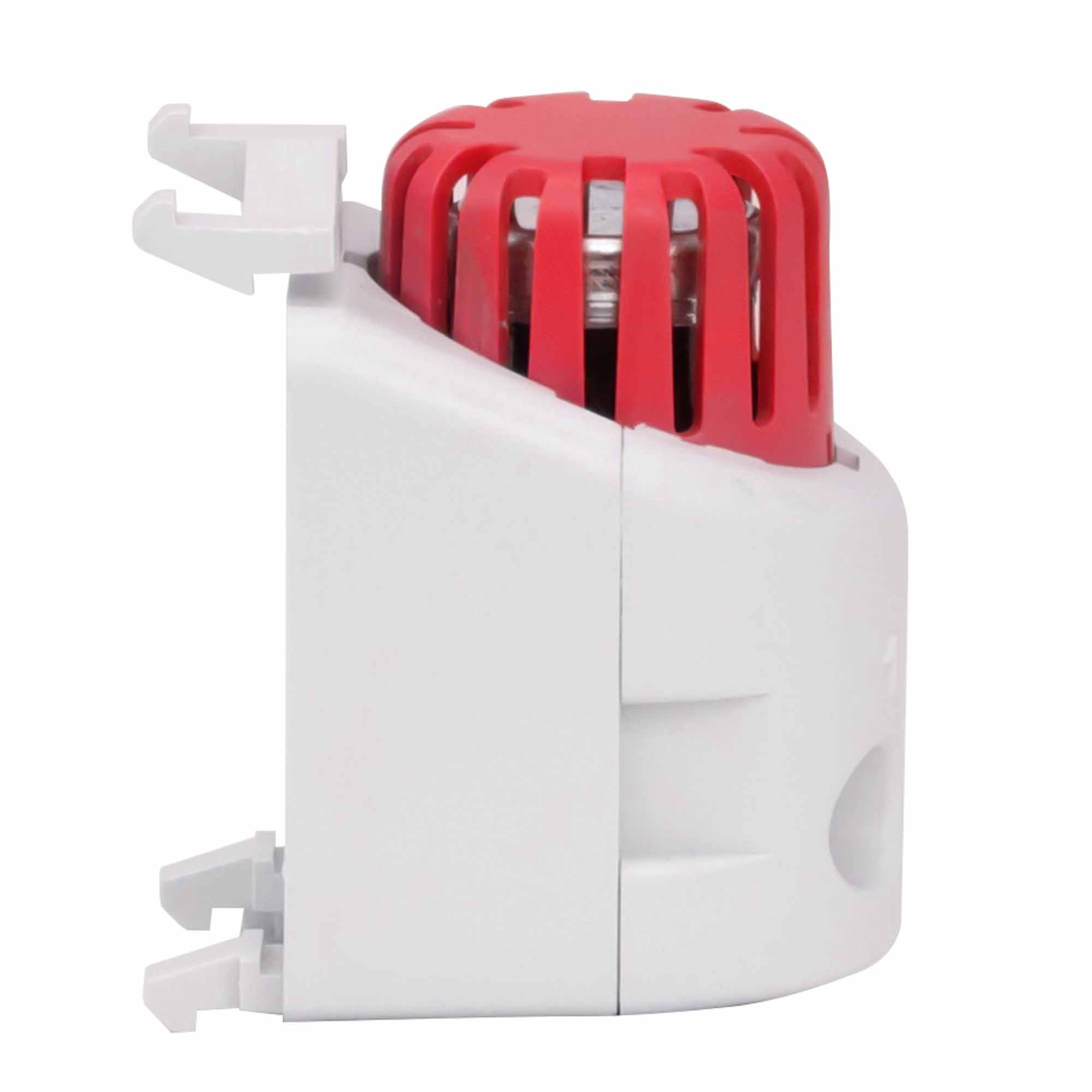

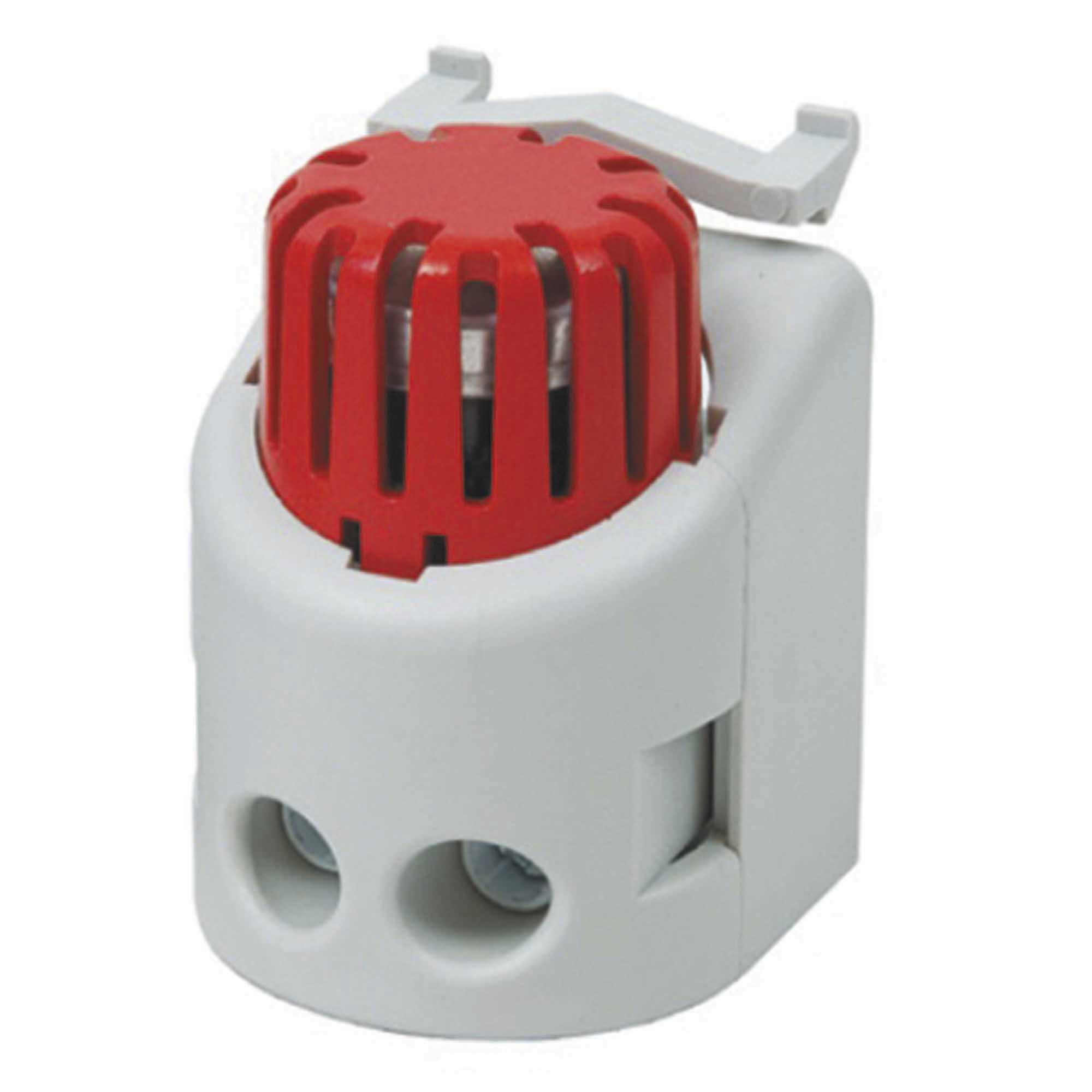

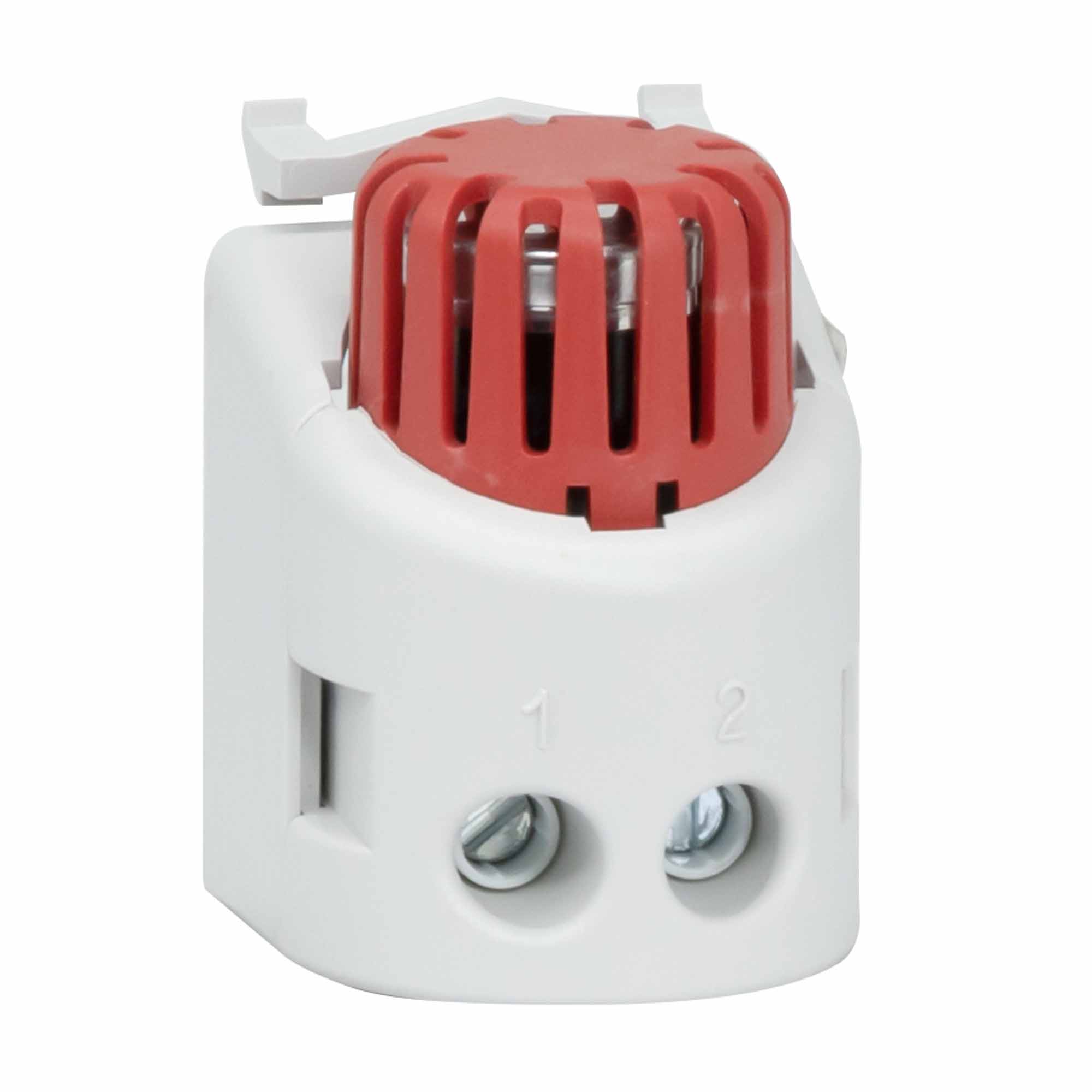

Thermostat, fix temperature set +5°C, NC-contact

Code: R5THRF05

Thermostat, fix temperature set +5°C, NC-contact

Code: R5THRF05
Mounting method DRA (DIN-rail adapter)
With digital indication Нет
Type of switch function Breaker contact
With hygrostat Нет
Adjustment range temperature, °C +5…+5
Product type Control and Regulation

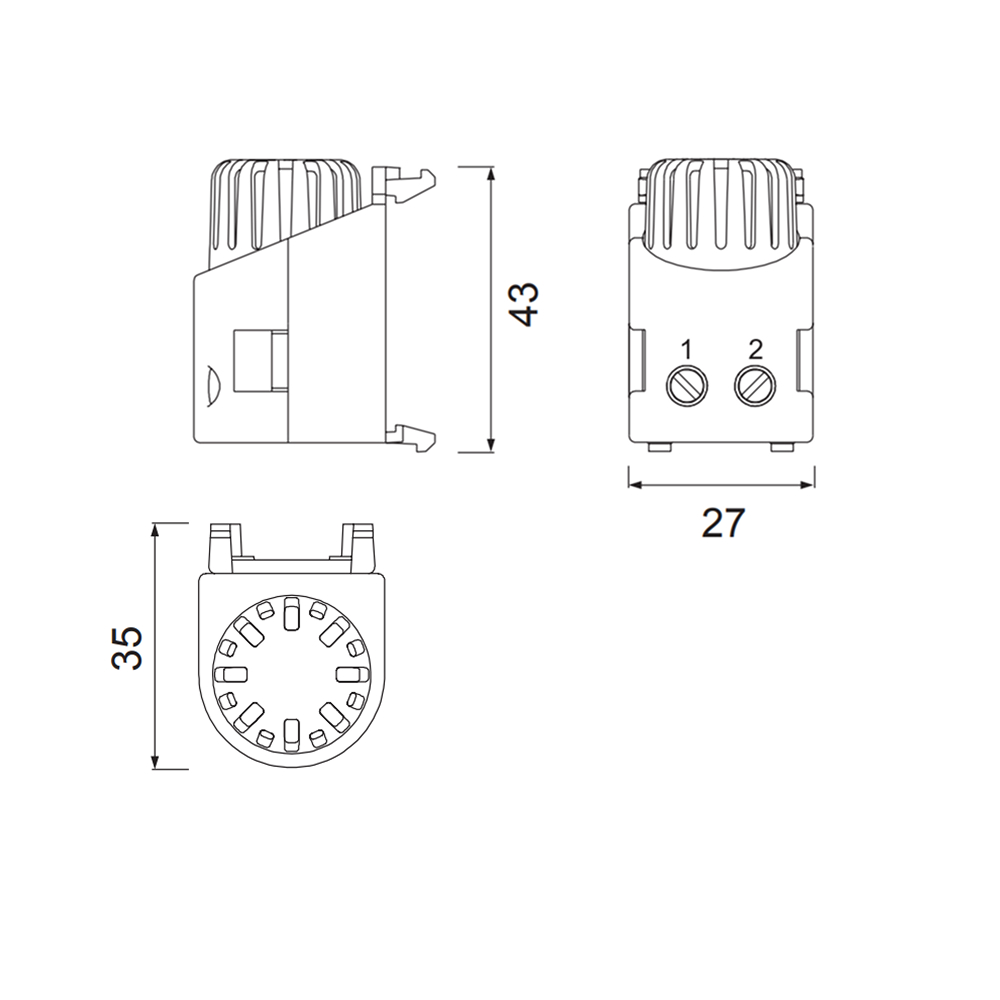

External dimensions (W x H x D), mm 27 x 35 x 43
Temperature setting range, °С +5
Contact type NC
Precision, °С ±4
Hysteresis, °С 10
Drawings
Seria Name DWG (dynamic.) DWG STEP Eplan
