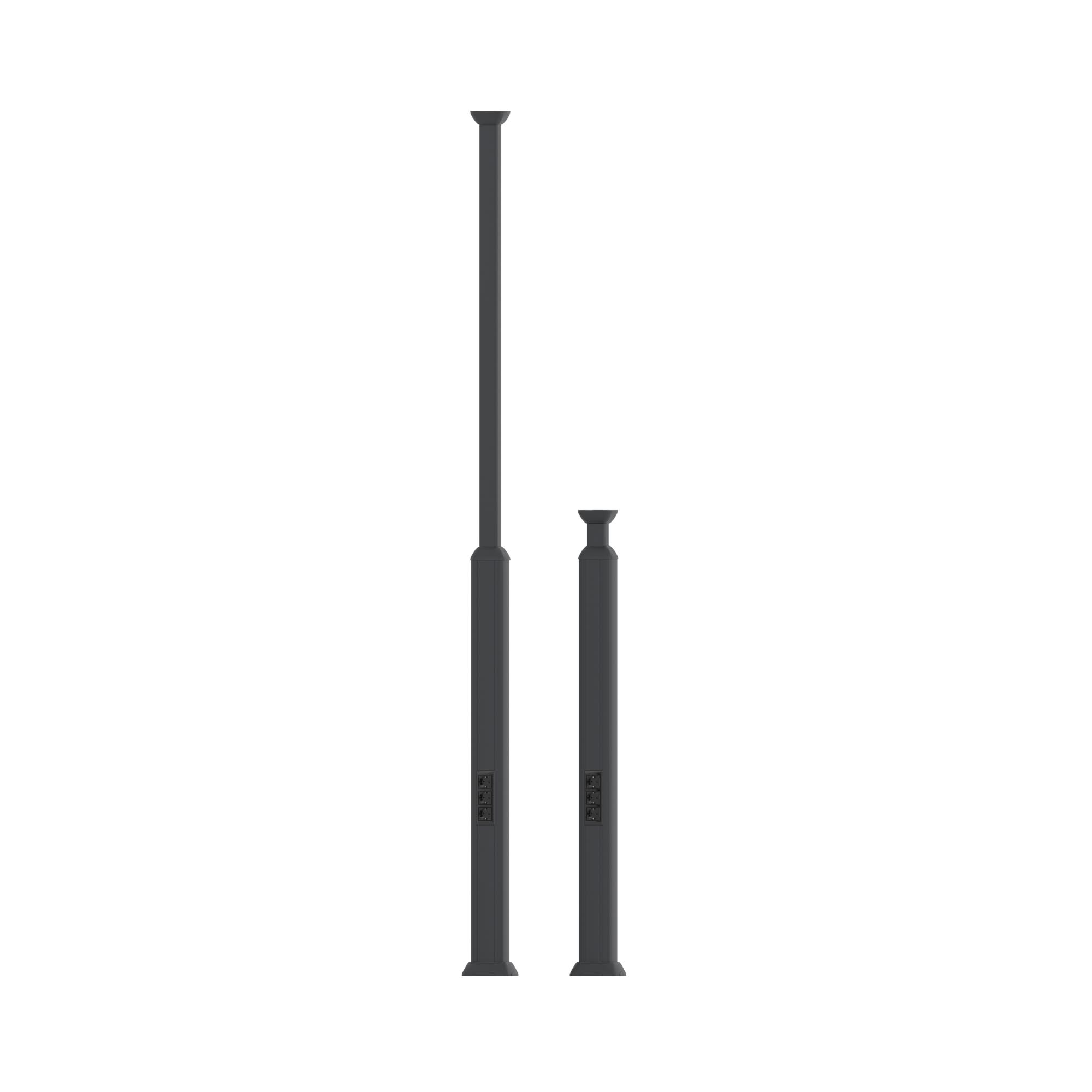

Column, aluminum, 1.5 - 3 m, black

Code: 09583
Color gray
Material of case PVC
Width, mm 173х173
Temperature of mounting, °C ­25°С ... +60°С
Width (nominal), mm 120х120
Ingress Protection rating, IP IP40
Average filled area, sq.mm 4905+4905
Summarized profile area (max), sq.mm 9810
Temperature of usage, °C ­25°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 20
Climate version UHL4
Q'ty of bays 2
Height (nominal), mm 3050
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Model Other
Cable entry Above/under
Adjustable Yes
Type of fastening Telescope
Number of usable covers 2
Number of partitions 2-3
Cover width, mm 60
Column height, mm 1540-3050
Material installation column Aluminium
Material cover Aluminium
Ceiling mounting Yes
Pillar shape Rectangular
Colour cover Other
Colour column Other
Prewired No
Material installation column halogen free Yes
Material cover halogen free Yes
Material quality installation column Other
RAL-number column 9005
