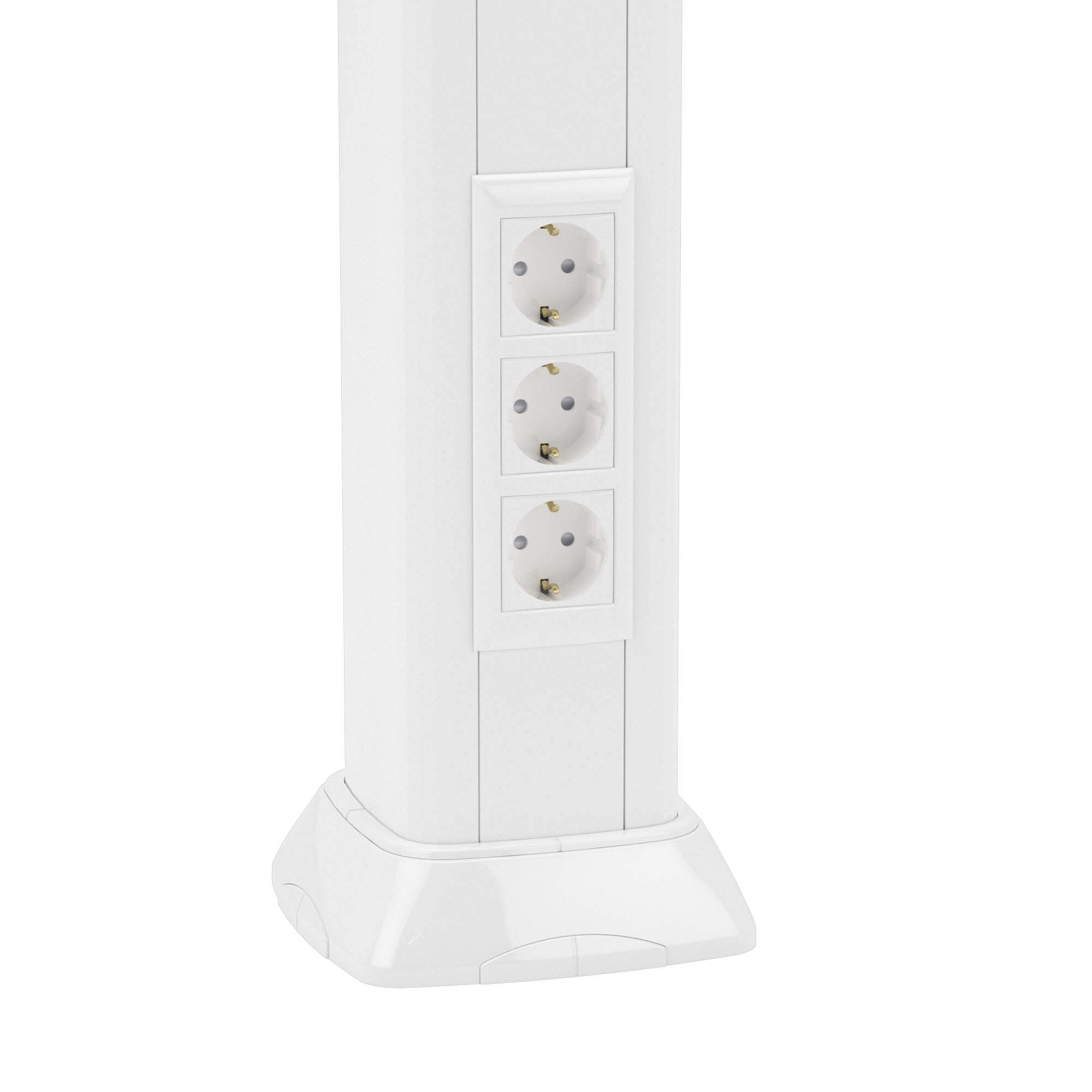

Column, aluminum, 2.7 - 4.2 m, white

Code: 09572
Column, aluminum, 2.7 - 4.2 m, white
  • To ask a question
Model Other
Cable entry Above/under
Adjustable Yes
Type of fastening Telescope
Number of usable covers 2
Number of partitions 2…3
Cover width, mm 60
Column height, mm 2740…4250
Material installation column Aluminium
Material cover Aluminium
Ceiling mounting Yes
Pillar shape Rectangular
Colour cover Clear white
Colour column Clear white
Prewired No
Material installation column halogen free Yes
Material cover halogen free Yes
Material quality installation column Other
RAL-number column 9016
Colour White
Color white, RAL 9016
Material of case Aluminium
Width, mm 173х173
Width (nominal), mm 120х120
Ingress Protection rating, IP IP40
Average filled area, sq.mm 4905+4905
Summarized profile area (max), sq.mm 9810
Temperature of operation, °C +60°C
Shock resistance, J 20
Climate version UHL4
Q'ty of bays 2
Height (nominal), mm 4250
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Column
