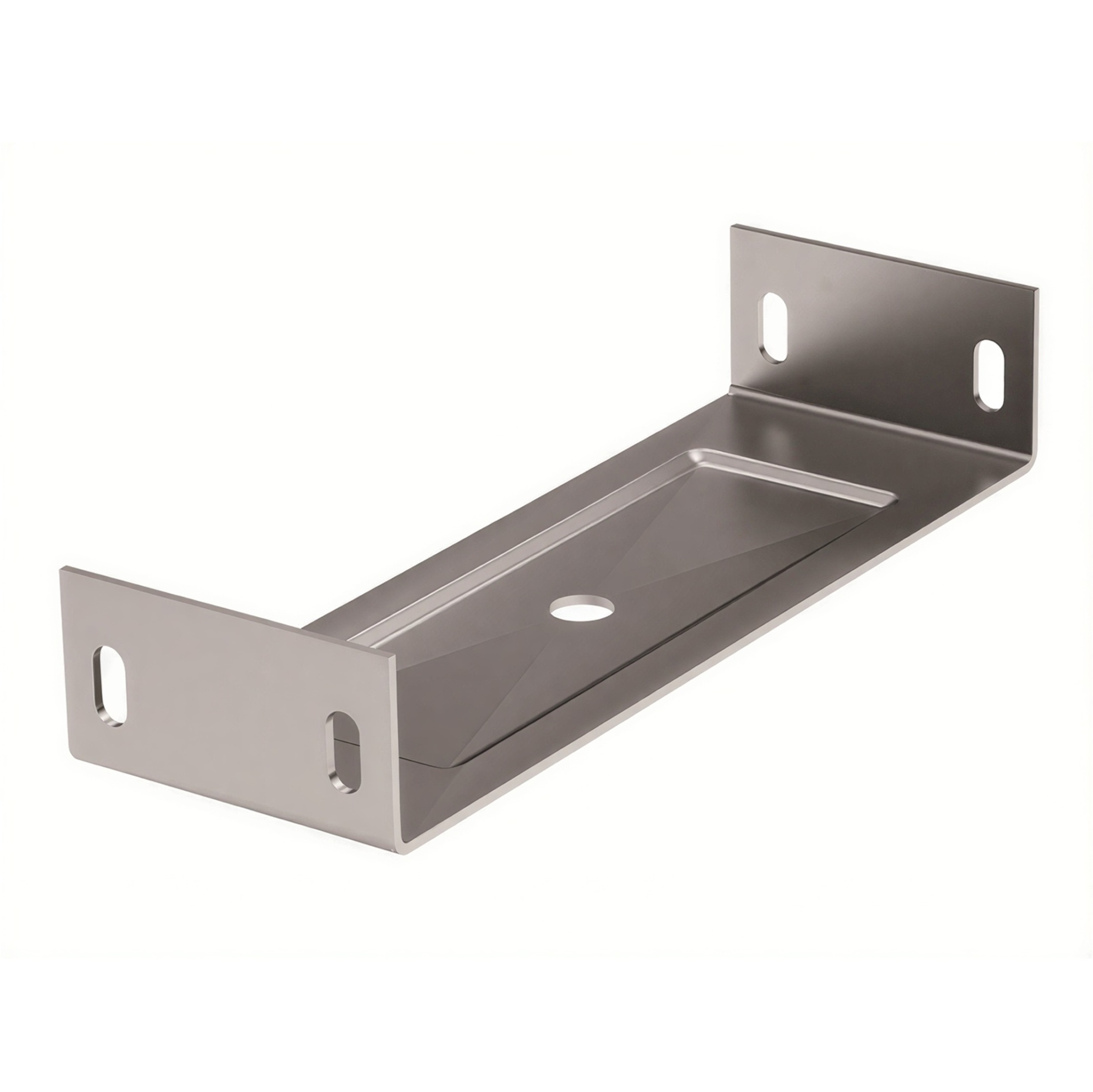

| Model | Face out bracket overhead |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Tray mounting | Screwable |
| Suitable for circuit integrity | No |
| Surface protection | Hot-dip galvanized |
| Material quality | Steel galvanised |
| Suitable for cable management system height, mm | 100 |
| Suitable for cable management system width, mm | 500...500 |
| Length, mm | 510 |
| Thickness of metal sheet, mm | 2 |
| Type | Fittings |
| Material | Hot-dip galvanized |
