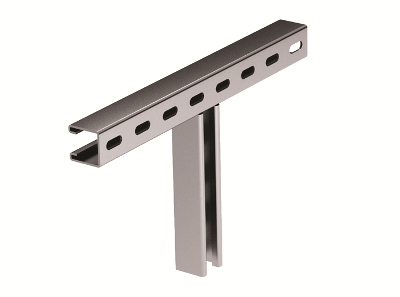

T-shaped attachment to a vertical I-beam, 200 mm, hot dip galvanized
Code: BMH3020HDZ
T-shaped attachment to a vertical I-beam, 200 mm, hot dip galvanized
Code: BMH3020HDZ
| Model | Singular profile |
| Height, mm | 241 |
| Surface protection | Hot-dip galvanized |
| Material thickness, mm | 2.5 |
| With toothing | Yes |
| Length, mm | 400 |
| Material | Steel |
| Load bearing capacity, kN | 2450 |
| Type of perforation | 3 sides punched |
| Profile shape | T-profile |
| Slit width, mm | 17 |
| Hole width, mm | 10.5 |
| Snap-off | Yes |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Material | Hot-dip galvanized |
| Height, mm | 241 |
| Width, mm | 41 |
| Length, mm | 400 |
| Thickness of metal sheet, mm | 2,5 |
| Type | Fittings |

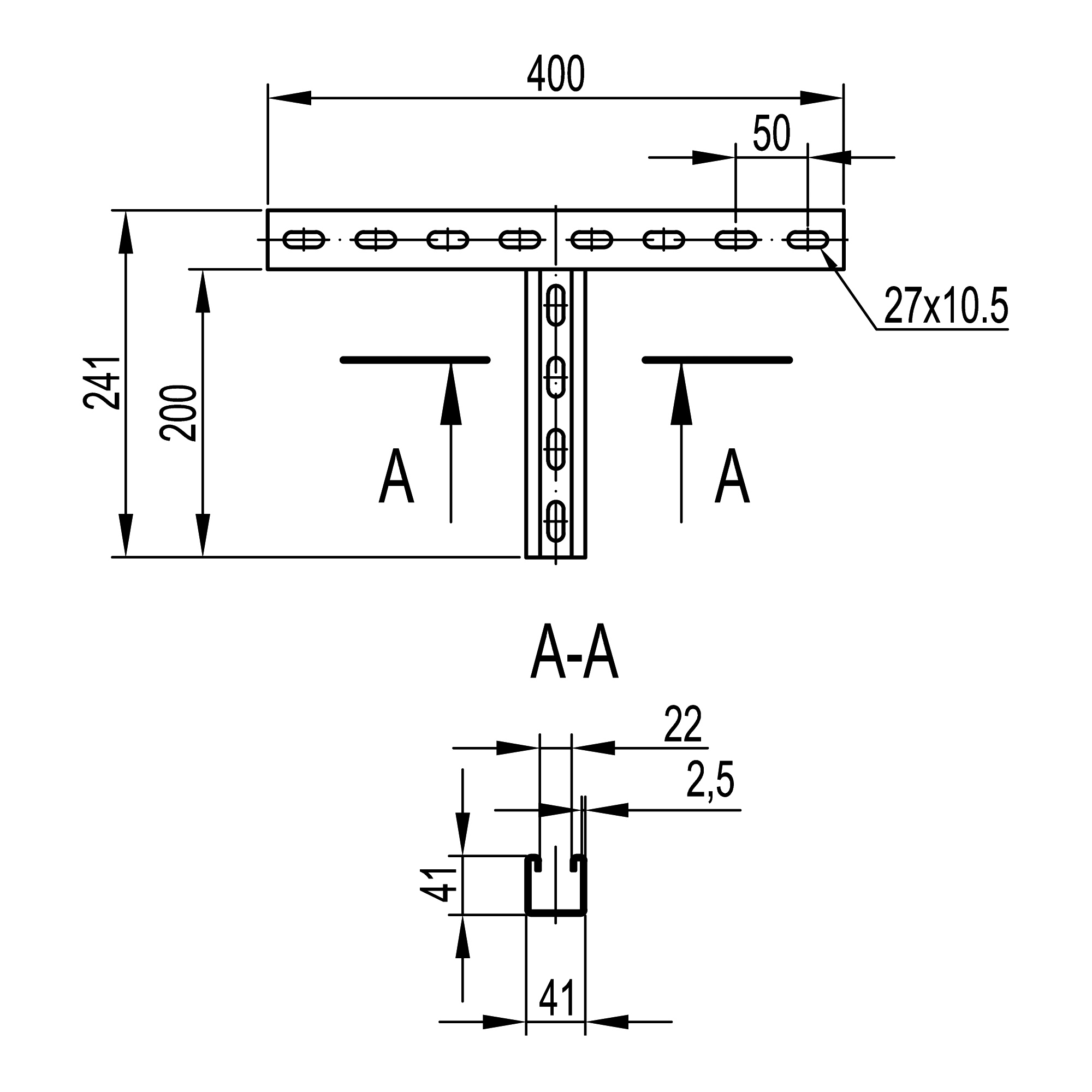

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
