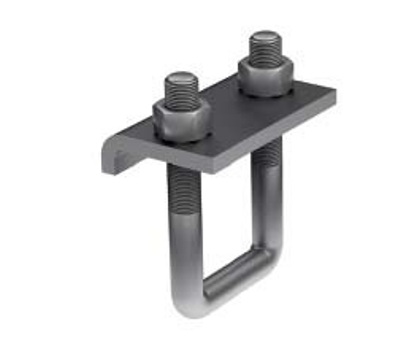

Fastener for metal beams, hot dip galvanized
Code: BMH1010HDZ
Fastener for metal beams, hot dip galvanized
Code: BMH1010HDZ
| Height, mm | 96 |
| Surface protection | Hot-dip galvanized |
| Thread length, mm | 10 |
| Material | Steel |
| Thread size (metric) | 10 |
| Dual spacing screw thread, mm | 510.45 |
| Thread type | Metric |
| Height, mm | 55 |
| Width, mm | 80 |
| Length, mm | 96 |
| Type | Fittings |
| Material | Hot-dip galvanized |

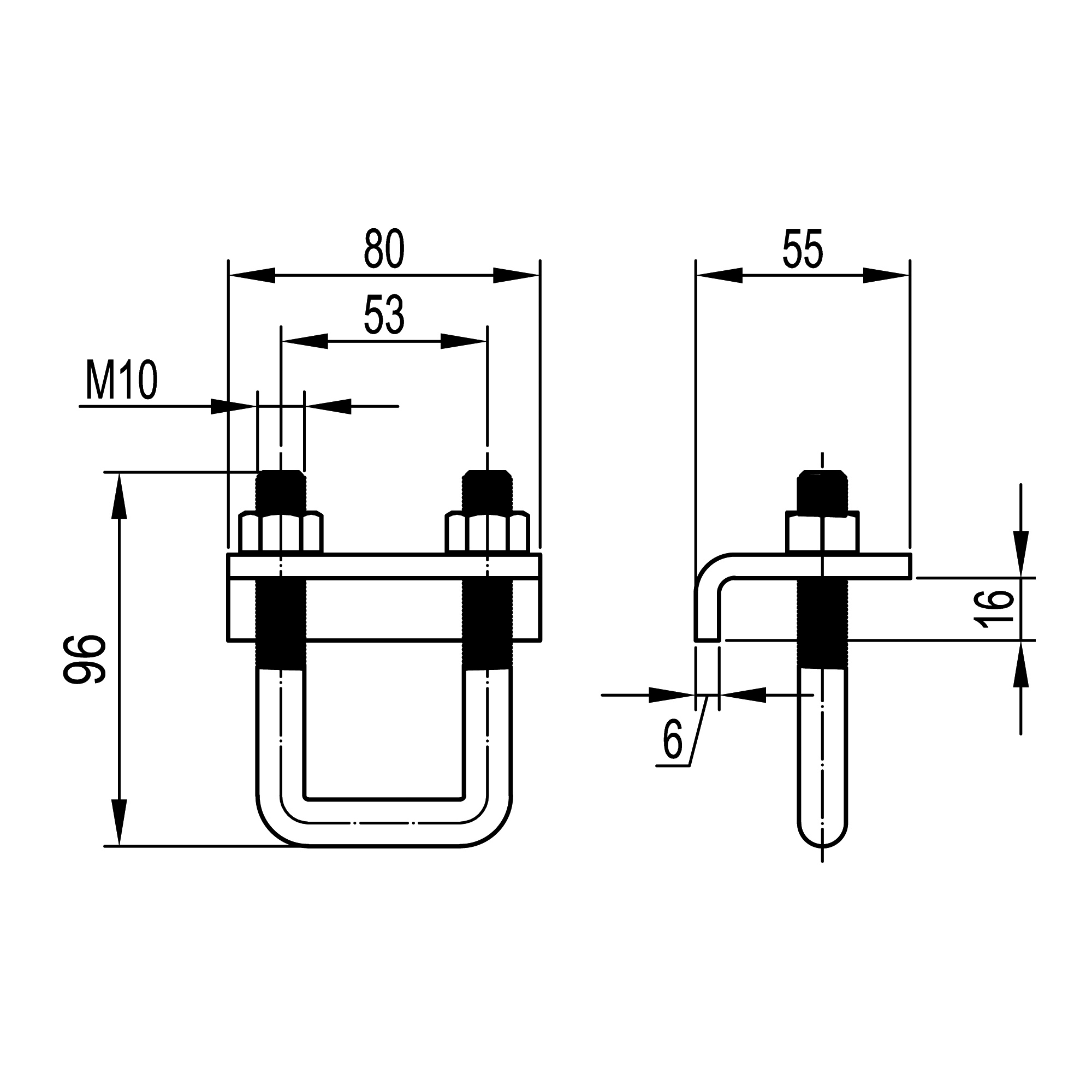

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
