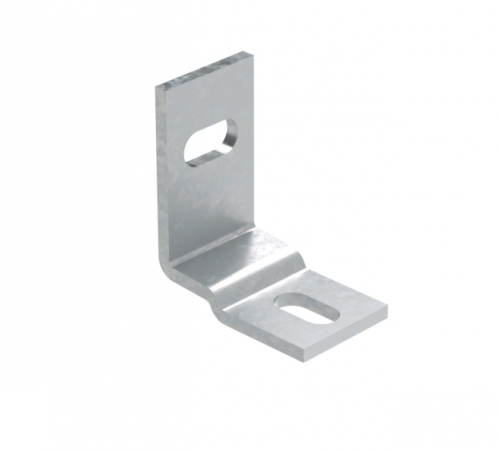

Mounting plate for BPM-50 wall connection, hot dip galvanized
Code: BMD2032HDZ
Mounting plate for BPM-50 wall connection, hot dip galvanized
Code: BMD2032HDZ
| Colour | Light grey |
| Type of side wall | I-profile |
| Surface protection | Hot-dip galvanized |
| Material quality | Other |
| Material | Steel |
| Stainless steel, pickled | No |
| Height, mm | 65,5 |
| Width, mm | 40 |
| Length, mm | 75 |
| Thickness, mm | 5 |
| Type | Fittings |
| Material | Hot-dip galvanized |
The accompanying goods

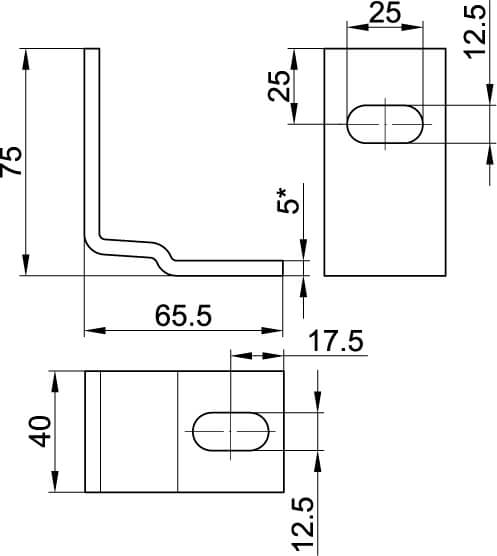

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
