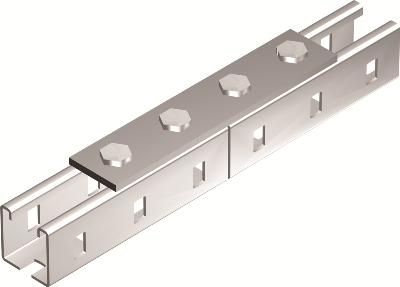

Connecting plate 190 mm, 4 holes, hot dip galvanized
Code: BMD1012HDZ
Connecting plate 190 mm, 4 holes, hot dip galvanized
Code: BMD1012HDZ
| Surface protection | Hot-dip galvanized |
| Material quality | Steel |
| Length, mm | 92 |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Colour | Light grey |
| Model | Longitudinal joint |
| Type of connection | Screw connector |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
| Hinged joint vertical | Yes |
| Width, mm | 40 |
| Length, mm | 190 |
| Thickness of metal sheet, mm | 5 |
| Type | Fittings |
| Material | Hot-dip galvanized |

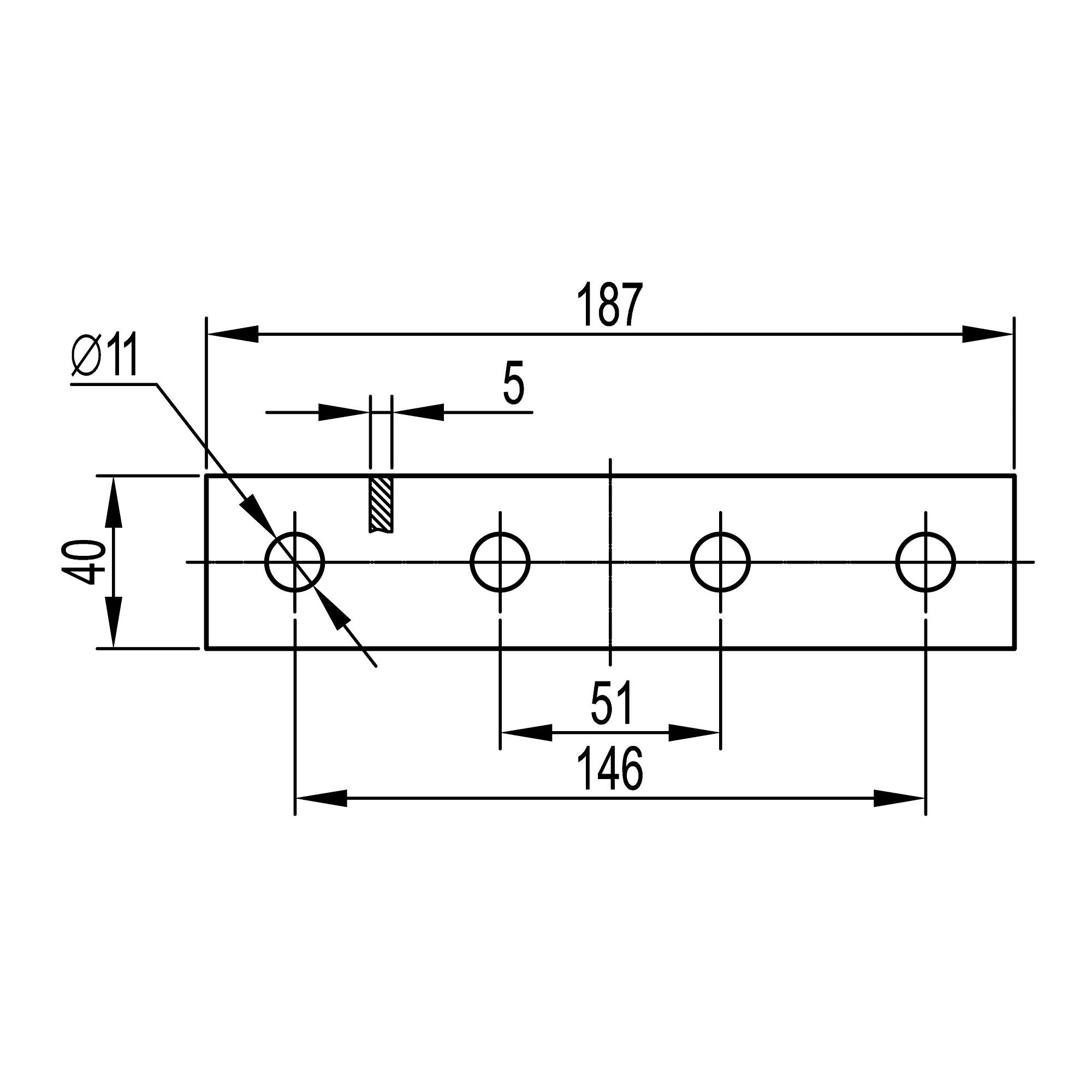

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
