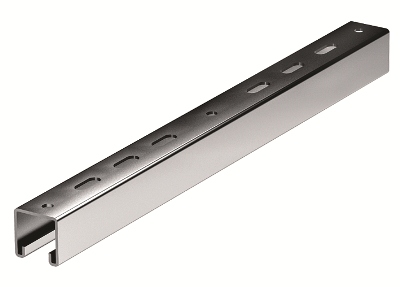

Traverse, L600, thickness 2,5 mm, hot dip galvanized
Code: BST4160HDZ
Traverse, L600, thickness 2,5 mm, hot dip galvanized
Code: BST4160HDZ
| Model | Singular profile |
| Height, mm | 41 |
| Surface protection | Hot-dip galvanized |
| Material thickness, mm | 2.5 |
| With toothing | Yes |
| Length, mm | 665 |
| Material | Steel |
| Type of perforation | Back perforated |
| Slit width, mm | 10.5 |
| Hole width, mm | 10.5 |
| Snap-off | Yes |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Material | Hot-dip galvanized |
| Height, mm | 41 |
| Width, mm | 41 |
| Length, mm | 658 |
| Thickness of metal sheet, mm | 2,5 |
Accessories

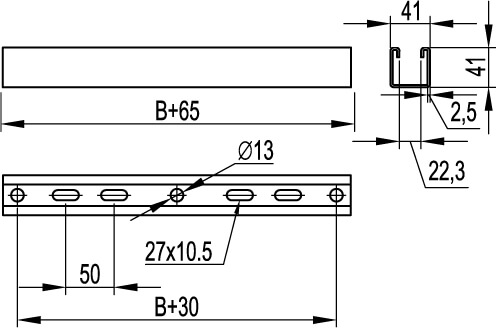

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
