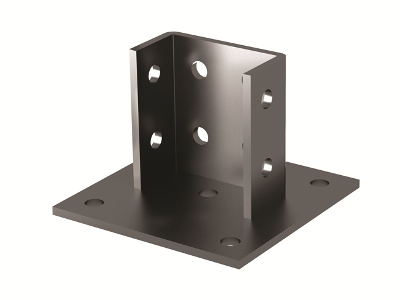

Reinforced vertical support for 82х41 profile, hot dip galvanized
Code: BSF8201HDZ
Reinforced vertical support for 82х41 profile, hot dip galvanized
Code: BSF8201HDZ
| Model | Mounting base |
| Suitable for | C-profile |
| Surface protection | Hot-dip galvanized |
| Material | Steel |
| With screw accessories | Yes |
| Material | Hot-dip galvanized |
| Height, mm | 150 |
| Width, mm | 150 |
| Length, mm | 106 |
| Thickness of metal sheet, mm | 5 |
| Type | Vertical supports and traverses |

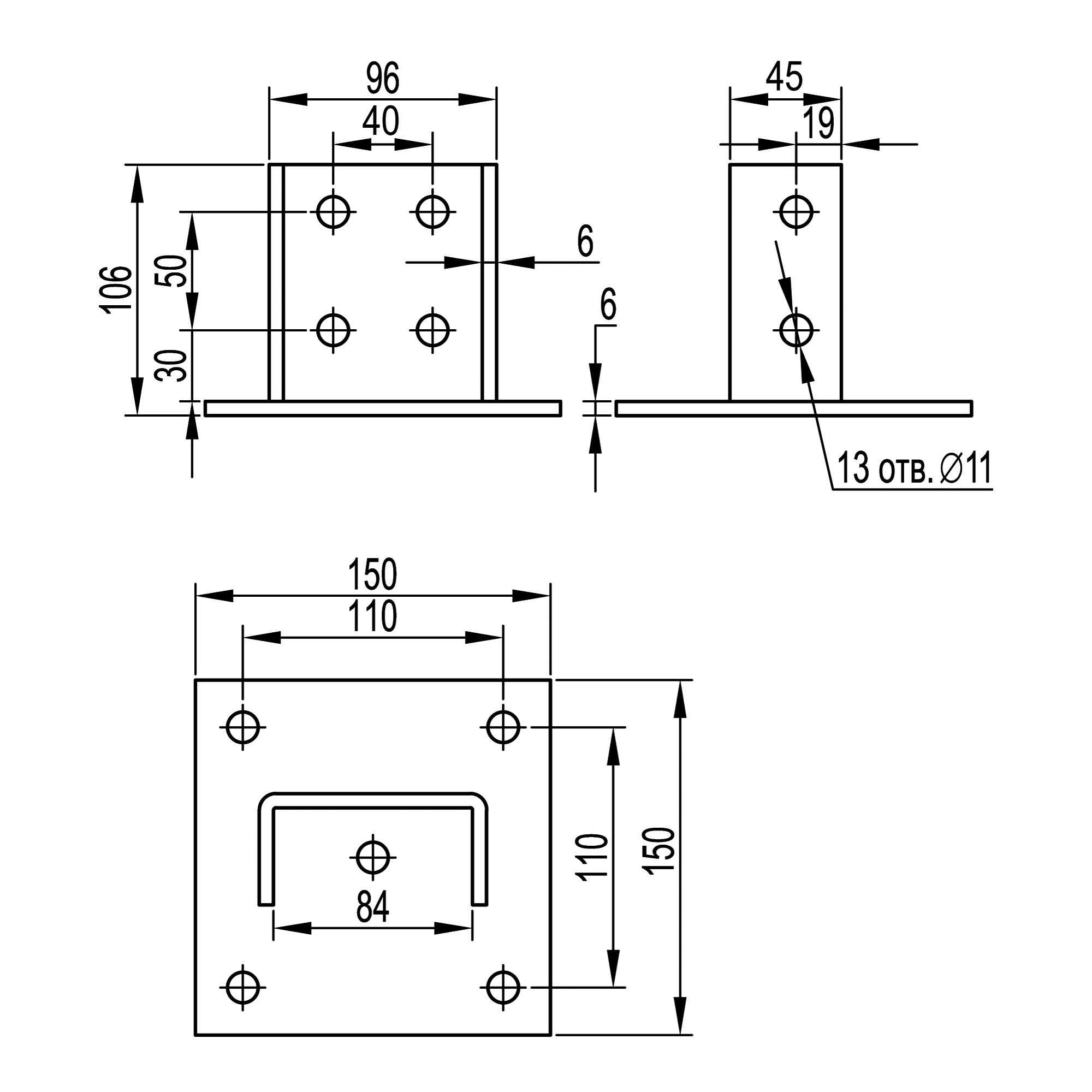

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
