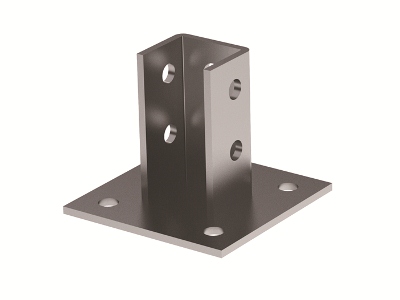

Vertical support SSH, thickness 5,0 mm, hot dip galvanized
Code: BSF4101HDZ
Vertical support SSH, thickness 5,0 mm, hot dip galvanized
Code: BSF4101HDZ
| Model | Mounting base |
| Suitable for | C-profile |
| Surface protection | Hot-dip galvanized |
| Material | Steel |
| With screw accessories | Yes |
| Height, mm | 120 |
| Width, mm | 120 |
| Length, mm | 100 |
| Thickness of metal sheet, mm | 5 |
| Type | Vertical supports and traverses |
| Material | Hot-dip galvanized |

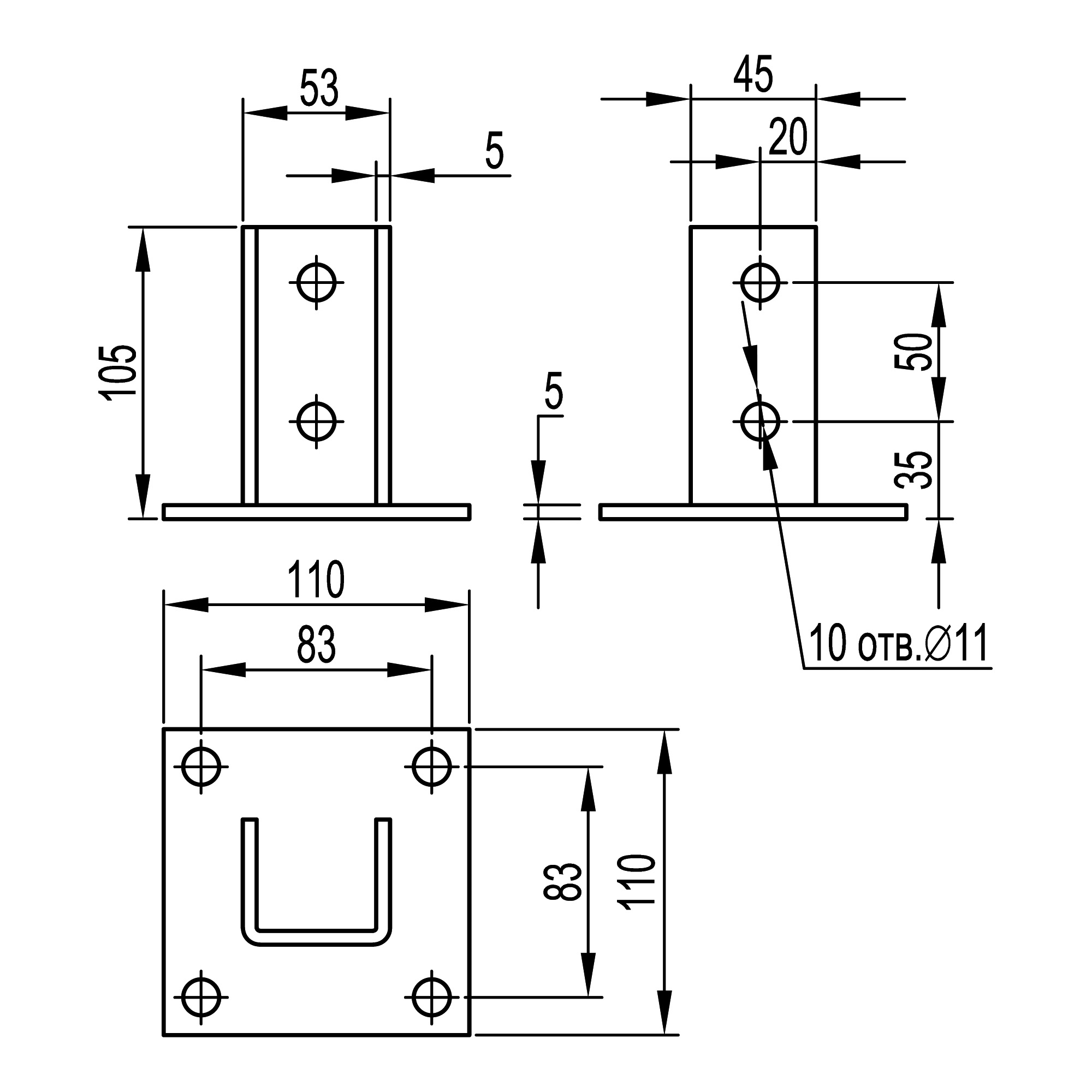

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
