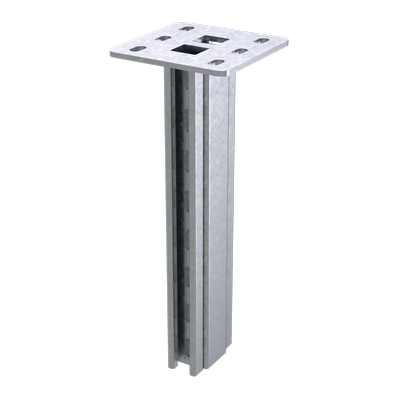

Reinforced double vertical bracket support 92х41, L3000, thickness 2,5 mm, hot dip galvanized

Code: BSD9230HDZ

Reinforced double vertical bracket support 92х41, L3000, thickness 2,5 mm, hot dip galvanized

Code: BSD9230HDZ
Colour Light grey
Width, mm 41
Model Pendant bar
Height, mm 92
Surface protection Hot-dip galvanized
Diameter, mm 10.5
Adjustable No
Hinging No
Material quality Other
Length, mm 3000
Material Steel
Thread size (metric) 10
Suitable for circuit integrity No
Material Hot-dip galvanized
Accessories

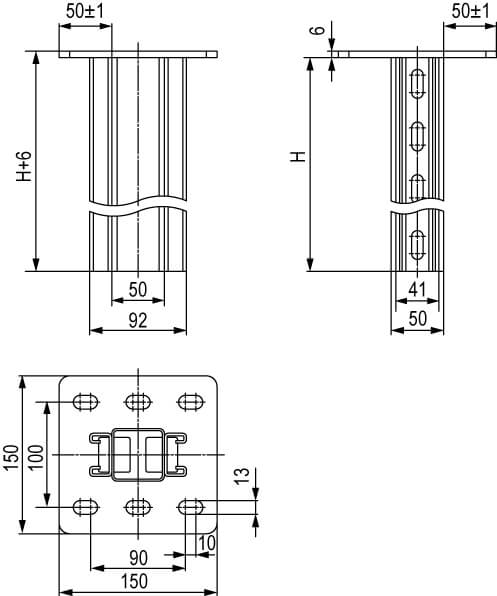

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
