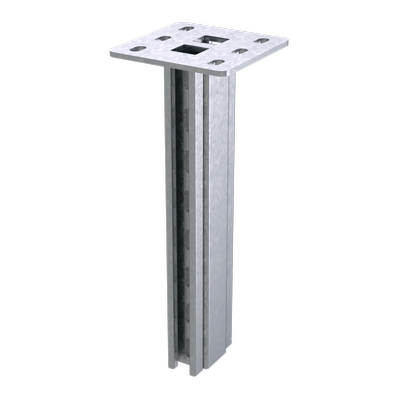

Reinforced double vertical bracket support 92х41, L1500, thickness 2,5 mm, hot dip galvanized

Code: BSD9215HDZ
Colour Light grey
Width, mm 41
Model Pendant bar
Height, mm 92
Surface protection Hot-dip galvanized
Diameter, mm 10.5
Adjustable No
Hinging No
Material quality Other
Length, mm 1500
Material Steel
Thread size metric (M..) 10
Suitable for circuit integrity No

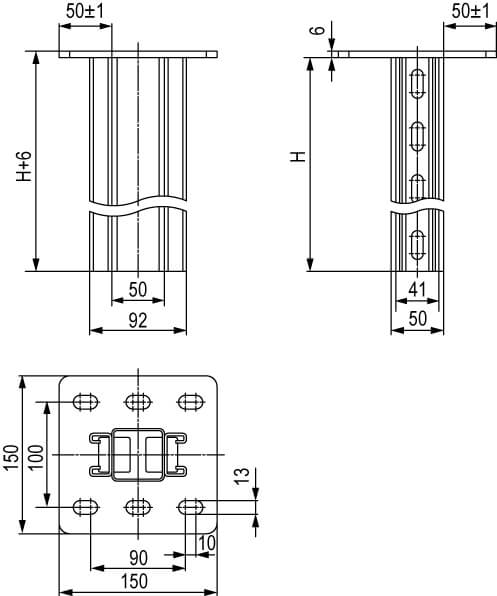

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
