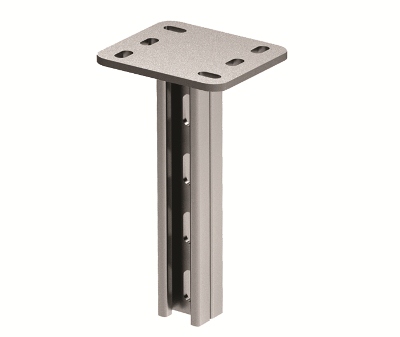

Double vertical bracket support 41х21, L200, thickness 2,5 mm, hot dip galvanized
Code: BSD2102HDZ
Double vertical bracket support 41х21, L200, thickness 2,5 mm, hot dip galvanized
Code: BSD2102HDZ
| Colour | Light grey |
| Width, mm | 120 |
| Model | Pendant bar |
| Height, mm | 120 |
| Surface protection | Hot-dip galvanized |
| Diameter, mm | 10.5 |
| Adjustable | No |
| Hinging | No |
| Material quality | Other |
| Length, mm | 200 |
| Material | Steel |
| Thread size (metric) | 10 |
| Suitable for circuit integrity | No |
| Width, mm | 120 |
| Length, mm | 200 |
| Thickness of metal sheet, mm | 2,5 |
| Type | Vertical supports and traverses |
| Material | Hot-dip galvanized |
Accessories

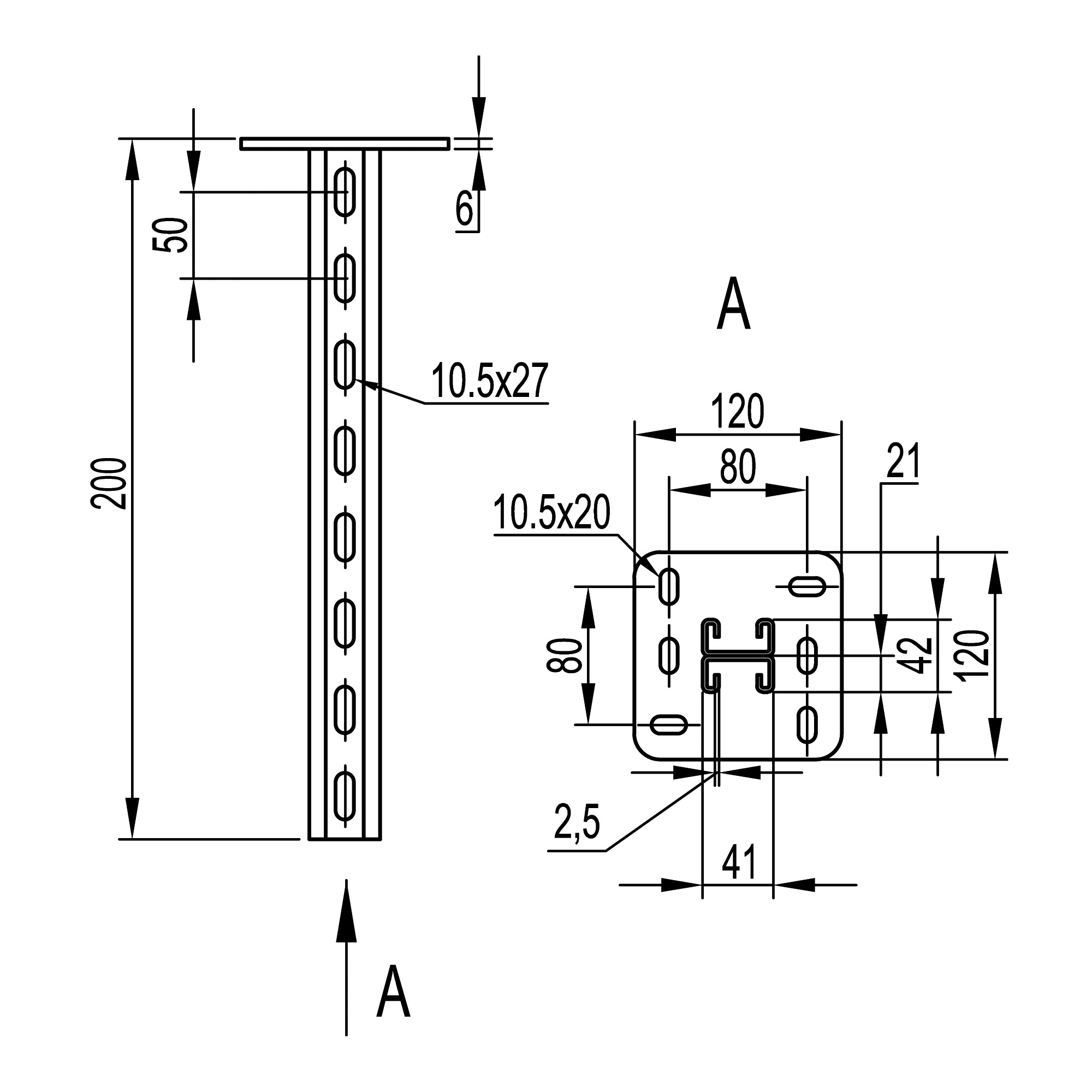

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
