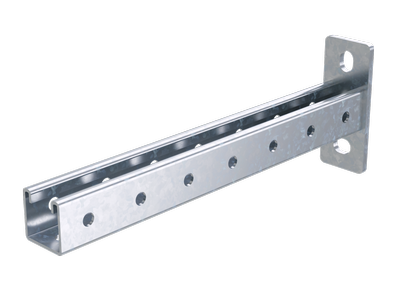

Bracket LAS, 41х21, L200, thickness 2,5 mm, hot dip galvanized
Code: BBP4120HDZ
Bracket LAS, 41х21, L200, thickness 2,5 mm, hot dip galvanized
Code: BBP4120HDZ
| Colour | Light grey |
| Width, mm | 50 |
| Model | Wall bracket |
| Height, mm | 125 |
| Surface protection | Hot-dip galvanized |
| Length, mm | 250 |
| Material | Steel |
| Load bearing capacity, kN | 4.8 |
| Suitable for circuit integrity | Yes |
| Length, mm | 256 |
| Thickness of metal sheet, mm | 2,5 |
| Type | Brackets |
| Material | Hot-dip galvanized |
Accessories
The accompanying goods

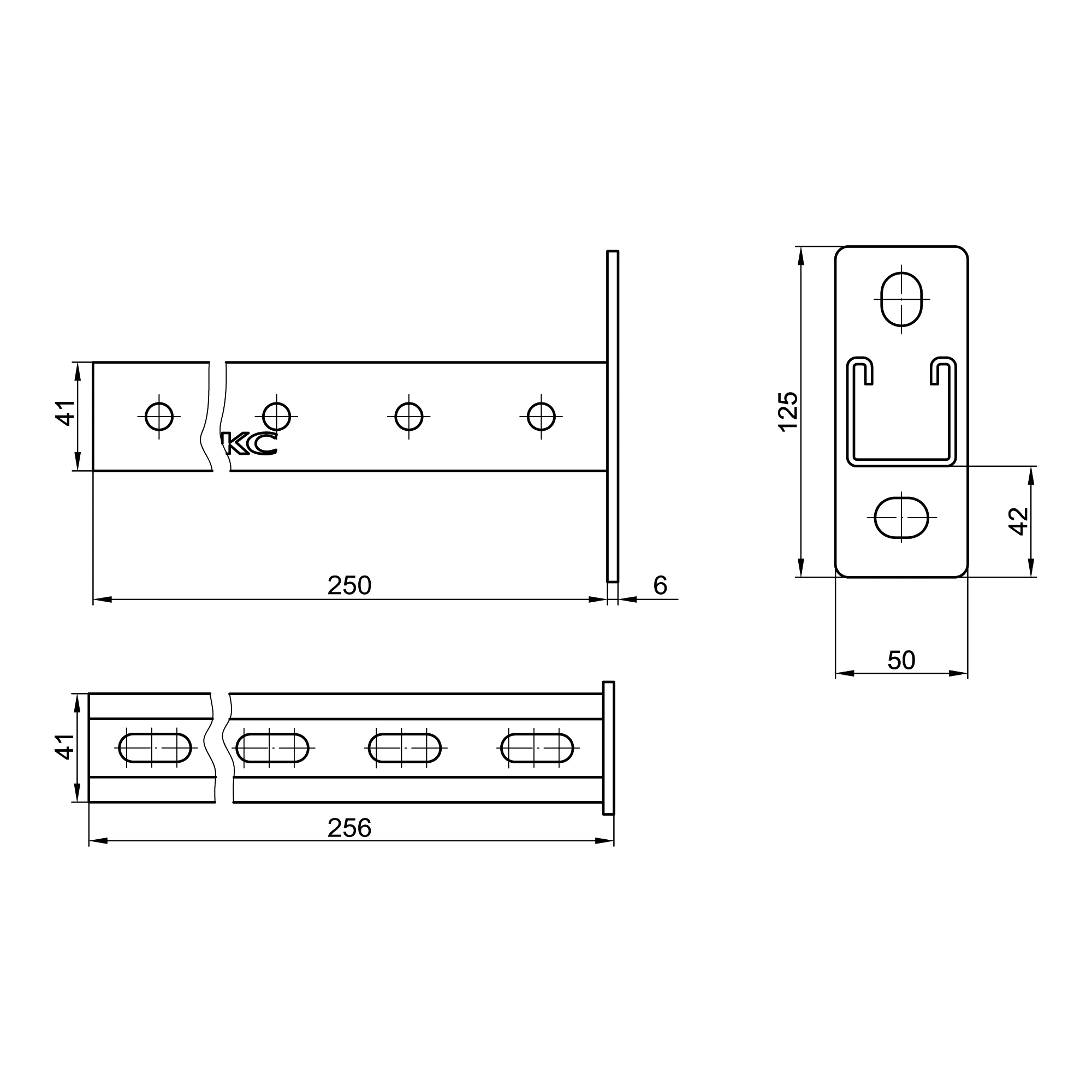

Drawings
