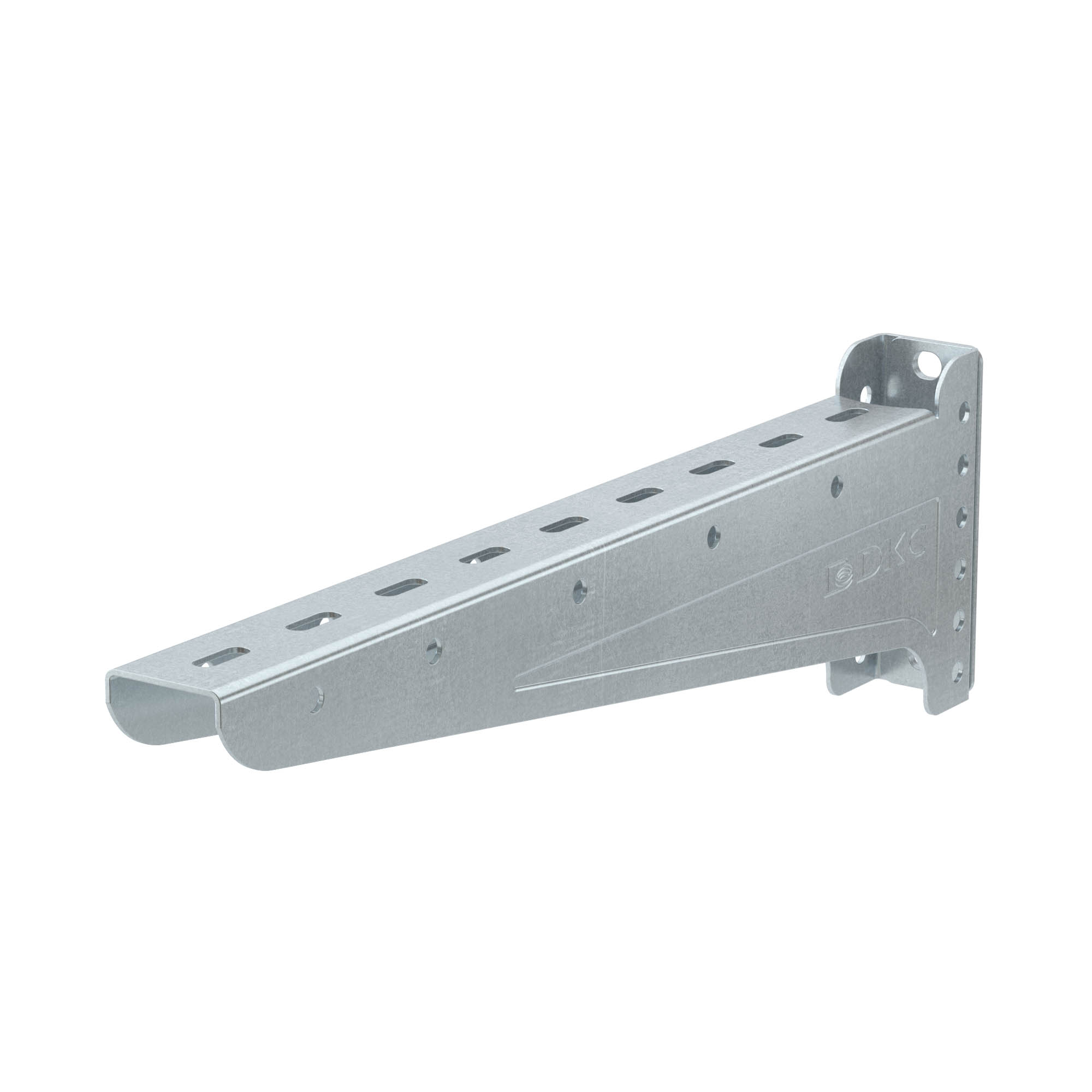

Universal reinforced bracket 200 mm, hot dip galvanized

Code: BBN6020HDZ
Universal reinforced bracket 200 mm, hot dip galvanized
Universal reinforced bracket 200 mm, hot dip galvanized

Universal reinforced bracket 200 mm, hot dip galvanized

Code: BBN6020HDZ
Colour Light grey
Width, mm 44
Height, mm 90
Surface protection Hot-dip galvanized
Length, mm 234
Material Steel
Load bearing capacity, kN 2.8
Model Wall- and profile console
Height, mm 90
Width, mm 44
Length, mm 234
Type Brackets
Material Hot-dip galvanized
Accessories
The accompanying goods

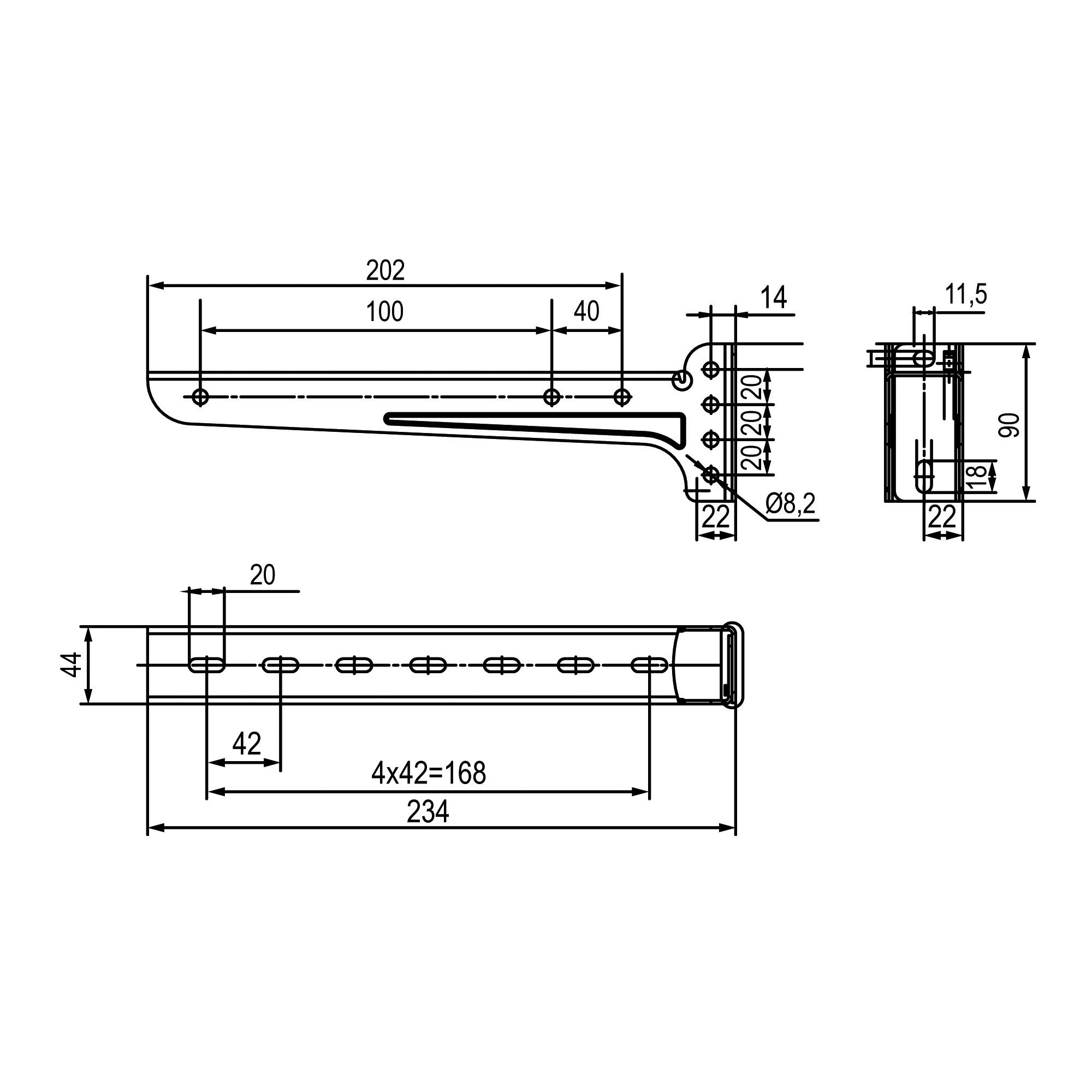

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
ZIP
1.4 Mb
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
RAR
313.39 Kb
ZIP
726.23 Kb
RAR
5.28 Mb
ZIP
16.63 Mb
RAR
13.65 Mb
