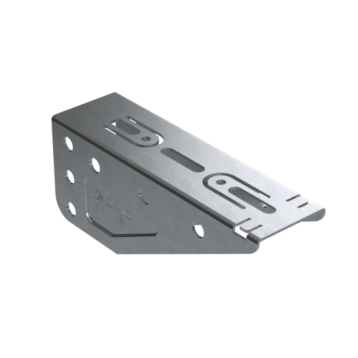

Bracket BM, L100, thickness 1,5 mm, hot dip galvanized
Code: BBM5010HDZ
Bracket BM, L100, thickness 1,5 mm, hot dip galvanized
Code: BBM5010HDZ
Colour | Light grey |
Width, mm | 44 |
Model | Profile console |
Height, mm | 125 |
Surface protection | Hot-dip galvanized |
Length, mm | 133 |
Material | Steel |
Load bearing capacity, kN | 3.4 |
Suitable for circuit integrity | Yes |
Height, mm | 41 |
Width, mm | 44 |
Length, mm | 157 |
Thickness of metal sheet, mm | 1,5 |
Type | Brackets |
Material | Hot-dip galvanized |
Accessories

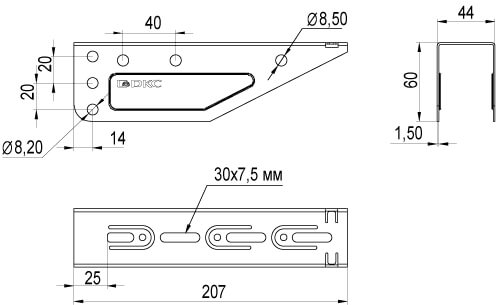

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
