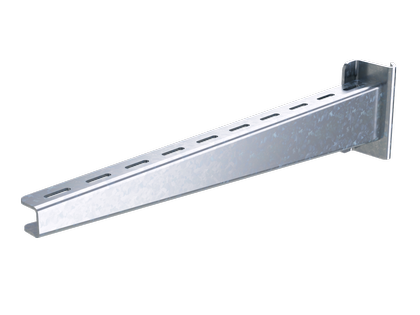

Reinforced bracket for I section BPM-50, L500, thickness 3,0 mm, hot dip galvanized

Code: BBH7550HDZ
Reinforced bracket for I section BPM-50, L500, thickness 3,0 mm, hot dip galvanized
Reinforced bracket for I section BPM-50, L500, thickness 3,0 mm, hot dip galvanized
Colour Light grey
Width, mm 56,8
Model Wall bracket
Height, mm 120
Surface protection Hot-dip galvanized
Material quality Other
Length, mm 549
Material Steel
Load bearing capacity, kN 2646
Suitable for circuit integrity No
Suitable for cable management system width, mm 500
Accessories
Holder for fireproof partitions for brackets BBH-60/70, ZL
Holder for fireproof partitions for brackets BBH-60/70, ZL
Code: BMZ1502ZL
Holder for fireproof partitions for brackets BBH-60/70
Holder for fireproof partitions for brackets BBH-60/70
Code: BMZ1502

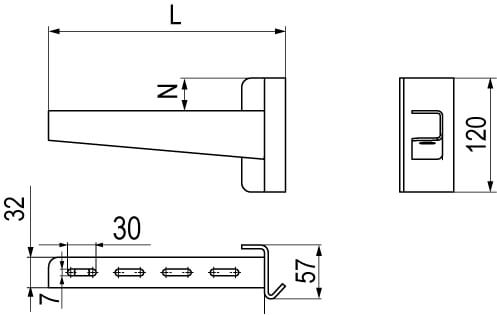

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
RAR
13.65 MB
ZIP
16.62 MB
ZIP
726.23 kB
RAR
313.39 kB
RAR
5.28 MB
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
ZIP
1.40 MB
