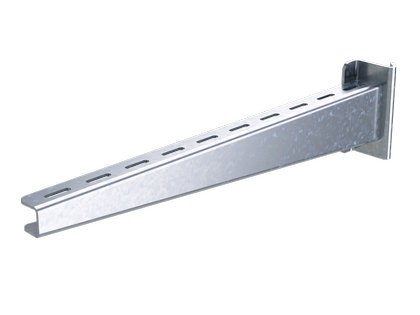

Reinforced bracket for I section BPM-50, L300, thickness 2,5 mm, hot dip galvanized

Code: BBH7530HDZ
Colour Light grey
Width, mm 56,8
Model Wall bracket
Height, mm 120
Surface protection Hot-dip galvanized
Material quality Other
Length, mm 349
Material Steel
Load bearing capacity, kN 3136
Suitable for circuit integrity No
Suitable for cable management system width, mm 300

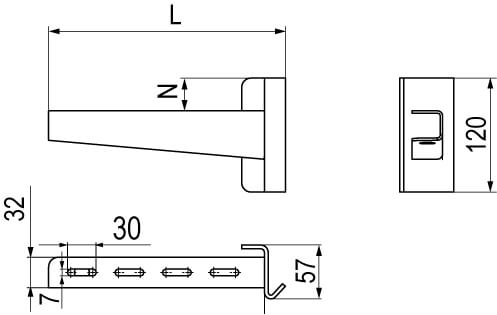

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
Certificates
Name Document
