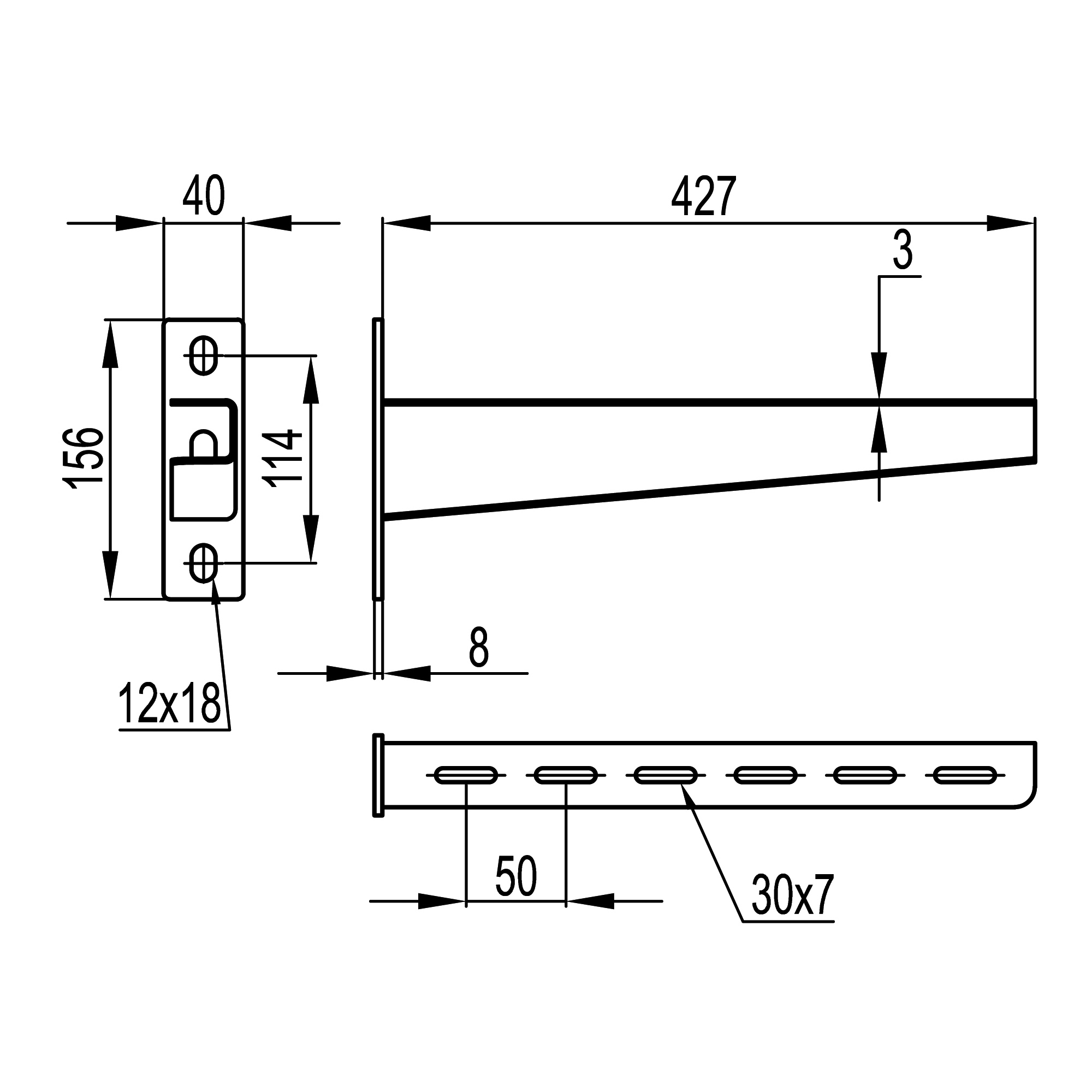

Heavy reinforced bracket, L400, thickness 3,0 mm, hot dip galvanized
Code: BBH7040HDZ
Heavy reinforced bracket, L400, thickness 3,0 mm, hot dip galvanized
Code: BBH7040HDZ
| Colour | Light grey |
| Width, mm | 40 |
| Model | Profile console |
| Height, mm | 150 |
| Surface protection | Hot-dip galvanized |
| Length, mm | 435 |
| Material | Steel |
| Load bearing capacity, kN | 4.16 |
| Suitable for circuit integrity | Yes |
| Width, mm | 40 |
| Length, mm | 435 |
| Type | Brackets |
| Material | Hot-dip galvanized |
Accessories
The accompanying goods
Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
