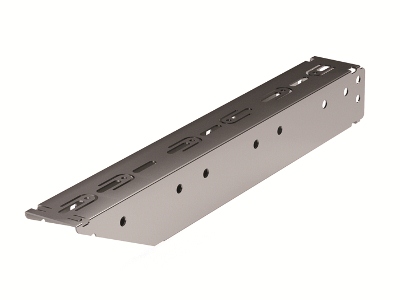

Bracket with quick hookup BBF, L600, thickness 1,5 mm, hot dip galvanized

Code: BBF5060HDZ

Bracket with quick hookup BBF, L600, thickness 1,5 mm, hot dip galvanized

Code: BBF5060HDZ
Colour Light grey
Width, mm 54
Model Clamping console
Height, mm 60
Surface protection Hot-dip galvanized
Length, mm 657
Material Steel
Load bearing capacity, kN 0.7
Suitable for circuit integrity Yes
Height, mm 60
Width, mm 54
Length, mm 657
Thickness of metal sheet, mm 1,5
Type Brackets
Material Hot-dip galvanized
Accessories

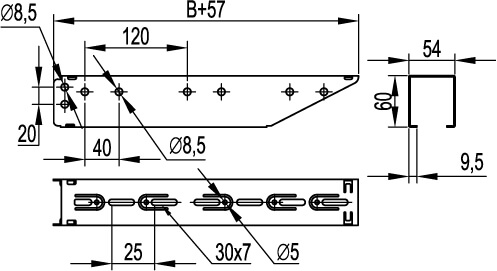

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
