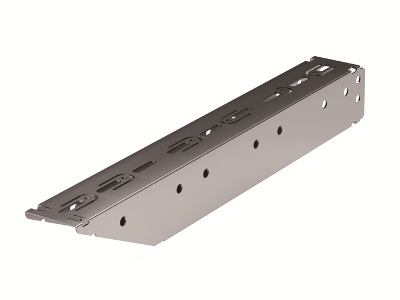

Bracket with quick hookup BBF, L300, thickness 1,5 mm, hot dip galvanized
Code: BBF5030HDZ
Bracket with quick hookup BBF, L300, thickness 1,5 mm, hot dip galvanized
Code: BBF5030HDZ
| Colour | Light grey |
| Width, mm | 54 |
| Model | Clamping console |
| Height, mm | 60 |
| Surface protection | Hot-dip galvanized |
| Length, mm | 357 |
| Material | Steel |
| Load bearing capacity, kN | 1.9 |
| Suitable for circuit integrity | Yes |
| Height, mm | 60 |
| Width, mm | 54 |
| Length, mm | 357 |
| Thickness of metal sheet, mm | 1,5 |
| Type | Brackets |
| Material | Hot-dip galvanized |
Accessories

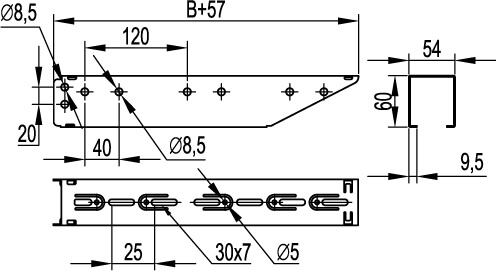

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
