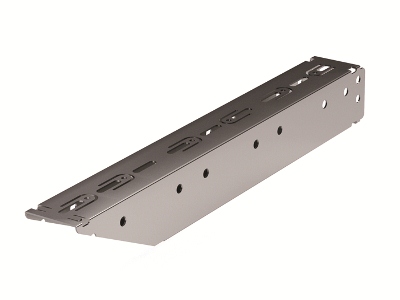

Bracket with quick hookup BBF, L200, thickness 1,5 mm, hot dip galvanized

Code: BBF5020HDZ
Bracket with quick hookup BBF, L200, thickness 1,5 mm, hot dip galvanized
Bracket with quick hookup BBF, L200, thickness 1,5 mm, hot dip galvanized
Code: BBF5020HDZ
  • To ask a question
  • Characteristics
  • Accessories

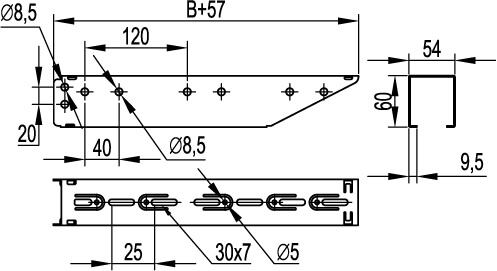

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Colour Light grey
Width, mm 54
Model Clamping console
Height, mm 60
Surface protection Hot-dip galvanized
Length, mm 257
Material Steel
Load bearing capacity, kN 2.3
Suitable for circuit integrity Yes
Material quality Steel galvanised
Height, mm 60
Width, mm 54
Length, mm 257
Thickness of metal sheet, mm 1,5
Type Brackets
Material Hot-dip galvanized
