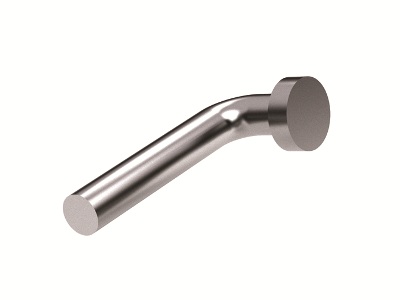

Locking pin for bracket BBF, hot dip galvanized
Code: BBF5001HDZ
Locking pin for bracket BBF, hot dip galvanized
Code: BBF5001HDZ
| Model | Clamp piece |
| Surface protection | Hot-dip galvanized |
| Material | Steel |
| With screw accessories | Yes |
| Height, mm | 19 |
| Width, mm | 12 |
| Length, mm | 46 |
| Thickness of metal sheet, mm | 7 |
| Type | Fittings |
| Material | Hot-dip galvanized |
Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
