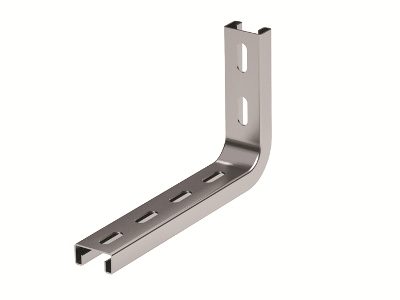

Light bracket DW, L200, thickness 2,5 mm, hot dip galvanized

Code: BBC3020HDZ
Light bracket DW, L200, thickness 2,5 mm, hot dip galvanized
Light bracket DW, L200, thickness 2,5 mm, hot dip galvanized

Light bracket DW, L200, thickness 2,5 mm, hot dip galvanized

Code: BBC3020HDZ
Colour Light grey
Width, mm 41
Model Wall bracket
Height, mm 140
Surface protection Hot-dip galvanized
Length, mm 242
Material Steel
Load bearing capacity, kN 1.2
Suitable for circuit integrity Yes
Length, mm 240
Thickness of metal sheet, mm 2,5
Type Brackets
Material Hot-dip galvanized
Accessories

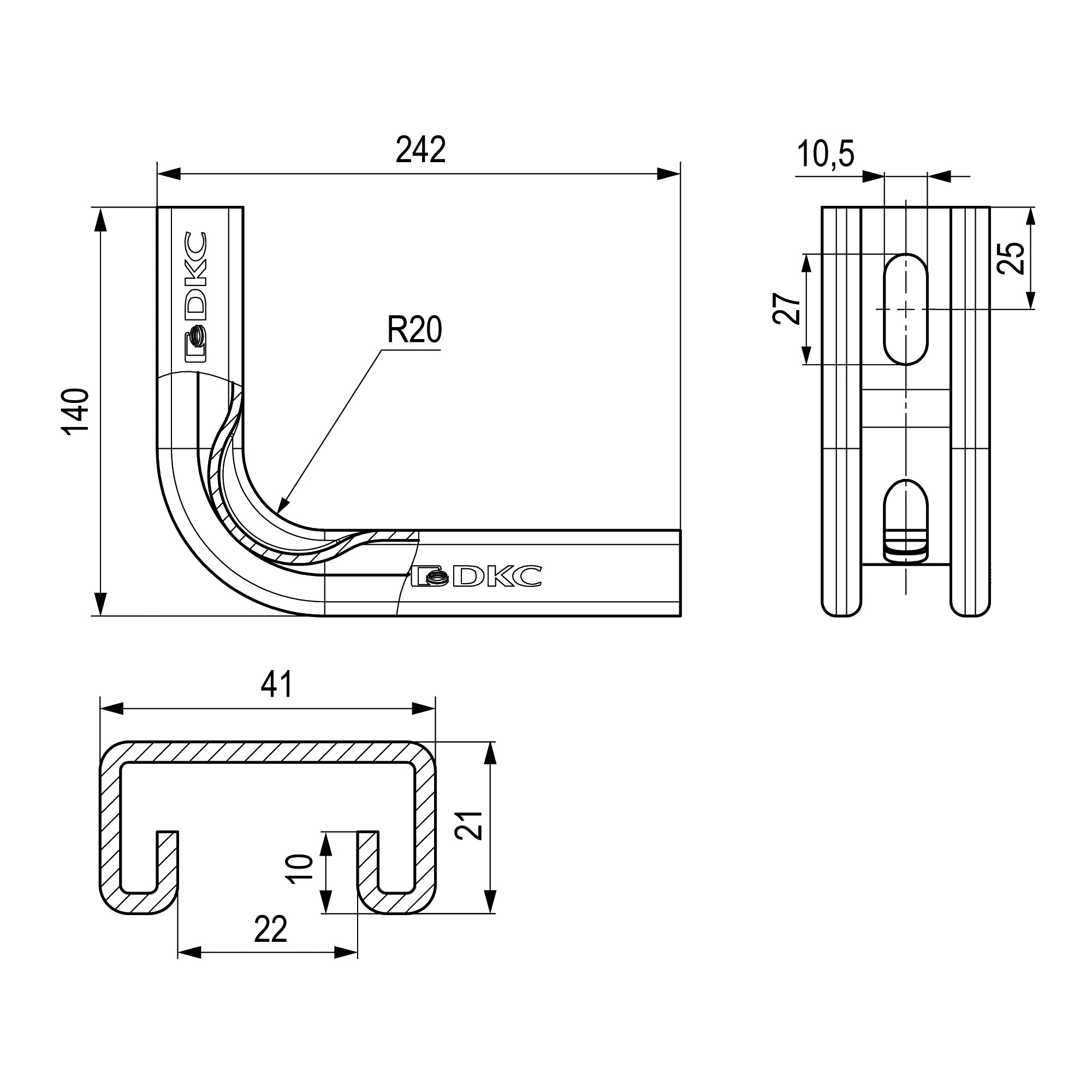

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
ZIP
1.4 Mb
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
RAR
313.39 Kb
ZIP
726.23 Kb
RAR
5.28 Mb
ZIP
16.63 Mb
RAR
13.65 Mb
