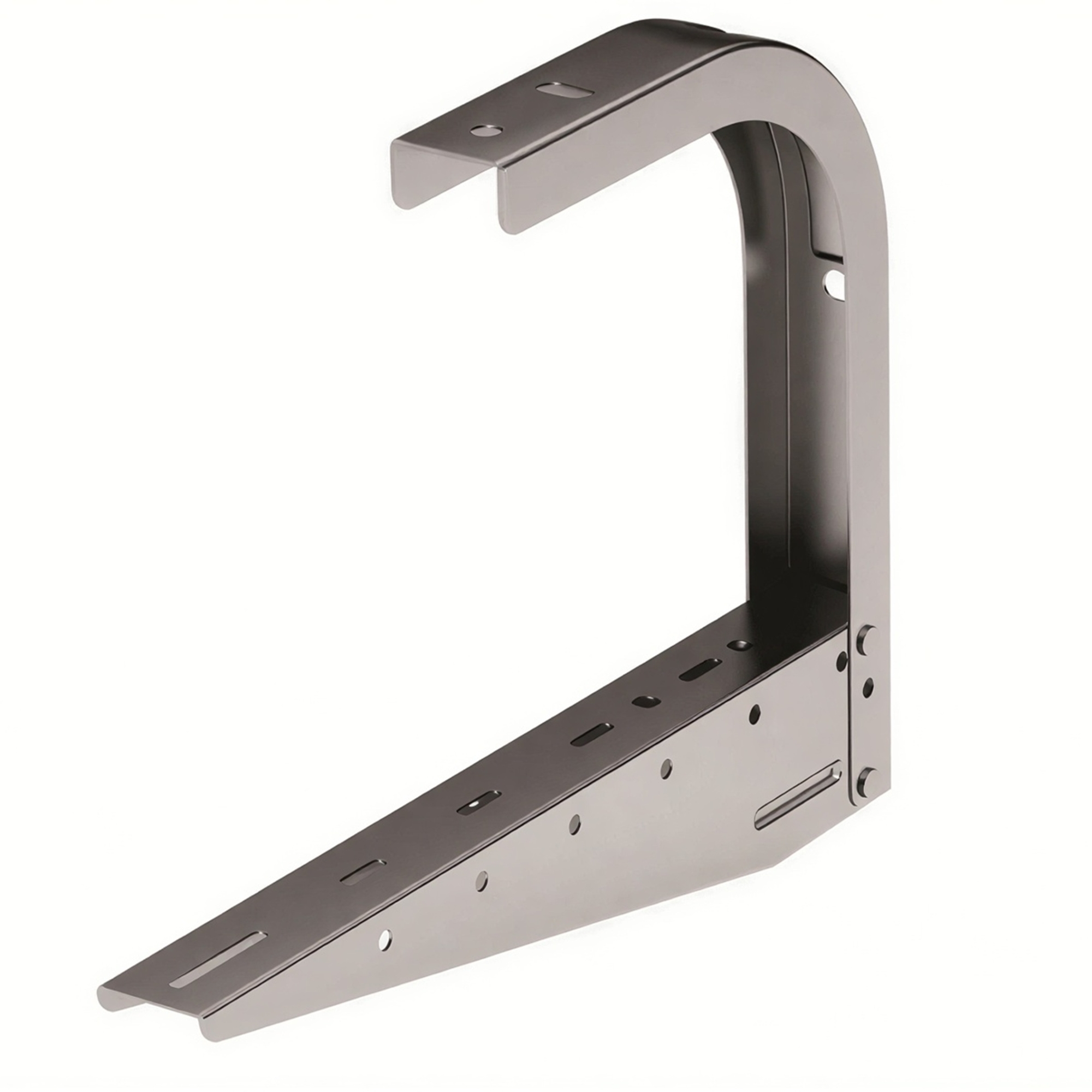

Overhead bracket CS, L500, thickness 1,5 mm, hot dip galvanized
Code: BBA2050HDZ
Overhead bracket CS, L500, thickness 1,5 mm, hot dip galvanized
Code: BBA2050HDZ
| Model | Face out bracket (C-bracket) |
| Material | Steel |
| Load bearing capacity, N | 637 |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Tray mounting | Screwable |
| Suitable for circuit integrity | No |
| Length, mm | 535 |
| Thickness of metal sheet, mm | 1,5 |
| Type | Brackets |
| Material | Hot-dip galvanized |
Accessories

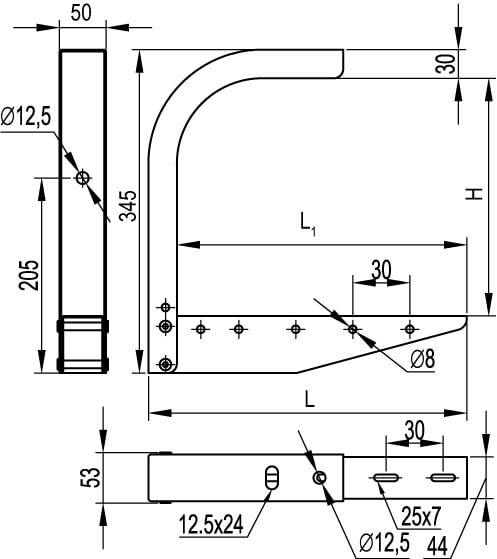

Drawings
