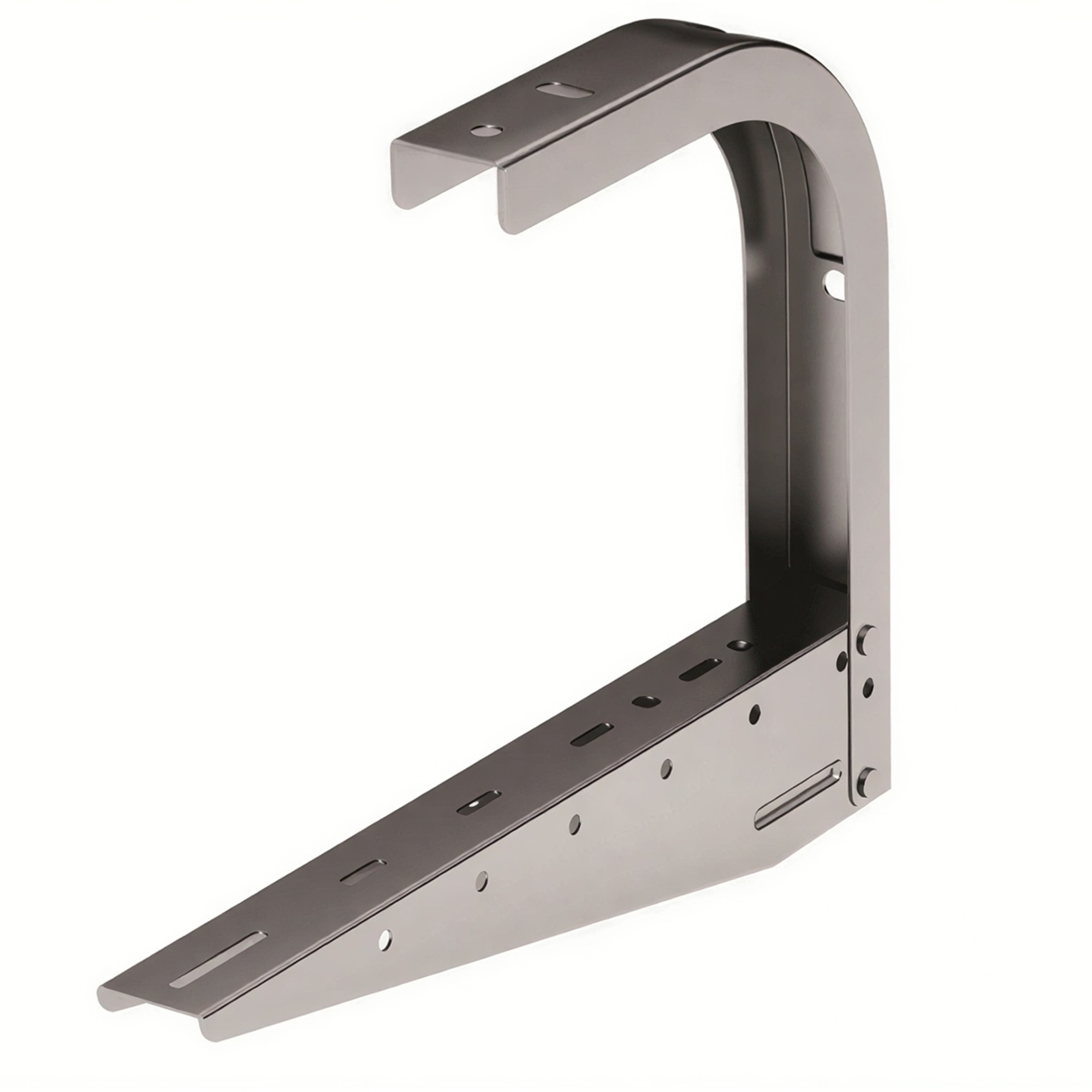

Overhead bracket CS, L200, thickness 1,5 mm, hot dip galvanized

Code: BBA2020HDZ
Overhead bracket CS, L200, thickness 1,5 mm, hot dip galvanized
Overhead bracket CS, L200, thickness 1,5 mm, hot dip galvanized
Length, mm 235
Thickness of metal sheet, mm 1,5
Model Face out bracket (C-bracket)
Surface protection Hot-dip galvanized
Material quality Other
Material Steel
Load bearing capacity, N 1176
Suitable for wire mesh tray No
Suitable for cable ladder No
Suitable for cable duct Yes
Tray mounting Screwable
Suitable for circuit integrity No

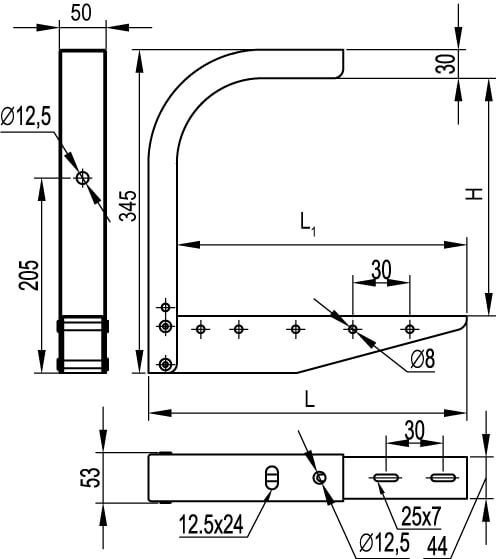

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
RAR
13.65 MB
ZIP
16.62 MB
ZIP
726.23 kB
RAR
313.39 kB
RAR
5.28 MB
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
ZIP
1.40 MB
