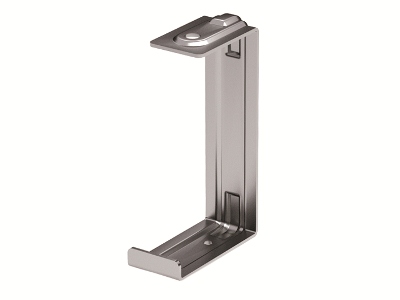

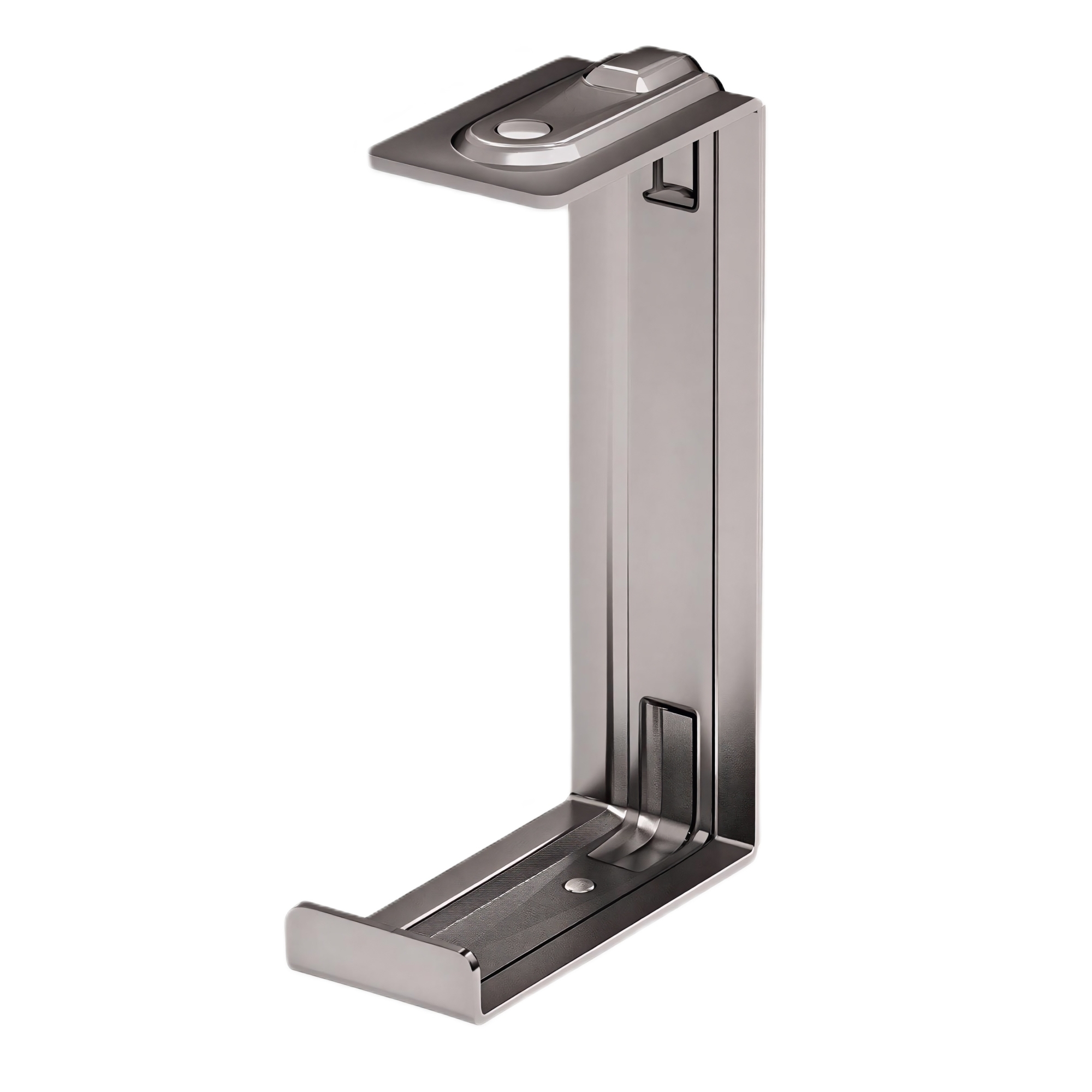

Overhead bracket CS, L100, thickness 3,0 mm, hot dip galvanized

Code: BBA1010HDZ
Overhead bracket CS, L100, thickness 3,0 mm, hot dip galvanized
Overhead bracket CS, L100, thickness 3,0 mm, hot dip galvanized
Model Face out bracket (C-bracket)
Surface protection Hot-dip galvanized
Material quality Other
Material Steel
Load bearing capacity, N 617.4
Suitable for wire mesh tray No
Suitable for cable ladder No
Suitable for cable duct Yes
Tray mounting Screwable
Suitable for circuit integrity No
Length, mm 115
Thickness of metal sheet, mm 3
Type Brackets

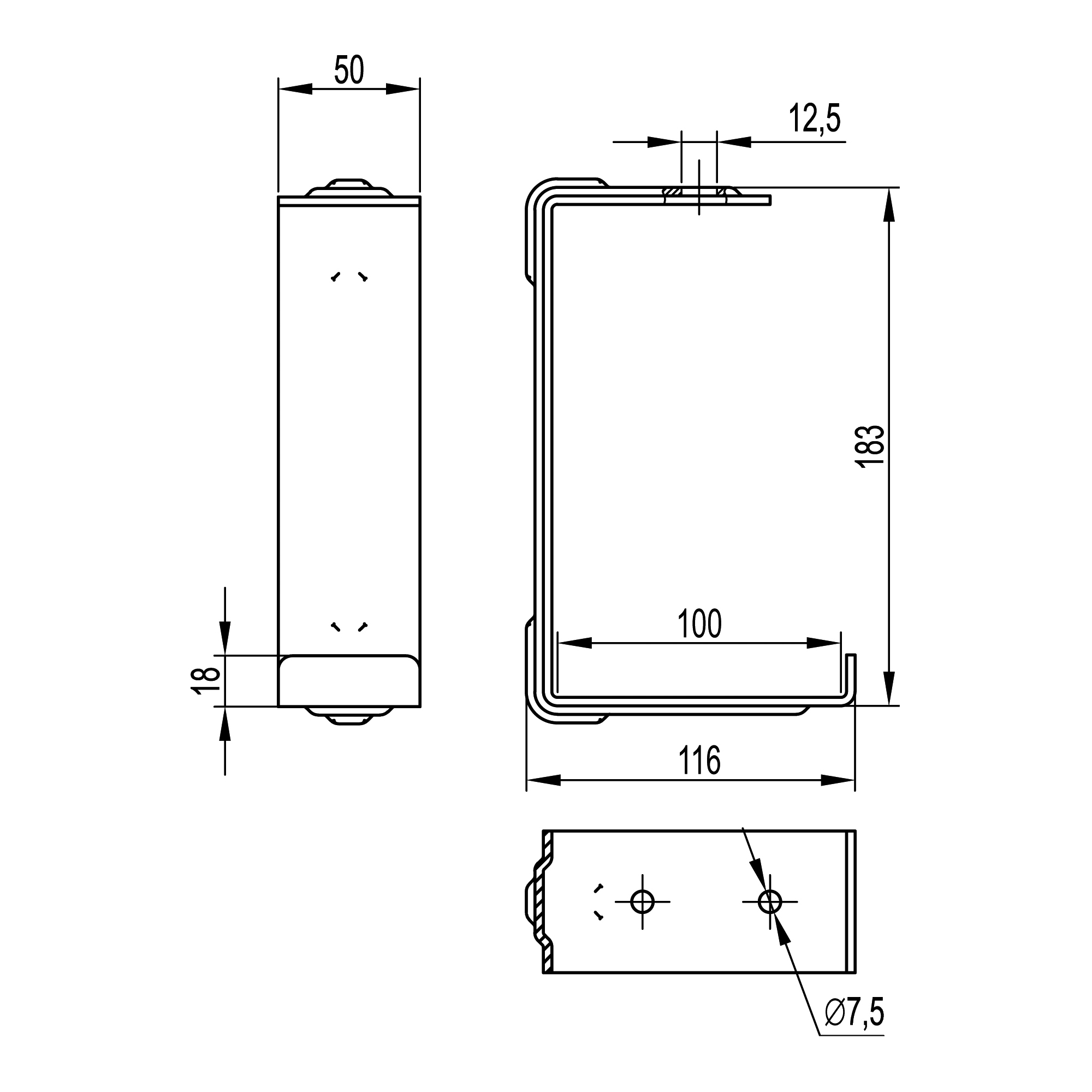

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
RAR
13.65 MB
ZIP
16.63 MB
ZIP
726.23 kB
RAR
313.39 kB
RAR
5.28 MB
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
ZIP
1.40 MB
