Overhead bracket CS, L50, thickness 3,0 mm, hot dip galvanized

Code: BBA1005HDZ
Overhead bracket CS, L50, thickness 3,0 mm, hot dip galvanized
Overhead bracket CS, L50, thickness 3,0 mm, hot dip galvanized
Model Face out bracket (C-bracket)
Suitable for cable ladder No
Suitable for cable duct Yes
Tray mounting Screwable
Surface protection Hot-dip galvanized
Material quality Other
Material Steel
Load bearing capacity, N 666.4
Suitable for wire mesh tray No
Suitable for circuit integrity No
Length, mm 68
Thickness of metal sheet, mm 3

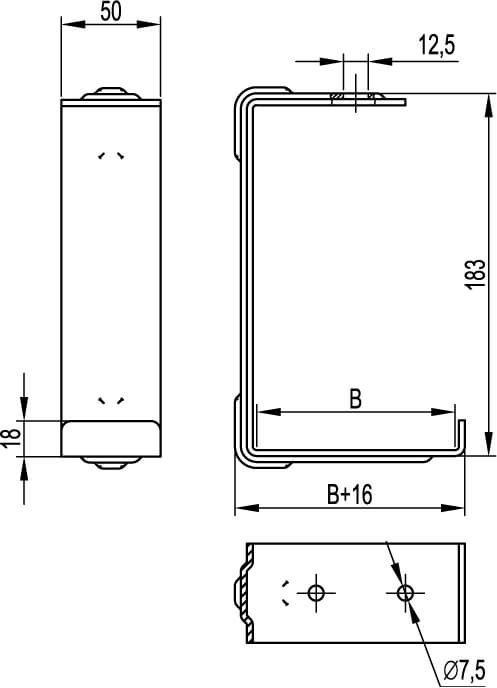

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
RAR
13.65 MB
ZIP
16.62 MB
ZIP
726.23 kB
RAR
313.39 kB
RAR
5.28 MB
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
ZIP
1.40 MB
