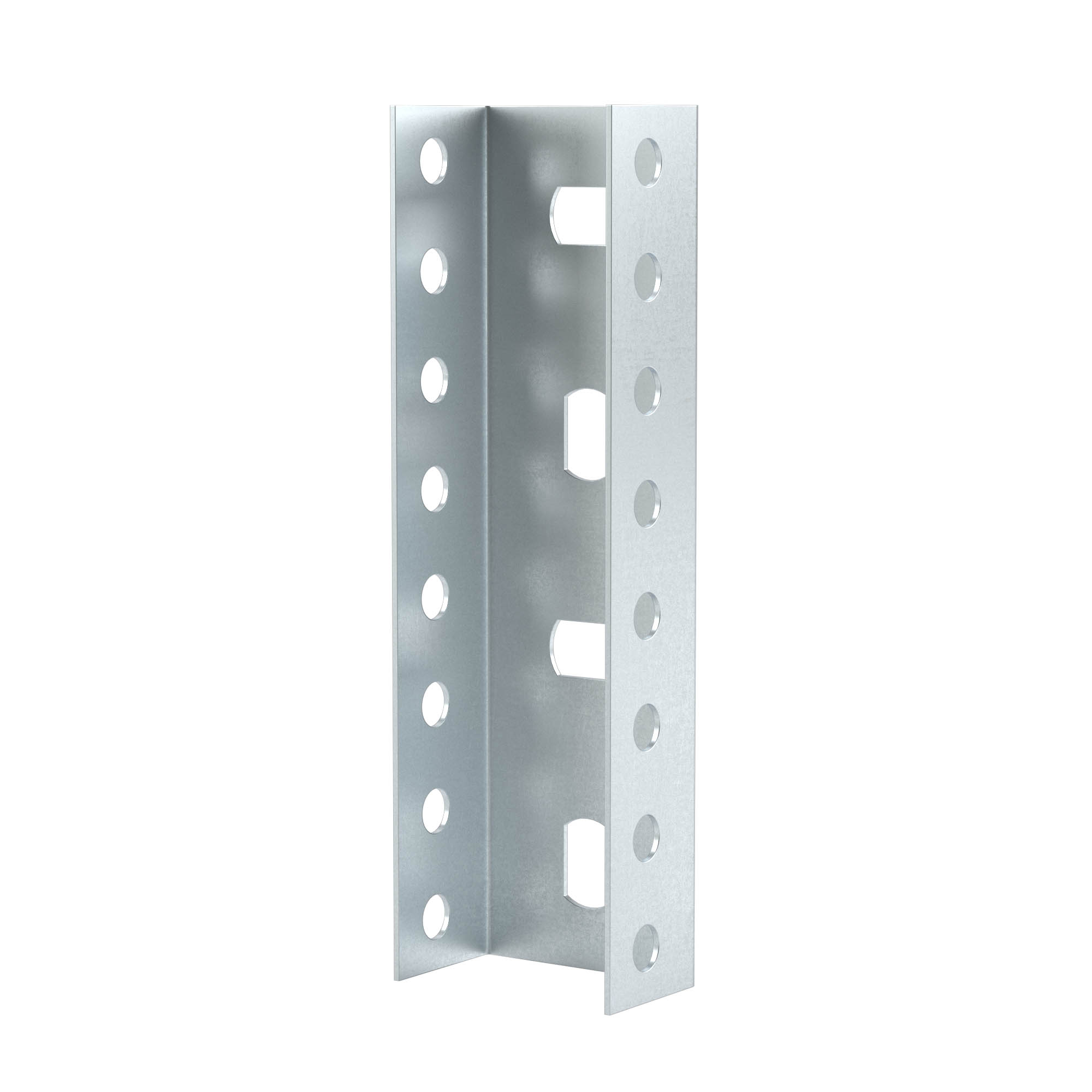

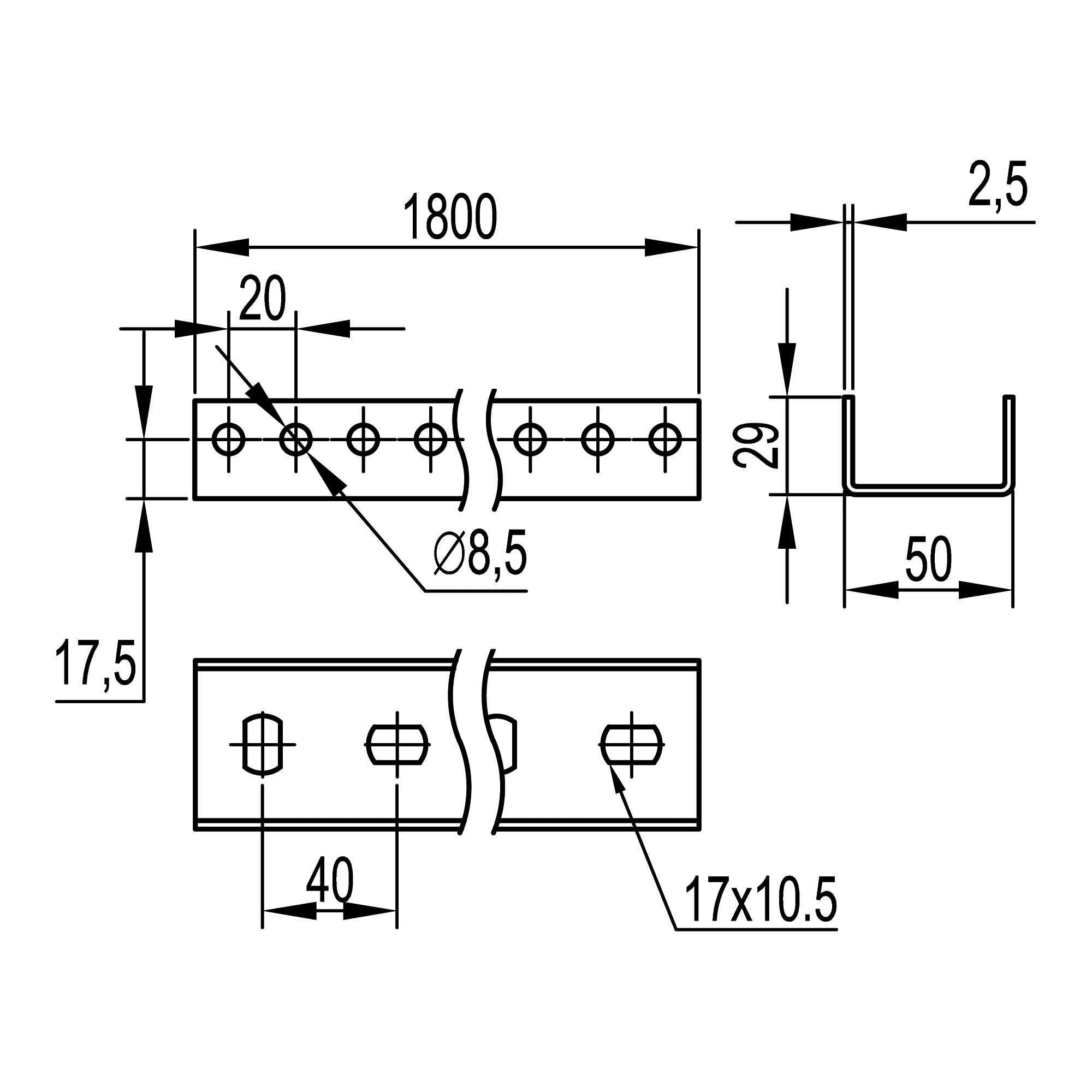

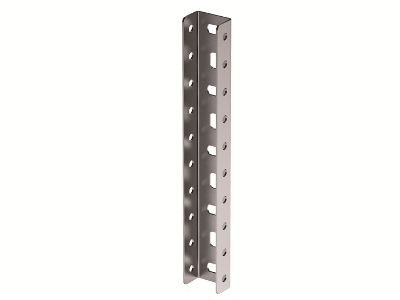

| Model | Singular profile |
| Height, mm | 29 |
| Surface protection | Hot-dip galvanized |
| Material thickness, mm | 2.5 |
| With toothing | Yes |
| Length, mm | 1800 |
| Material | Steel |
| Type of perforation | 3 sides punched |
| Profile shape | U-profile |
| Slit width, mm | 17 |
| Hole width, mm | 10.5 |
| Snap-off | Yes |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Length, mm | 1800 |
| Width, mm | 50 |
| Height, mm | 29 |
| Material | Hot-dip galvanized |
| Thickness of metal sheet, mm | 2.5 |
| Type | Mounting rails |
