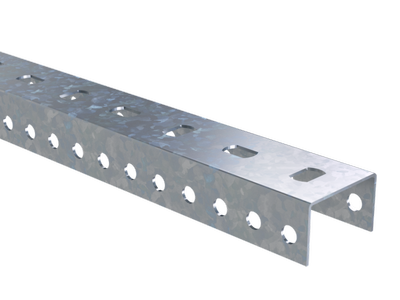

U-profile PSL, L800, thickness 1,5 mm, hot dip galvanized
Code:
BPL2908HDZ
U-profile PSL, L800, thickness 1,5 mm, hot dip galvanized
Code:
BPL2908HDZ
Model | Singular profile |
Height, mm | 29 |
Surface protection | Hot-dip galvanized |
Material thickness, mm | 1.5 |
With toothing | Yes |
Length, mm | 800 |
Material | Steel |
Type of perforation | 3 sides punched |
Profile shape | U-profile |
Slit width, mm | 17 |
Hole width, mm | 10.5 |
Snap-off | Yes |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Length, mm | 800 |
Width, mm | 48 |
Height, mm | 29 |
Material | Hot-dip galvanized |
Thickness of metal sheet, mm | 1.5 |
Type | Mounting rails |
Accessories
Analogs

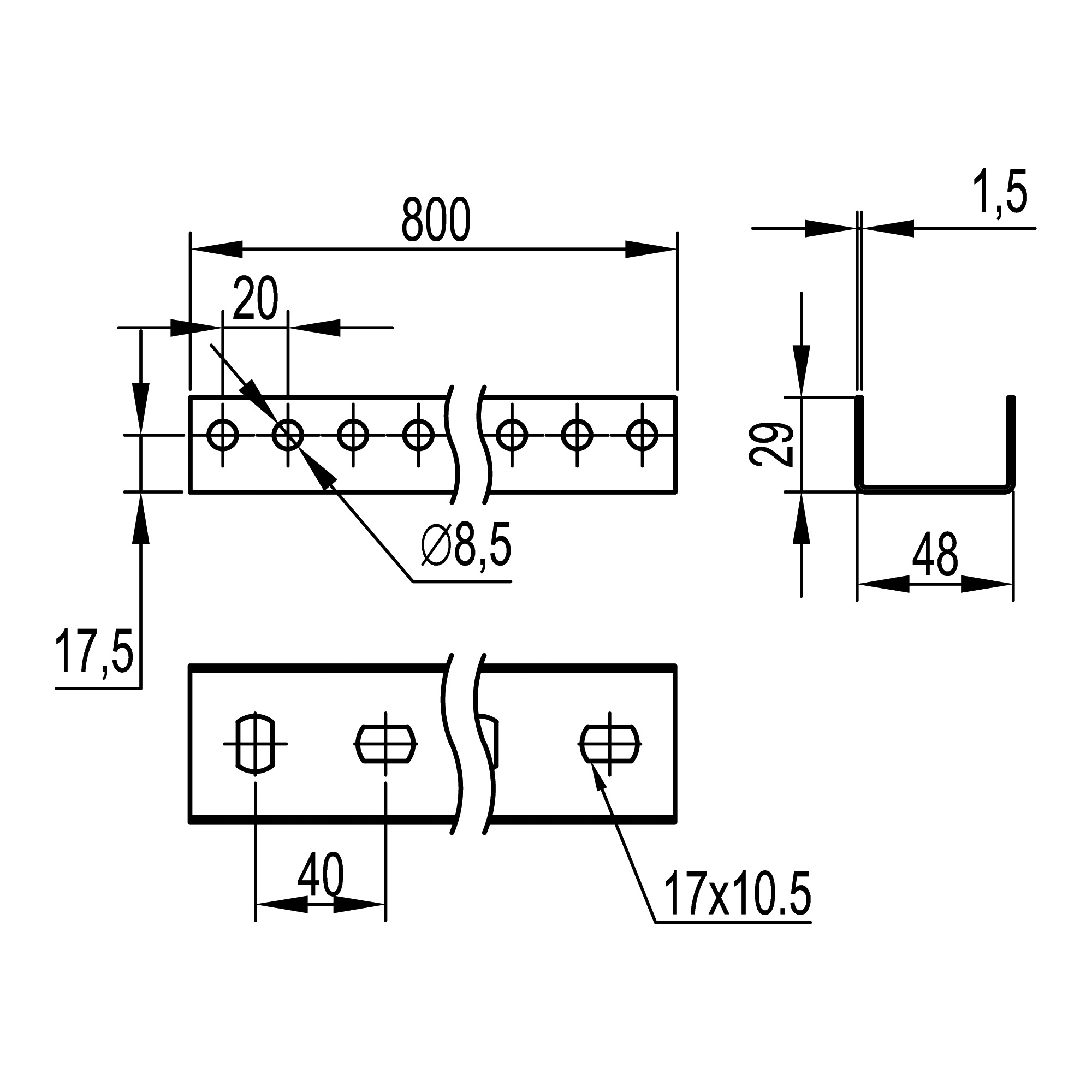

Drawings
