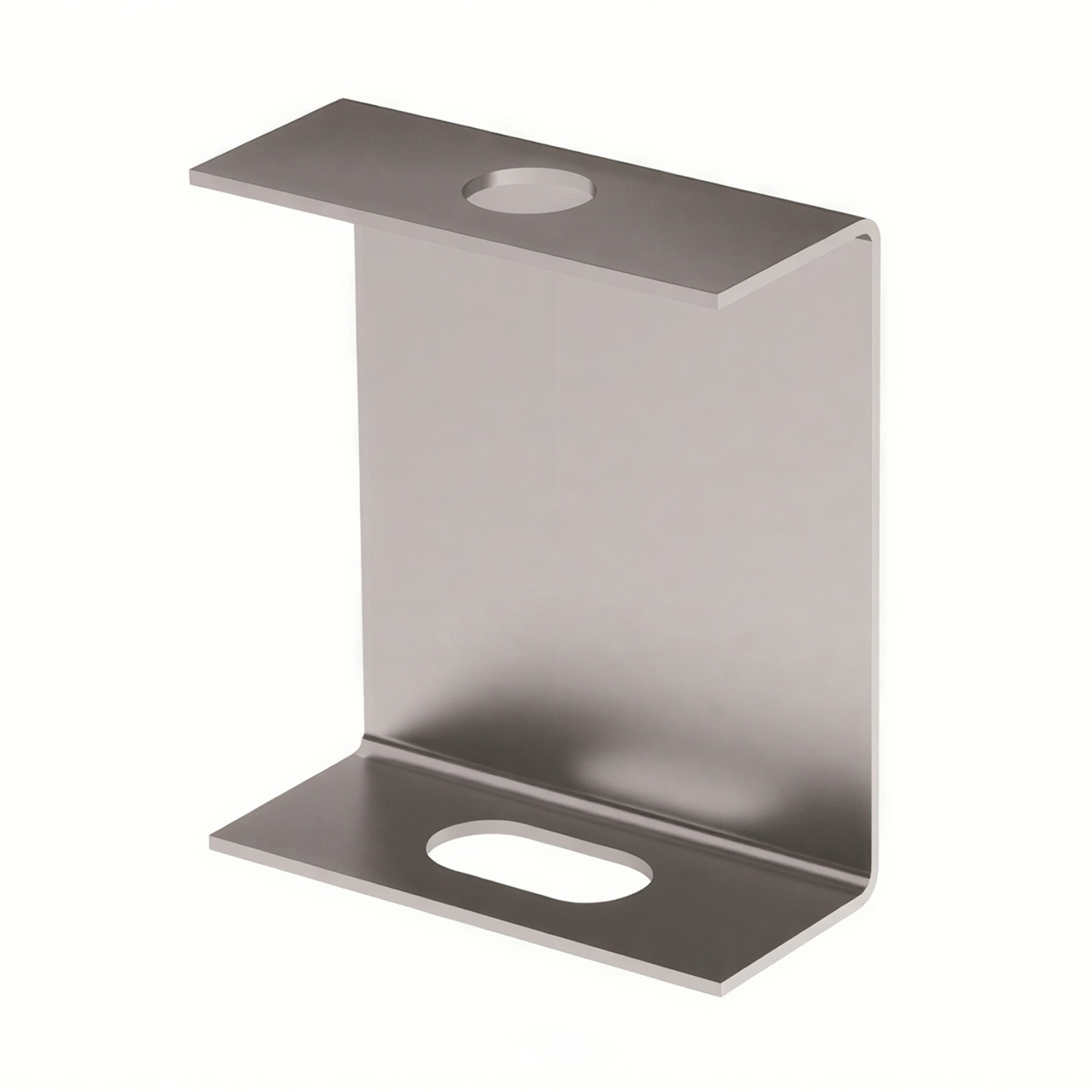

Lightweight bracket PL, thickness 2,0 mm
Code: BML1007
Lightweight bracket PL, thickness 2,0 mm
Code: BML1007
| Colour | Light grey |
| Width, mm | 60 |
| Model | Pendant bar |
| Height, mm | 70 |
| Surface protection | Sendzimir galvanized |
| Diameter, mm | 12.5 |
| Adjustable | No |
| Hinging | No |
| Material quality | Other |
| Length, mm | 27 |
| Material | Steel |
| Load bearing capacity, N | 588 |
| Thread size (metric) | 12 |
| Suitable for circuit integrity | No |
| Height, mm | 70 |
| Width, mm | 60 |
| Length, mm | 27 |
| Thickness of metal sheet, mm | 2 |
| Type | Fittings |
| Material | Pre-galvanized steel |
Analogs
The accompanying goods

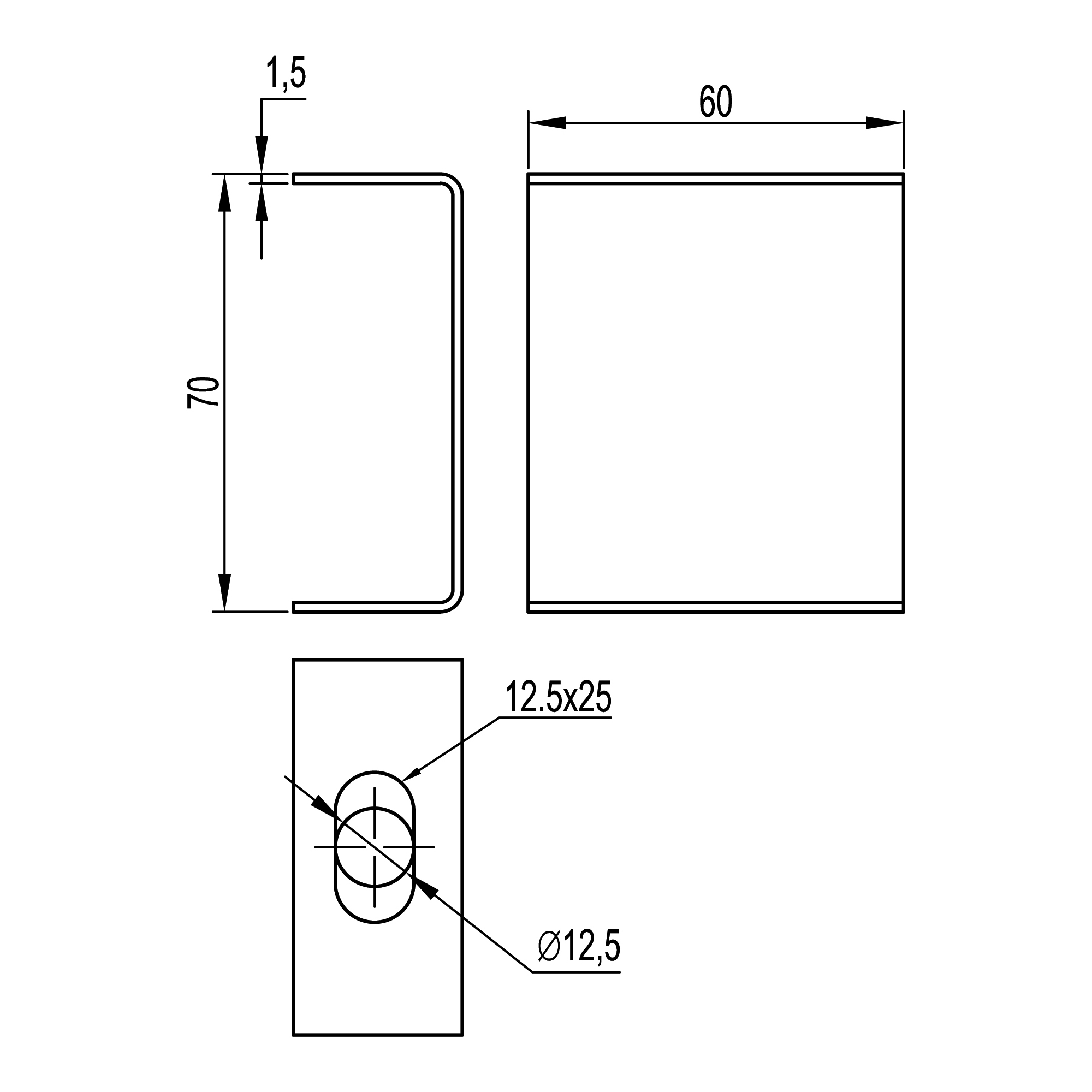

Drawings
